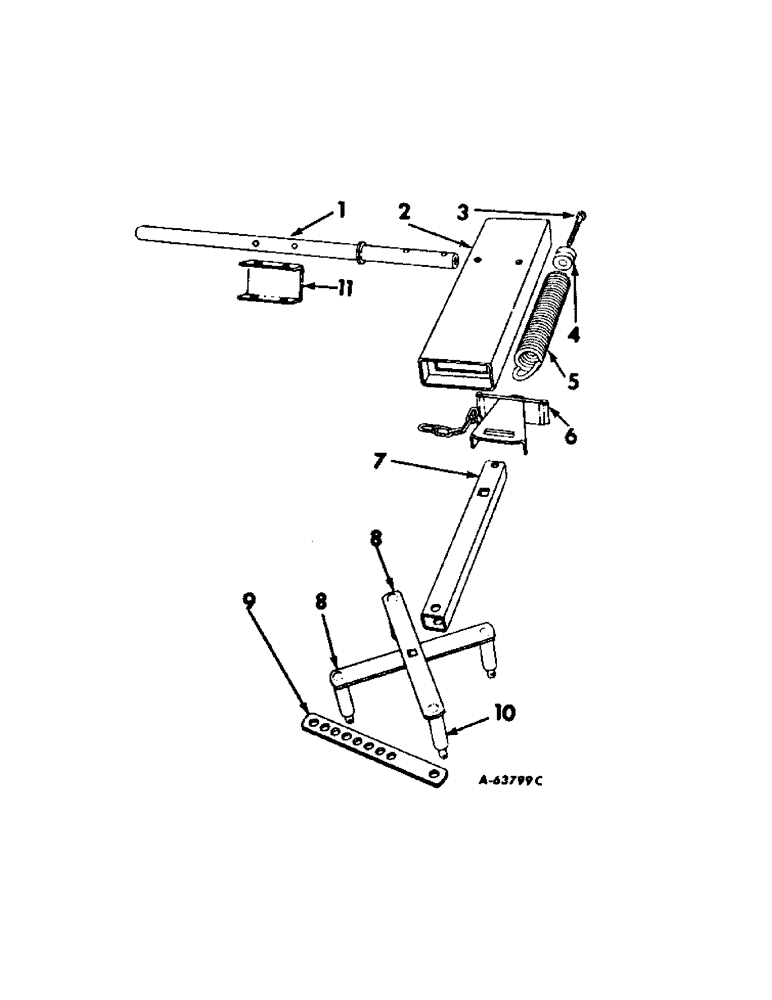

Запчасти Case IH 15 (B-06) - STEERING ARM

1

665636R21

PIVOT

ASSY, steering

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 type 1

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

23366R1

WASHER, 11-11/32 x 2-1/2 x 16 ga C-Z

1шт.

21628R1

PIN

1/8 x 3/4 C-Z self-open cot

1шт.

2

665692R91

CHANNEL

ASSY, steering spring

1шт.

3

665697R1

BOLT, spring

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

4

590001R1

PLUG

spring

1шт.

5

659960R1

SPRING

steering

1шт.

6

665783R91

GUIDE

ARM ASSY, steering adjusting

1шт.

7

665781R11

CHANNEL

ARM ASSY, steering

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

8

668077R91

FORK

ASSY, steering

2шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

586591R1

COTTER PIN

PIN, quick attachable cot

2шт.

20869R1

WASHER

.531 x .875 x .054

4шт.

9

665698R1

STRAP

RETAINER, steering fork

1шт.

10

665708R1

ROLLER

fork

4шт.

11

670704R1

EXTENSION, steering pipe pivot, for 27 baler

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2-13 x 2-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

2шт.
