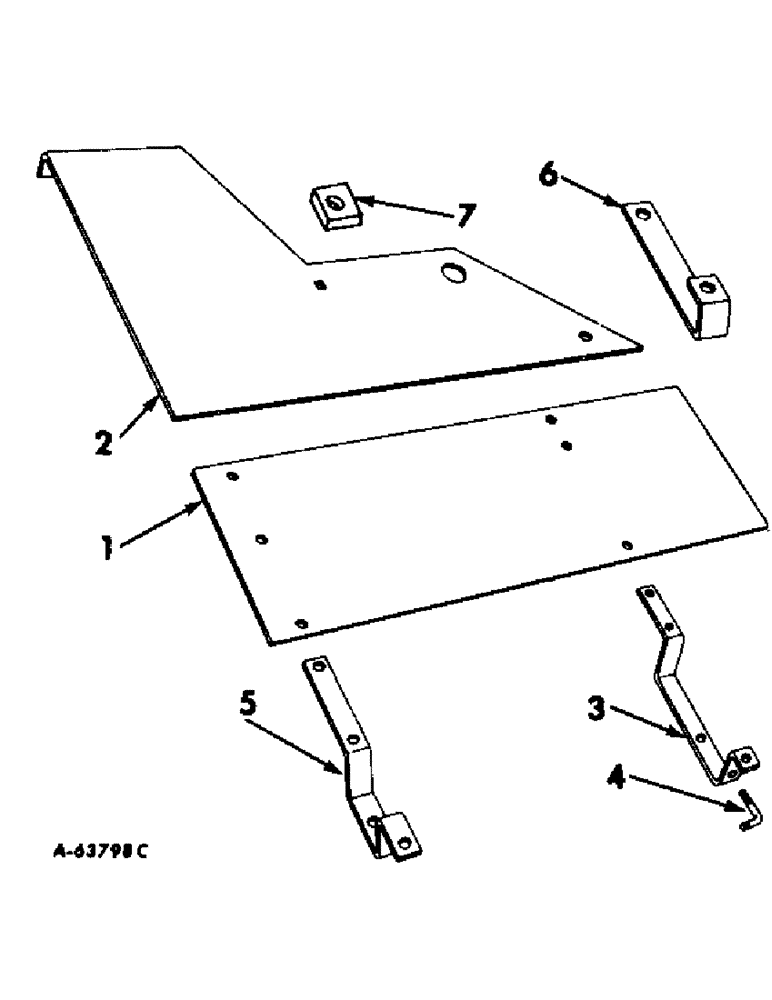

Запчасти Case IH 10 (A-06) - DRIVE BELT SHIELDS

1

665773R2

SHIELD, lower

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8-16 x 3/4 hex-hd mach

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

102635

NUT,3/8"-16, G5

6шт.

2

665777R92

SHIELD ASSY, upper

1шт.

3

667154R1

BRACKET

lower shield belt front

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8-16 x 3/4 hex-hd mach

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

4

665776R1

HOOK

steering arm holdup

1шт.

102635

NUT,3/8"-16, G5

2шт.

517843R1

COTTER PIN

PIN, quick attachable

1шт.

5

665774R2

BRACKET

lower shield belt rear

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

6

668877R1

BRACKET, upper belt shield front

1шт.

15039R1

BOLT

3/8-16 x 1-1/2 short sq-nk crg

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

7

614119C1

BLOCK, spacer, used between 665777R92 and 665756R91

1шт.
