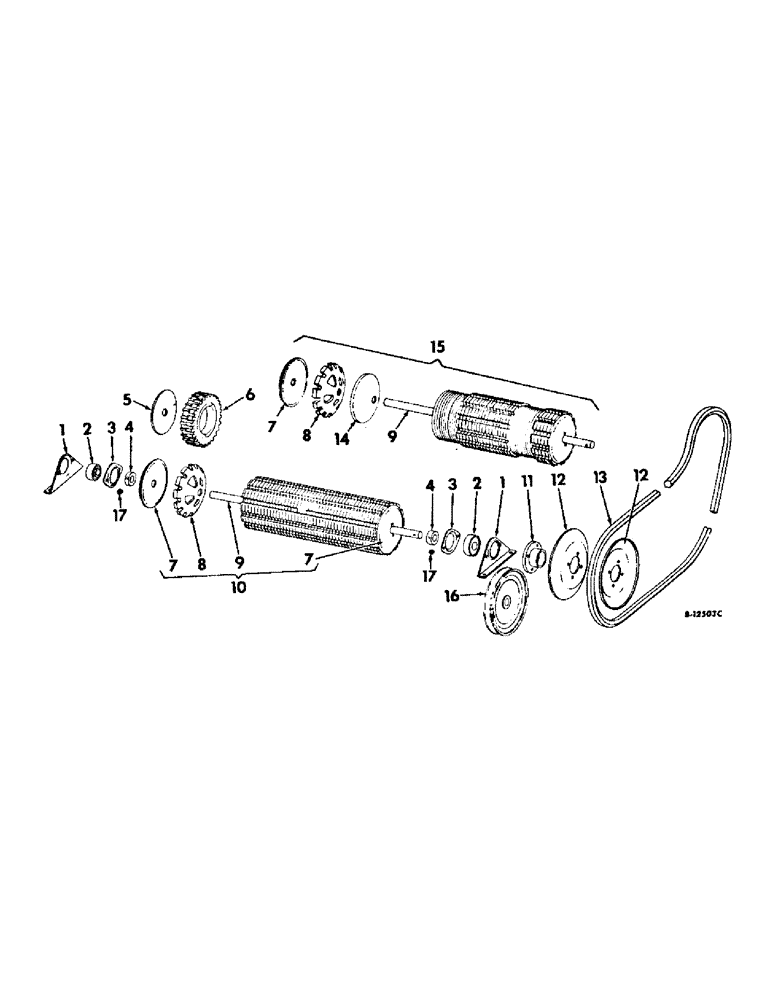

Запчасти Case IH 10 (A-05) - DRIVE ROLLS AND ENGINE DRIVE BELT

1

665721R1

BLOCK

bearing pillow

12шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach

24шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga

24шт.

102635

NUT,3/8"-16, G5

24шт.

2

564991R91

BEARING

ASSY, roller

12шт.

3

666695R1

FLANGE

TTE, bearing

12шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

22шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange whiz lock

24шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 C-Z hex-hd mach

24шт.

4

658006R11

COLLAR

W/SET SCREW, bearing locking

12шт.

5

665629R1

RETAINER, roller end, 1960 thru 1961

6шт.

6

665630R1

ROLLER, tire, 1960 thru 1961

66шт.

7

667162R1

RETAINER

roller

12шт.

8

667161R1

DISC

DISK, roller

234шт.

9

667163R1

SHAFT

roller

6шт.

103744

SUPPORT

PIN, 1/4 x 1-5/8 chamfered

12шт.

10

667164R91

ROLLER

ASSY

4шт.

11

495170R2

HUB CAP

HUB, belt sheave, used with 20211K

6шт.

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

6шт.

12

20211K

PULLEY

SHEAVE, belt, 1960

6шт.

17304R1

LOCK PIN,7/32" x 1 5/8", Slotted

Pin, 7/32" x 1 5/8 ", Slotted

6шт.

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

6шт.

13

21049K

BELT,190.83 mm L

Engine drive, for 27, 37, 46, 47, 420, 430 and 440 balers 190.8 mm L

1шт.

13

583408R1

BELT, drive, for 56 and 57 balers

1шт.

14

668412R1

DISC

DISK, roller plain

36шт.

15

668411R91

ROLLER

ASSY

2шт.

16

674408R1

PULLEY

roll shaft, 1961 and up

6шт.

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

6шт.

576484R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

6шт.

17

200891C1

LOCK NUT

3/8-16 small flange lock

24шт.
