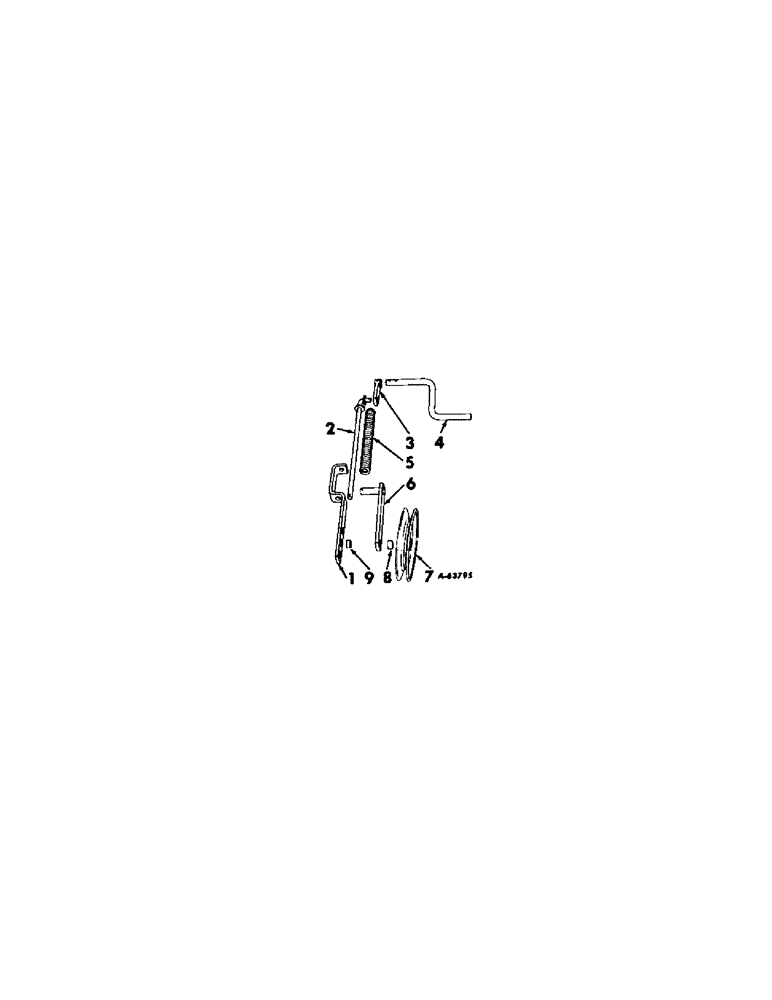

Запчасти Case IH 10 (A-05[A]) - BELT IDLER

1

665767R2

SLIDE, idler arm

1шт.

2

665766R11

ROD

SLIDE ASSY, idler rod

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

16038R1

WASHER

17/32 x 1 x 11 ga

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

3

665763R91

LEVER

assy idler

1шт.

662258R1

SHIELD

PIN, 1/4 x 1-1/8 slt spring

1шт.

4

665762R1

HANDLE, idler

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

5

518926R1

SPRING

idler

1шт.

6

665768R11

ARM

ASSY, idler

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

7

574097R91

PULLEY

idler

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

1шт.

8

320993R1

SPACER,7/8" Tube x 1/2"

idler sheave outer

1шт.

9

665771R1

SPACER

idler sheave inner

1шт.
