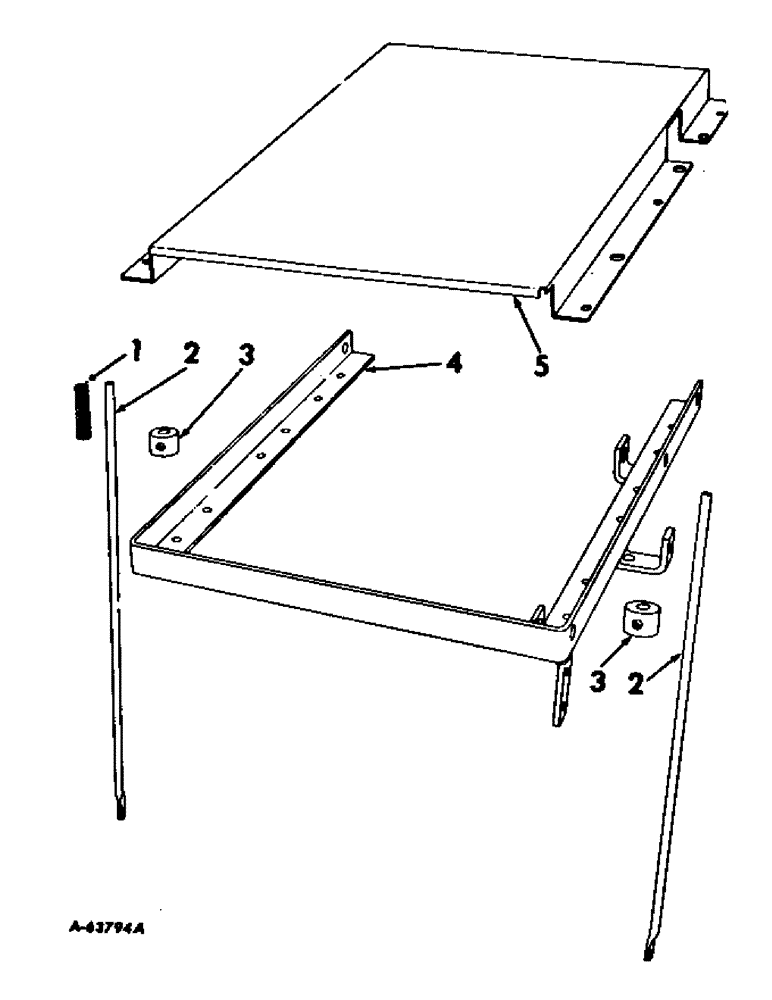

Запчасти Case IH 10 (A-04) - UPPER FRAME AND SUPPORTS

1

454492R1

SPRING

upper frame return

1шт.

2

665616R3

ROD

SUPPORT, upper frame

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8-16 x 1-1/2 znd hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

516595R1

COLLAR

set

3шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 sq-hd cup-pt set

3шт.

4

665756R91

FRAME ASSY, upper

1шт.

5

667158R1

SHIELD, trash, used with engine drive

1шт.
