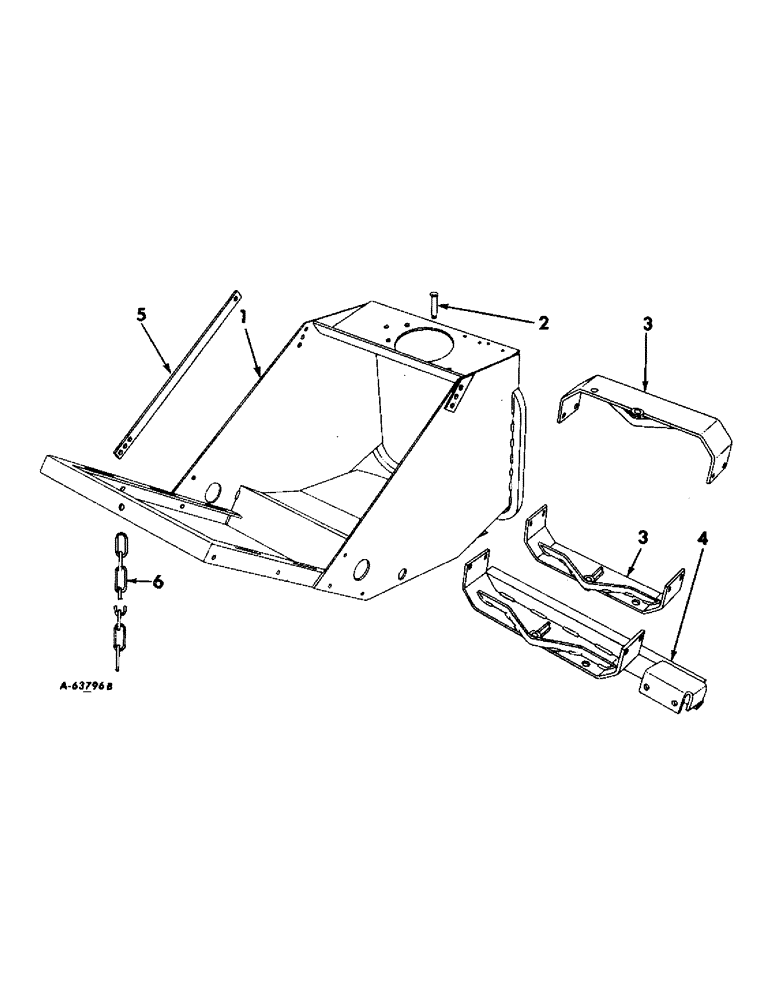

Запчасти Case IH 10 (A-03) - LOWER FRAME AND PIVOT BRACKETS

1

665599R93

FRAME

ASSY, lower

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-1/2 hex-hd cap

2шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

2шт.

2

665706R1

PIN

lock

1шт.

517843R1

COTTER PIN

PIN, quick attachable

1шт.

3

665590R91

SUPPORT

ASSY, pivot brace, for 27, 37, 46 and 47 balers

2шт.

607393R1

CARRIAGE BOLT,7/16" - 14 x 1", Grade 5

BOLT, 7/16 x 1 znd sq-nk type 2 crg

8шт.

NLS

NO LONGER SERVICED

7/16-14 hex

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

3

665640R91

SUPPORT ASSY, pivot brace upper, for 56 and 57 baler

1шт.

607393R1

CARRIAGE BOLT,7/16" - 14 x 1", Grade 5

BOLT, 7/16 x 1 znd sq-nk type 2 crg

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex

4шт.

4

665702R91

SUPPORT ASSY, pivot brace lower, for 56 and 57 baler

1шт.

607393R1

CARRIAGE BOLT,7/16" - 14 x 1", Grade 5

BOLT, 7/16 x 1 znd sq-nk type 2 crg

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

5

666698R2

SUPPORT

lower frame

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8 x 1-3/4 hex-hd cap

2шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

2шт.

6

665786R91

CHAIN (AG)

CHAIN, steering arm holdup, for 27 baler

1шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q399

WASHER

11/32 x 1 x 16 ga

2шт.
