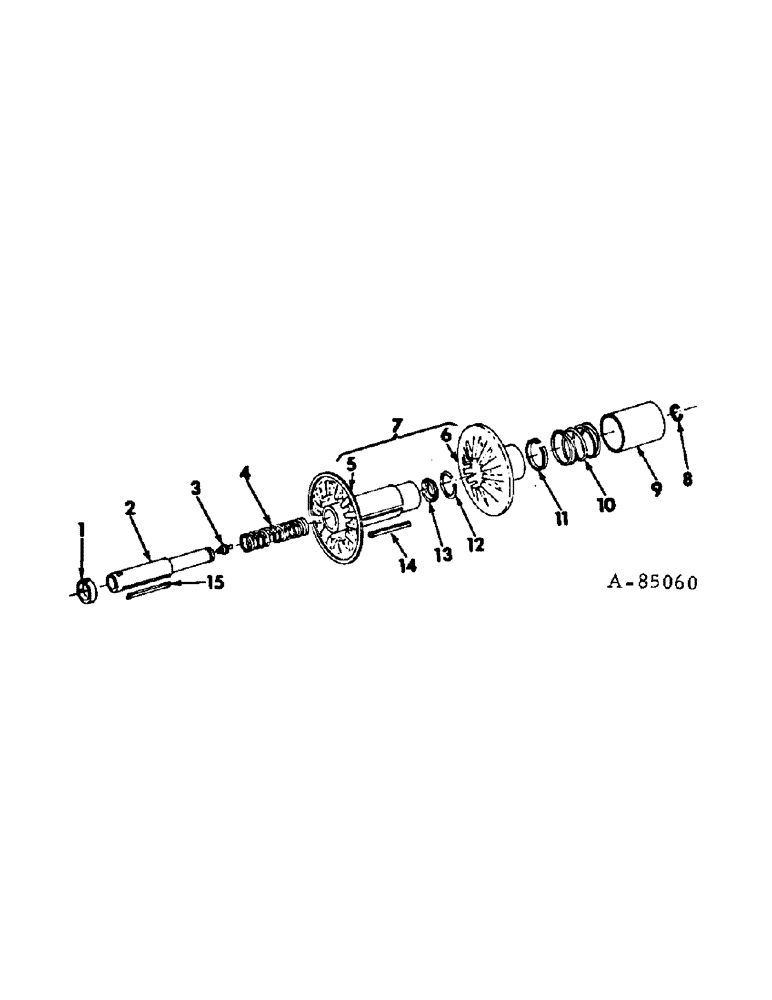

Запчасти Case IH 10 (A-14) - VARIABLE DRIVEN PULLEY, FOR 27, 37, 46, 47, 420, 430 AND 440 BALERS

668903R92

PULLEY

VARIABLE DRIVEN PULLEY, consists of the following service parts

1шт.

1

673606R1

COLLAR

shaft

1шт.

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

Cup point Hex Soc, 1/4"-20 x 3/8"

2шт.

2

673605R2

SHAFT

pulley

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

1шт.

4

673610R2

SPRING

inner

1шт.

5

NSS

NOT SOLD SEPARAT

DISC, inner, not serviced separately

1шт.

6

NSS

NOT SOLD SEPARAT

DISC, outer, not serviced separately

1шт.

7

673604R21

DISC

ASSY, outer and inner

1шт.

8

373522R1

SNAP RING,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

9

673614R1

RETAINER

COVER, spring

1шт.

10

673611R1

VALVE SPRING

SPRING, outer

1шт.

11

673609R1

RING

key retainer

1шт.

12

673613R1

CIRCLIP

RING, spring retainer cap

1шт.

13

673612R1

RETAINER

CAP, spring retainer

1шт.

14

673607R1

KEY

drive outer

1шт.

15

673608R2

KEY

drive inner

1шт.
