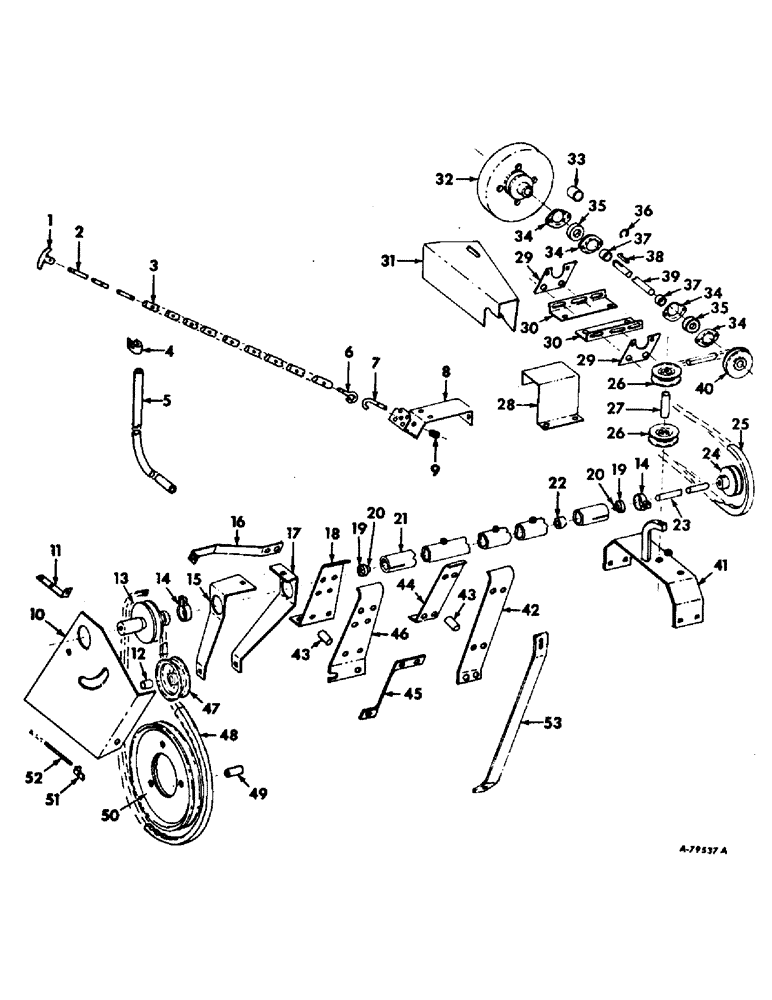

Запчасти Case IH 10 (A-11) - POWER TAKE-OFF DRIVE, FOR 27, 37, 46, 47, 420, 430 AND 440 BALERS

1

668945R1

HANDLE

speed control

1шт.

442861

PIN, 5/32 x 3/8 groove

1шт.

2

668922R1

ROD

speed control

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable

1шт.

3

668921R1

HOUSING

speed control crank

1шт.

4

668923R1

CLAMP

control rod

1шт.

17494R1

BOLT

1/4-20 x 1-3/4 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

665667R1

STAND

speed control

1шт.

6

668920R1

EYE

control rod

1шт.

7

668919R2

HOOK

speed control J

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

557268R1

WASHER

17/32 x 3/4 x 16 ga

1шт.

8

668917R1

BRACKET

speed control

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16-14 x 1 CD or zn-plated hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16-14 CD or zn-pltd hex

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

30A

SPRING

speed control, replaces 352370R1

1шт.

10

668924R11

SHIELD W/PRODUCT GRAPHIC, front

1шт.

11

668918R1

STRAP, front shield

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 CD or zn-pltd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

651612R1

SPACER, idler pulley front, replaces 651260R1

1шт.

21905R1

WASHER

21/32 x 1-3/4 x 3 ga C-Z flat

1шт.

13

668903R92

PULLEY

variable driven, for components see list of parts under details of variable driven pulley

1шт.

14

668906R1

CLAMP

drive shaft brg

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

668915R1

BRACKET

idler pulley front

1шт.

14995R1

BOLT

3/8-16 x 3/4 short-sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

668912R1

BRACKET, shield right

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 CD or zn-pltd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

17

668914R1

BRACKET

idler pulley rear

1шт.

18

668910R1

BRACKET

drive shaft right front

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 CD or zn-pltd hex

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16-14 x 1-1/2 CD or zn-pltd short-sq-nk-crg

2шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 CD or zn-pltd hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

Q5028

WASHER

15/32 x 1 x 11 ga

4шт.

19

668907R92

BEARING ASSY,15.88mm ID x 40mm OD x 13mm W

BEARING ASSY, drive shaft

2шт.

20

468391R11

COLLAR

W/SET SCREW, brg locking

2шт.

21

668905R11

HOUSING

ASSY, drive shaft

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

4шт.

102883

SET SCREW

5/16-18 sq-hd cup-pt set

4шт.

22

668909R1

BUSHING,0.627" ID x 1.502" OD x 1"

BEARING, drive shaft sleeve

4шт.

23

668904R1

SHAFT

drive

1шт.

24

673758R2

PULLEY

V belt mule drive, replaces 668927R91

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16-18 x 1 C-Z sq-hd cup-PT set

2шт.

120376

NUT,5/16"-18, G5

2шт.

25

668929R1

V-BELT,65.80" L

Mule drive 65.80" L

1шт.

26

668940R91

PULLEY

ASSY, idler

2шт.

27

F18186

SPACER,1/2" Pipe x 3 1/4"

idler pulley rear

1шт.

20175R1

BOLT, 1/2-13 x 6-1/2 CD or zn-pltd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 CD or zn-pltd hex lock

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

28

668938R1

SHIELD, countershaft pulley rear

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 CD or zn-pltd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

668935R1

PLATE ASSY.

PLATE, bearing

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

50793H

WASHER

13/32 x 7/8 x 11 ga

4шт.

30

668936R1

BRACKET

brg mount

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 CD or zn-pltd hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

31

668932R1

SHIELD, rear belt

1шт.

32

668937R1

FLYWHEEL

AND SHEAVE

1шт.

33

315179R1

TUBE

SPACER, flywheel and sheave, replaces M74461

1шт.

34

612031R1

FLANGED BEARING

brg mounting

4шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

35

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, rear countershaft

2шт.

36

683059R1

RING,#112, Ext

Snap, , flywheel and sheave #112, Ext

1шт.

37

455102R21

COLLAR

W/SET SCREW, brg locking

2шт.

38

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 x 1-1/2 GIB

1шт.

39

668934R2

SHAFT

COUNTERSHAFT, rear

1шт.

615226R1

WASHER

1-1/32 x 1-1/2 x 22 ga

1шт.

40

668933R91

PULLEY

rear countershaft

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16-18 x 1 C-Z sq-hd cup-pt set

2шт.

120376

NUT,5/16"-18, G5

2шт.

41

668930R91

SUPPORT

ASSY, pivot brace upper

1шт.

42

668926R1

BRACKET

drive shaft left rear

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 CD or zn-pltd short-sq-nk crg

2шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8-16 x 2-1/2 CD or zn-pltd hex-hd mach

4шт.

NLS

NO LONGER SERVICED

BOLT, 3/8-16 CD or zn-pltd hex

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

43

M23361

ROLLER

SPACER, drive shaft bracket

4шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8-16 x 2-1/2 CD or zn-pltd hex-hd mach

2шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

44

668925R1

BRACKET

drive shaft rear

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 CD or zn-pltd short-sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

45

668913R1

BRACKET, shield left

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 CD or zn-pltd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

46

668911R1

BRACKET

drive shaft left front

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8-16 x 2-1/2 CD or zn-pltd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 CD or zn-pltd hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

47

564745R91

PULLEY

ASSY, drive belt idler

1шт.

20312R1

SCREW,Short NK, 5/8"-11 x 4 1/4", G2

BOLT, 5/8-11 x 4-1/4 CD or zn-pltd sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 CD or zn-pltd hex

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 CD or zn-pltd hex lock

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

578274R1

WASHER

21/32 x 1 x 11 ga

1шт.

48

668902R1

BELT

PTO drive

1шт.

49

936153R1

SPACER

pulley sheave, replaces M23361

3шт.

50

668901R11

PULLEY

ASSY, drive

1шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8-16 x 3-1/4 znd hex-hd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

51

668916R1

CLIP

rope attaching

1шт.

52

ROPE, speed control, purchase locally, 3/16 x 30 inches nylon rope

1шт.

53

201601C2

SUPPORT

rear bracket

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 znd hex-hd mach

3шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 znd hex-hd mach

1шт.

NLS

NO LONGER SERVICED

3/8-16 znd hex

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.
