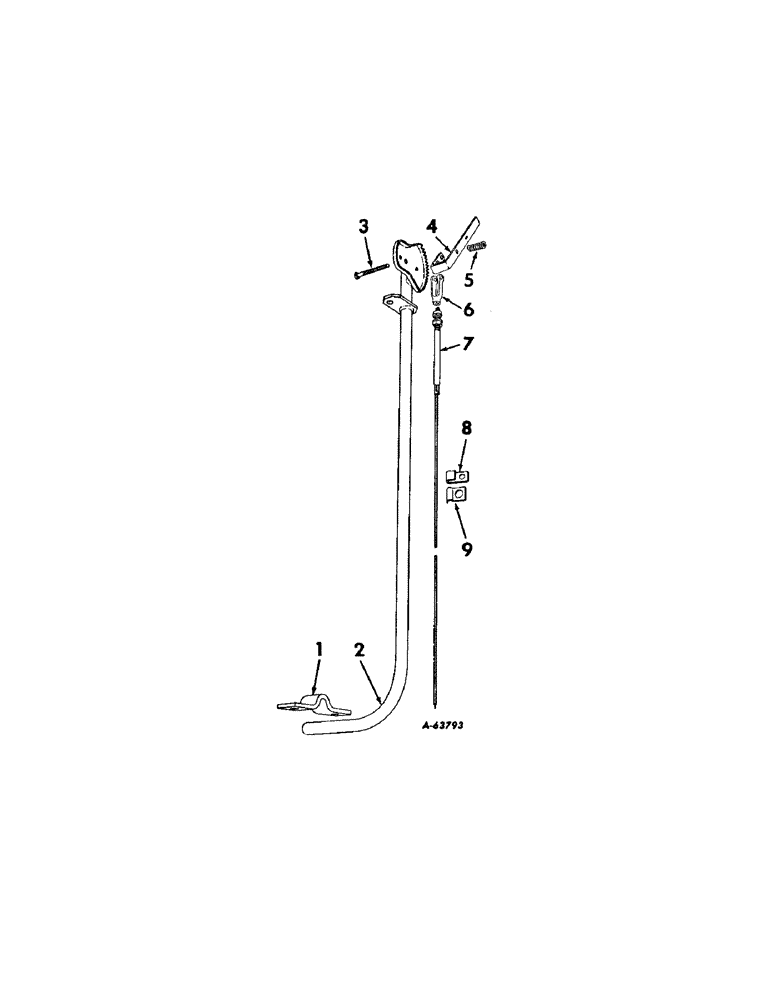

Запчасти Case IH 10 (A-07) - THROTTLE STAND AND CABLE

1

665668R1

SUPPORT

CLAMP, remote throttle stand

1шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

1шт.

271568

PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

1шт.

2

665787R91

STAND ASSY, throttle

1шт.

Used with engine drive

1шт.

3

665789R1

BOLT, throttle lever

1шт.

Used with engine drive

1шт.

102635

NUT,3/8"-16, G5

4шт.

4

665790R1

LEVER, remote throttle

1шт.

Used with engine drive

1шт.

5

352026R2

SPRING

governor control

1шт.

Used with engine drive

1шт.

6

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 short adj rod end

1шт.

Used with engine drive

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

L1125

PIN, 3/8 x 1-3/16 std hd

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

7

665791R91

CABLE, throttle control

1шт.

Used with engine drive

1шт.

8

140577

CLIP, no. 3-3/16 x 3/8 closed

5шт.

Used with engine drive

1шт.

9

666591R1

CLIP, remote throttle cable, 56 and 57 balers

2шт.

Used with engine drive

1шт.
