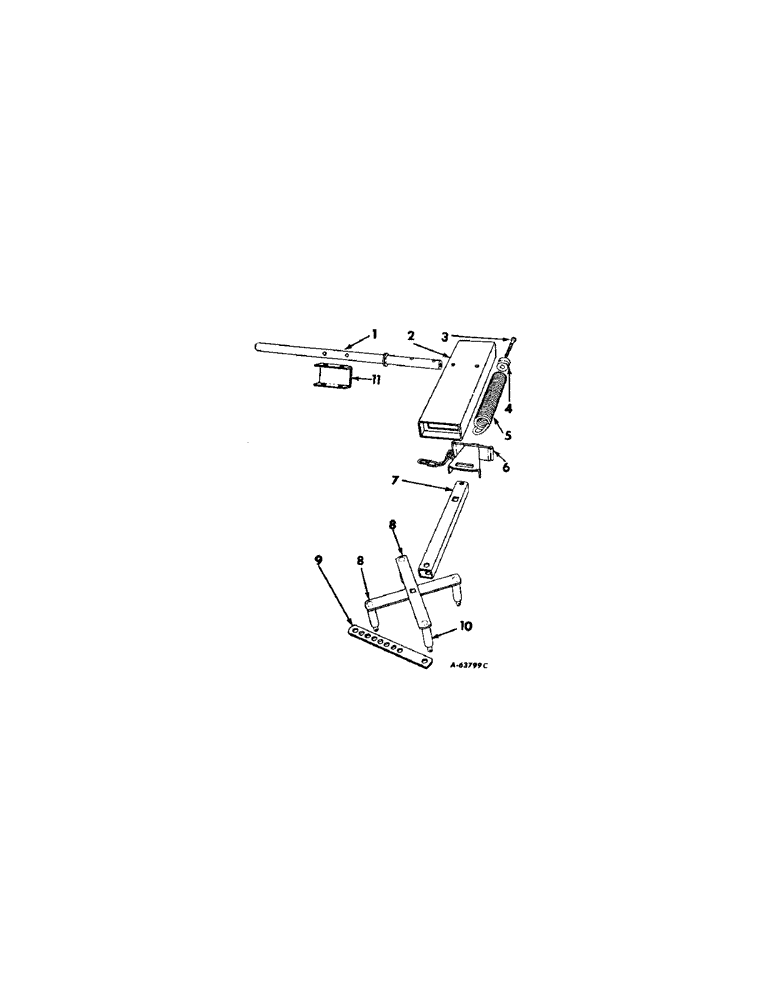

Запчасти Case IH 10 (A-07[A]) - STEERING ARM

1

665636R21

PIVOT

ASSY, steering

1шт.

17523R1

BOLT, 1/2-13 x 2 hex-hd mach

2шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

615281R1

WASHER

1-11/32 x 2-1/2 x 16 ga

1шт.

2

665692R91

CHANNEL

ASSY, steering spring

1шт.

3

665697R1

BOLT, spring

1шт.

102637

NUT,1/2"-13, G5

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

4

590001R1

PLUG

spring

1шт.

5

659960R1

SPRING

steering

1шт.

6

665783R91

GUIDE

ARM ASSY, steering adjusting

1шт.

7

665781R11

CHANNEL

ARM ASSY, steering

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 short sq-nk crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

102637

NUT,1/2"-13, G5

1шт.

8

668077R91

FORK

ASSY, steering

2шт.

15144R1

BOLT

1/2-13 x 3 sq-nk

1шт.

102637

NUT,1/2"-13, G5

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

586591R1

COTTER PIN

PIN, quick attachment cot

2шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

4шт.

9

665698R1

STRAP

RETAINER, steering fork

1шт.

10

665708R1

ROLLER

fork

4шт.

11

670704R1

EXTENSION, steering pipe pivot, for 27 baler

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2-13 x 2-1/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

2шт.
