Запчасти Case IH 717130026 (006[1]) - BAFFLE RR AND BELT ASSY

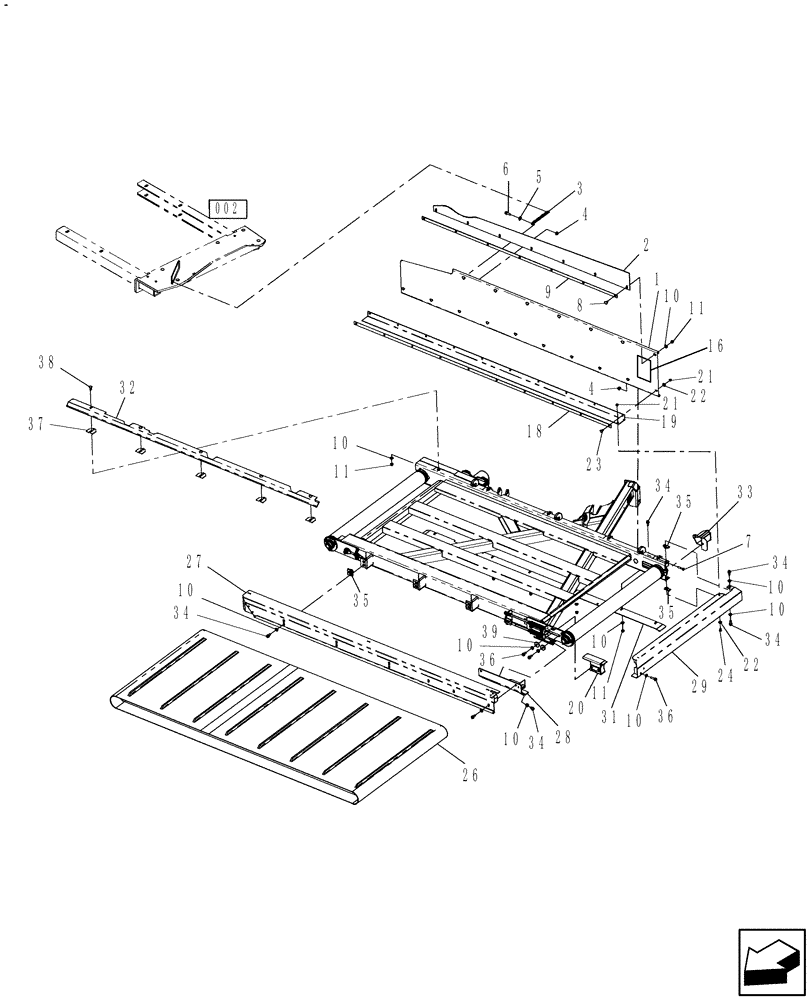

Схема запчастей Case IH 717130026 - (006[1]) - BAFFLE RR AND BELT ASSY
22
37
4
1
10
18
34
11
8
6
35
36
26
21
29
39
33
5
35
10
16
32
11
3
7
10
21
38
10
4
002
34
35
19
10
27
34
31
23
10
24
36
9
34
22
2
11
10
28
20
10
10
34

Артикул

Название

Примечание

Количество

1

87663763

BAFFLE

Includes: Ref. 16, English Decal

1шт.

2

87658461

BAFFLE

1шт.

3

87704904

CHAIN

8 Links

1шт.

4

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

6

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

7

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

3шт.

8

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

7шт.

9

84132293

STRIP

7шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

33шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

17шт.

16

86611825

WARNING DECAL

No Step - English

1шт.

16

86614084

WARNING DECAL

No Step - French

1шт.

Locate French Decals Adjacent to English Decals Where Possible. Locate French Decals Over to English Decals Where Nessecary.

1шт.

18

84126863

STRIP

1шт.

19

84126881

FLAP

1шт.

20

84124865

ANGLE

1шт.

21

86629544

NUT,5/16” – 18, GR B

11шт.

22

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

11шт.

23

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

10шт.

24

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

26

84155738

CONVEYOR BELT,2156.00 mm L

1шт.

26

84227947

CONVEYOR BELT

Conveyor, Replaces 84155738

1шт.

27

84172000

PROTECTION PLATE

1шт.

28

84238657

SHIELD

1шт.

29

84126275

SHIELD

1шт.

31

87658460

GUIDE

1шт.

32

87694586

GUARD

Trash

1шт.

33

87477291

GUARD

1шт.

34

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

18шт.

35

86539811

SPRING NUT

9шт.

36

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3шт.

37

87643058

SHIM

20шт.

38

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

5шт.

39

21304

SELF-TAP SCREW

2шт.

Выбрано товаров: 35
