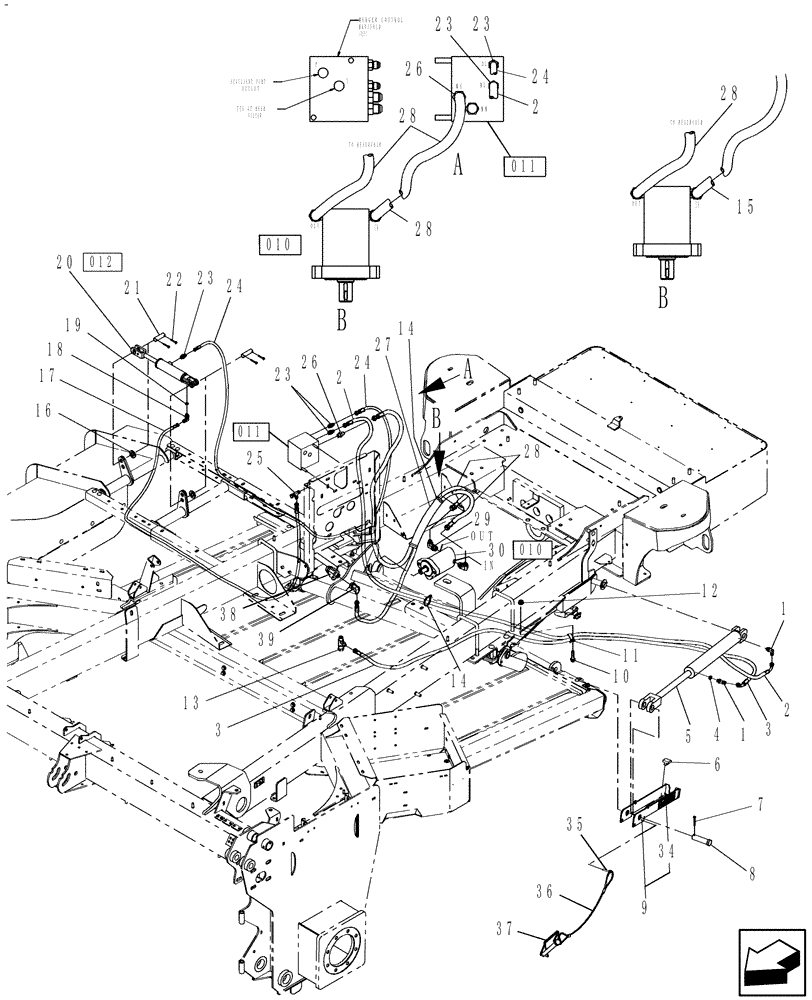

Запчасти Case IH 717130026 (004) - HYDRAULIC SYSTEM

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

2шт.

2

87585801

HOSE ASSY.

1шт.

3

87585805

HOSE ASSY.

1шт.

4

270191

ORIFICE

1шт.

5

87678179

CYLINDER,Double Acting, 28.7mm Rod, 304.8mm Stroke

Hydraulic, Lift Arm, 2.5" x 12" x 1.13" Breakdown, see Fig. 012(2)

1шт.

6

216328

BUMPER

1шт.

7

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

8

511935

PIN,25.4mm OD x 98.43mm L

1шт.

9

87664319

CHANNEL

Includes: Ref. 34

1шт.

10

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

11

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

12

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

13

87446825

TEE

1шт.

Connect to Propel Charge Pump Outlet Port "D"

1шт.

14

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

16

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

15

87585813

HYDRAULIC HOSE,12.70 mm ID x 1473.00 mm, SAE 100R16

, Start Year: 01-AUG-10

1шт.

17

87585700

HOSE ASSY.

1шт.

18

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

19

705914

ORIFICE

2шт.

20

87034589

CYLINDER,Double Acting, 19.05mm Rod, 101.6mm Stroke

Hydraulic, Side Deflector

1шт.

20

84246073

CYLINDER,Double Acting, 19.05mm Rod, 101.6mm Stroke

Hydraulic, Side Deflector, Start Year: 01-OCT-10

1шт.

21

86634564

PIN

2шт.

22

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

4шт.

23

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

3шт.

24

87585812

HYDRAULIC HOSE,6.35 mm ID x 2057.00 mm, SAE 100R16

1шт.

25

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

Connect to Main Manifold Port "P3"

1шт.

26

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

27

87046143

SLEEVE

1шт.

28

87585813

HYDRAULIC HOSE,12.70 mm ID x 1473.00 mm, SAE 100R16

, Years: -01-AUG-10

2шт.

28

87021283

HYDRAULIC HOSE,0.50" ID x 71.00", SAE 100R17

HOSE ASSY., Start Year: 01-AUG-10

1шт.

29

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

2шт.

30

87499864

HYDRAULIC MOTOR

1шт.

30a

87042713

SEAL KIT

Services 87499864

1шт.

Not Illustrated

1шт.

34

87651623

DECAL

DANGER

1шт.

35

80756

COTTER PIN,1/8" x 3/4"

1шт.

36

9847357

CABLE

1шт.

37

86591354

LOCK PIN

1шт.

38

86624131

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

1шт.

39

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.
