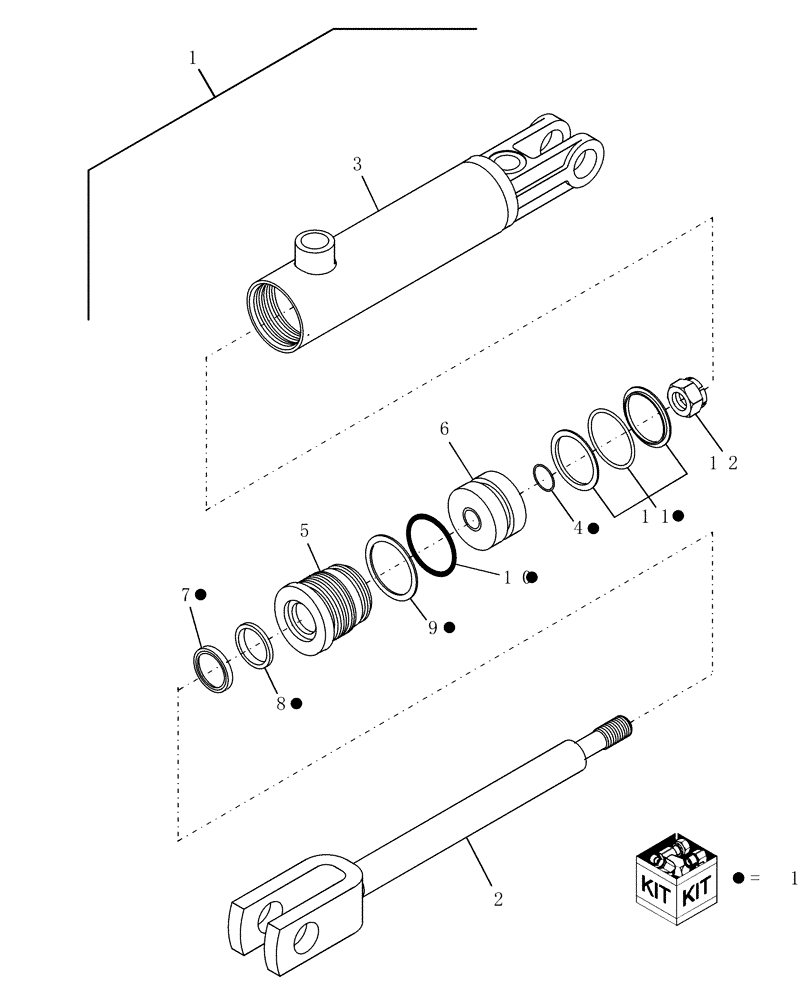

Запчасти Case IH 717130026 (012) - HYDRAULIC CYLINDER, SIDE DEFLECTOR

1

87034589

CYLINDER,Double Acting, 19.05mm Rod, 101.6mm Stroke

Hydraulic, Side Deflector

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

2

87029767

PISTON ROD

1шт.

3

NSS

NOT SOLD SEPARAT

Barrel, Cylinder

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87029765

CYLINDER END CAP

1шт.

6

87029766

PISTON,1/2" ID x 1-1/2" OD x 1/2" Thk

1шт.

7

514100

OIL SEAL

Wiper

1шт.

8

9826108

SEAL,19.28mm ID x 25.2mm OD x 5.03mm Thk

1шт.

9

514099

WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk

Back-Up, 1.266" ID x .043" Thk

1шт.

10

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

11

86605608

SEAL,31.34mm ID x 38.1mm OD x 4.75mm Thk

3 Piece Piston

1шт.

12

88130

NUT,1/2"-20, GC

1шт.

13

87029768

SEAL KIT

1шт.
