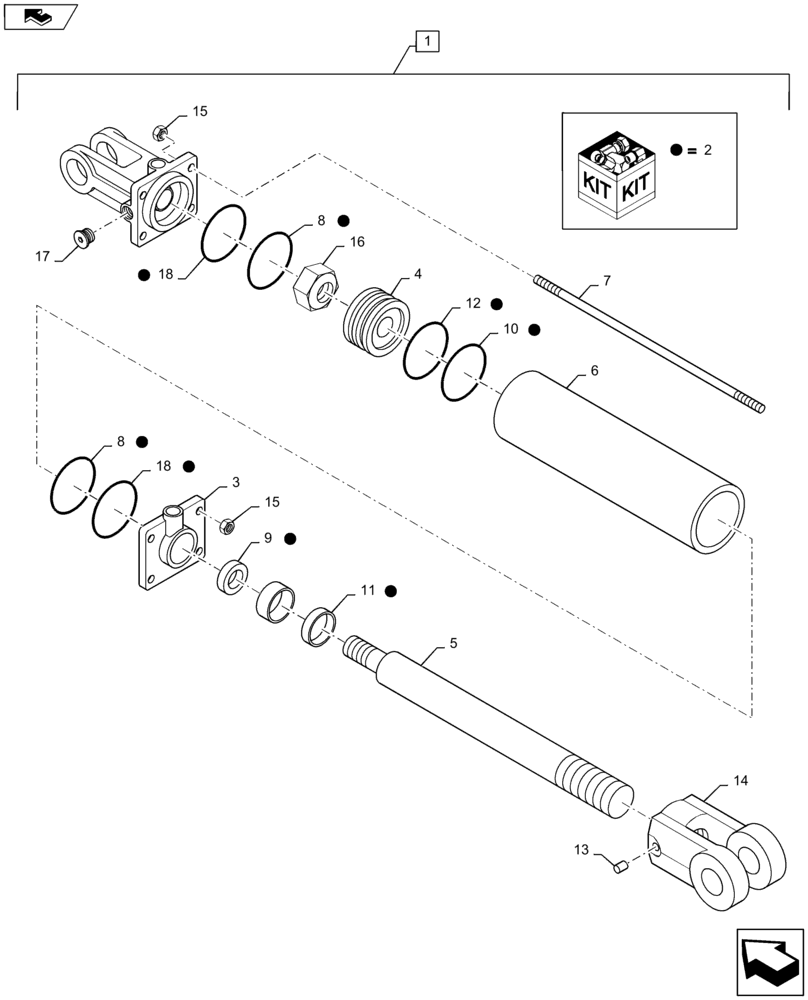

Запчасти Case IH 717130026 (012[2]) - LIFT CYLINDER

1

87678179

CYLINDER,Double Acting, 28.7mm Rod, 304.8mm Stroke

2.5" x 12" x 1.13"

1шт.

2

M645871

REPAIR KIT

Services Merger Lift Cylinder 87678179, Incl 8 - 12, 18

1шт.

3

439276A1

CYLINDER END CAP

2.5"

1шт.

4

84340891

PISTON

2.5" OD

1шт.

5

439279A1

PISTON ROD

2.5" X 12"

1шт.

6

87739805

TUBE,3.5 mm DIA x 20 mm L

2.5" X 12"

1шт.

7

8181

TIE-ROD

Cylinder, .375" X 12"

4шт.

8

NSS

NOT SOLD SEPARAT

Oring, 228, Serviced In Seal Kit M645871 (2)

2шт.

9

NSS

NOT SOLD SEPARAT

U Cup Rod Seal, Serviced In Seal Kit M645871 (2)

1шт.

10

NSS

NOT SOLD SEPARAT

Oring, 230, Serviced In Seal Kit M645871 (2)

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Wiper, 1.125", Serviced In Seal Kit M645871 (2)

1шт.

12

NSS

NOT SOLD SEPARAT

Oring, Backup, 330, Serviced In Seal Kit M645871 (2)

2шт.

13

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

14

87449358

CLEVIS

Cylinder Rod

1шт.

15

9628503

NUT,3/8"-16, G5

8шт.

16

87021832

LOCK NUT,3/4"-16, GC

1шт.

17

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, Backup, Serviced In Seal Kit M645871 (2)

2шт.
