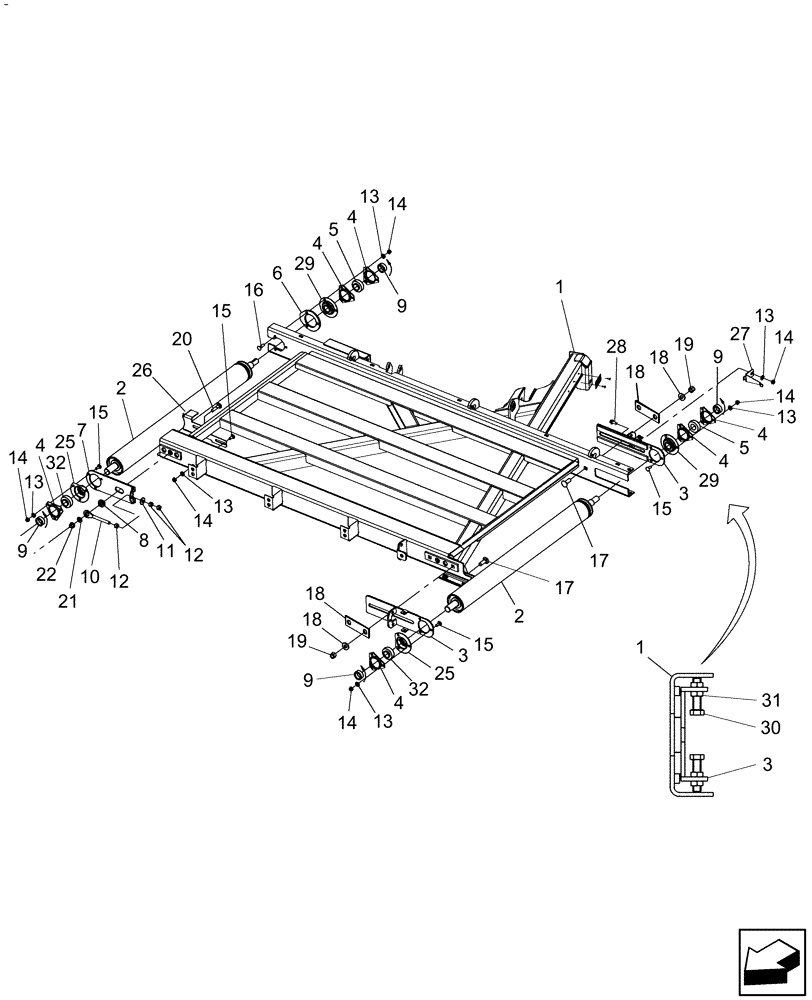

Запчасти Case IH 717130026 (001) - DECK

1

87694636

FRAME

1шт.

2

87576197

ROLL

2шт.

3

87694581

MOUNT

Bearing

2шт.

3

84243334

MOUNT

Bearing, Replaces 87694581

2шт.

4

86636169

FLANGED BEARING

8шт.

5

84484181

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

4шт.

5

84484181GV

BEARING ASSY

Value, Ball Bearing

4шт.

6

87648262

SPACER

2шт.

7

87580147

MOUNTING PARTS

1шт.

8

87743292

SPACER

1шт.

9

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

4шт.

10

86560834

THREADED ROD

1шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

12

280431

NUT,1/2"-13, G5

3шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

7шт.

16

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

6шт.

17

280805

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

4шт.

18

84296123

STRIP

2шт.

19

85700693

NUT,5/8" - 11, Gr C

4шт.

20

280504

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

21

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1шт.

22

86521610

FLANGE NUT,Flg, 1/2"-13

1шт.

25

245743

SUPPORT

2шт.

26

84133869

ANGLE

1шт.

27

84135832

ANGLE

1шт.

28

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

40704

SEAL

2шт.

30

87323384

BOLT

, Years: -01-OCT-08

2шт.

31

86509499

JAM NUT,3/8"-16, G2

, Years: -01-OCT-08

4шт.

32

76836

BALL BEARING,1.25" ID x 2.4409" OD x 1.4375"

2шт.
