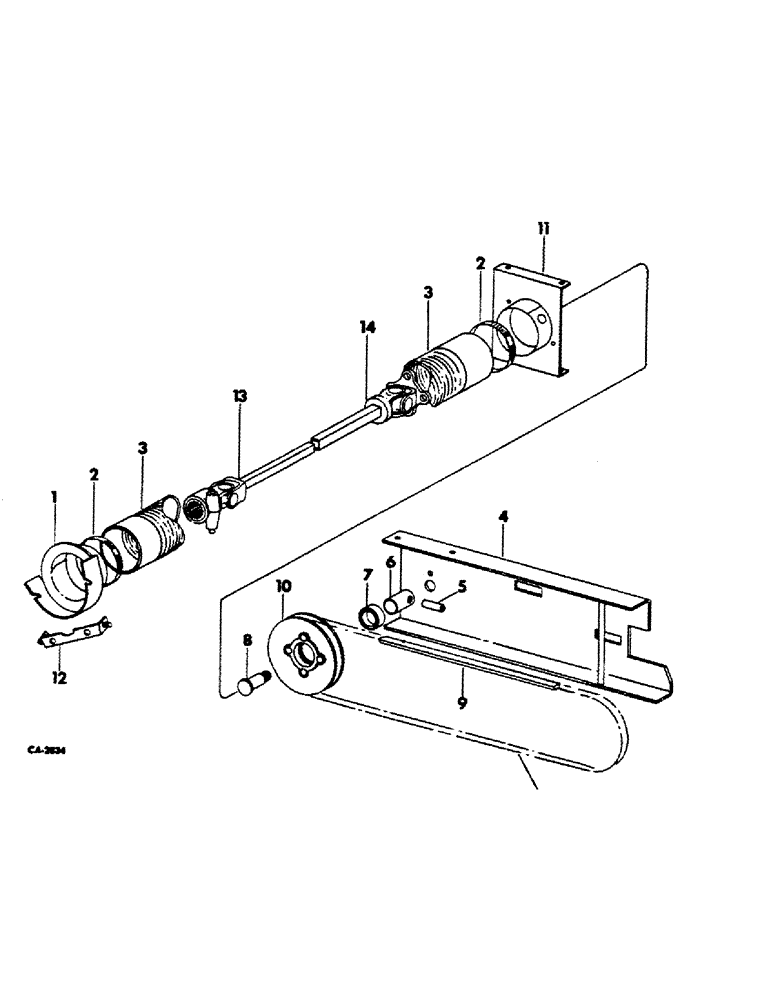

Запчасти Case IH 3110 (N-08) - FRONT POWER DRIVE, MECHANICAL

1

545544R1

SHIELD

ASSY, rear

1шт.

2

309693R91

HOSE CLAMP,#60, 3.31/4.25 Type F Worm

CLAMP, hose

2шт.

3

545546R1

HOSE PROTECTION

HOSE, shield

1шт.

4

545536R1

SHIELD

ASSY, front drive mounting

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 crg type 1

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

179136

SET SCREW,Sq Hd, 1/2"-13 x 2 1/2"

SCREW, 1/2 x 2-1/2 znp cd/pt sq/hd set

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

22958R1

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

For use on 238, B-250, B-275, 356, 364, 384, B-414, 424, 444, 2300A, 2424 and Lo-Boy, 2444 and Lo-Boy machines.

1шт.

5

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

For use on 454, 464, 574, 574 row crop, 674, 674 row crop 240A and Lo-Boy, 250A and Lo-Boy, 2400A and Lo-Boy, 2400B and Lo-Boy 2405B and Lo-Boy, 2500A and Lo-Boy, 2500B and Lo-Boy, 2505B and Lo-Boy machines.

1шт.

6

464249R1

SPACER

bearing

1шт.

7

464267R91

BALL BEARING

drive pulley ball

1шт.

8

464247R1

STUD

SPINDLE, front drive

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9

545540R1

V-BELT,0.88" W

Drive 0.88" W

1шт.

10

545539R1

PULLEY, drive

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

11

545541R1

SHIELD

ASSY, front joint

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

4шт.

21801R1

WASHER

.281 x .734 x .056

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

545551R1

BRACKET ASSY

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

2шт.

13

JOINT ASSY, rear universal, refer to front power drive

1шт.

14

JOINT ASSY, front universal, refer to front power drive

1шт.
