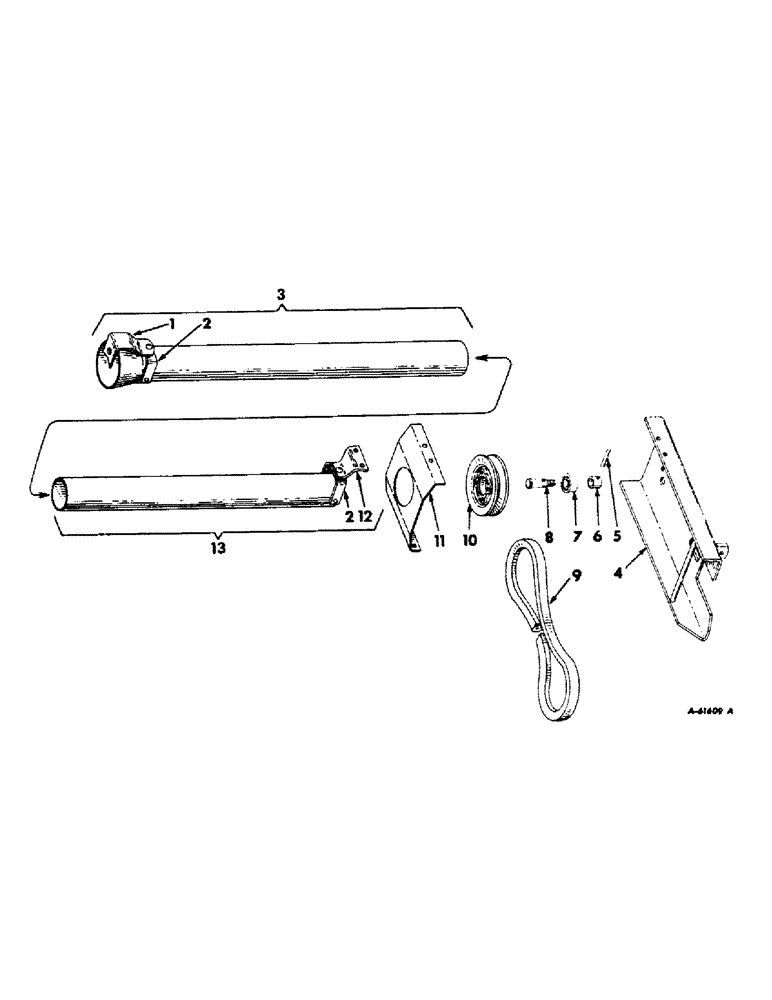

Запчасти Case IH 3110 (N-07) - FRONT POWER DRIVE, HYDRAULIC
№
Артикул
Название
Примечание
Количество
1
463349R1
BRACKET, rear universal joint shield
1шт.
180178
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
1/2 x 1-5/8 type 5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
2
463345R1
YOKE
HOLDER, universal joint shield
2шт.
23012R1
RIVET, 3/8 x 11/16 t/hd sol, plated
2шт.
3
481063R11
SHIELD
ASSEMBLY, rear universal joint, for joint assy, 481058R91
1шт.
23003R1
RIVET, 1/4 x 1/2 t/hd sol
2шт.
21871R1
WASHER
.281 x 1.000 x .042
2шт.
3
464236R11
SHIELD
ASSEMBLY, rear universal joint, for joint assy, 464234R91
1шт.
23003R1
RIVET, 1/4 x 1/2 t/hd sol
2шт.
21871R1
WASHER
.281 x 1.000 x .042
2шт.
4
447806R31
SHIELD, front drive mounting
1шт.
18573R1
CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2
BOLT, 5/8 x 1-1/2 crg type 1
2шт.
23020R1
SCREW, 1/2 x 2 znp sq/hd c/pt set
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2 jam type 5
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
5
22958R1
LOCK PIN,5/16" x 2 1/4", Slotted
Pin, 5/16" x 2 1/4", Slotted
1шт.
6
464249R1
SPACER
bearing
1шт.
7
464267R91
BALL BEARING
drive pulley ball
1шт.
8
464247R1
STUD
SPINDLE, front drive
1шт.
426897
JAM NUT,Jam, 3/4"-10, G5
3/4 jam type 5
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
9
486543R2
BELT
Drive
1шт.
10
464250R1
PULLEY
drive
1шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3/8 x 2 type 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
11
463370R1
SHIELD
front joint
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
12
463346R1
BRACKET, front universal joint shield
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
13
463344R11
SHIELD
W/PRODUCT GRAPHIC, 56630C1, front universal joint
1шт.
27871R1
WASHER, .281 x 1.000 x .042
2шт.
106899
RIVET, 1/4 x 5/8 pln t/hd sol
2шт.
Выбрано товаров: 37
