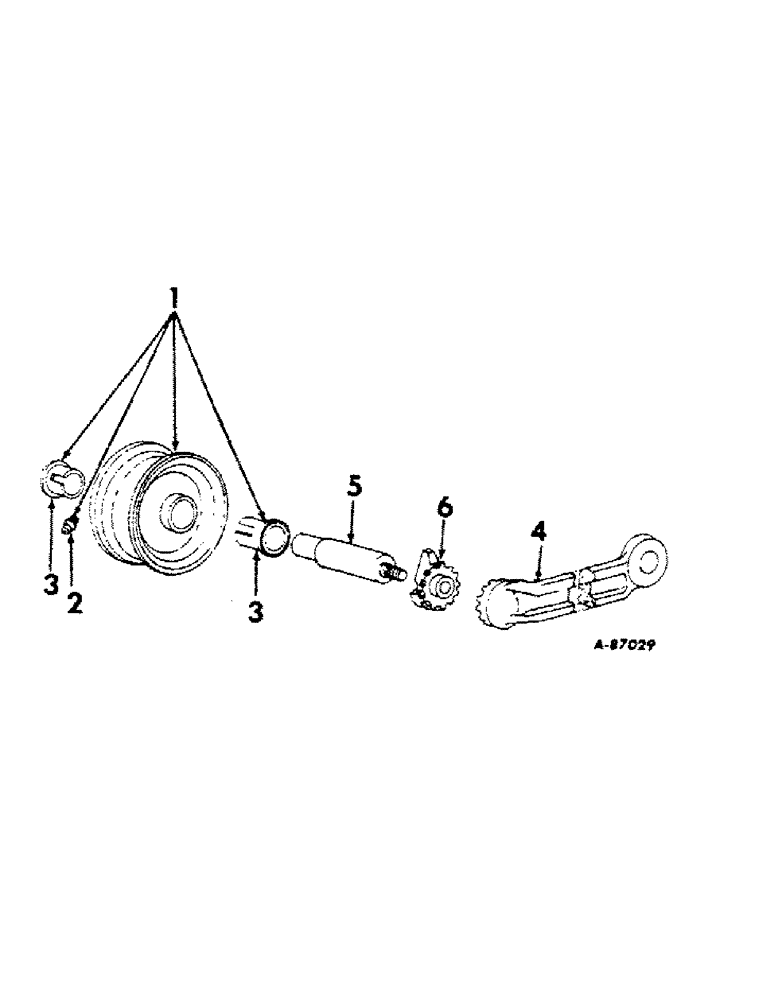

Запчасти Case IH 3110 (N-06) - OUTER SHOE WHEEL

486024R91

OUTER SHOE WHEEL, consists of the following parts

1шт.

1

453124R93

WHEEL ASSY, semi-pneumatic tire

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 NF self tapping str lub

1шт.

3

481892R1

BUSHING

BEARING, wheel

2шт.

4

M2452X

ARM ASSY, outer shoe wheel

1шт.

Q584

BOLT, 1/2-13 x 1-7/8 special-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

M32048

STUD

wheel

1шт.

M153M

NUT

5/8 horned

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

6

Z852

ADJUSTER

WASHER, wheel adjusting

1шт.

53324H

WASHER

21/32 x 1-5/8 x 11 ga

1шт.

22266R1

WASHER

1.156 x 1.750 x .027

1шт.
