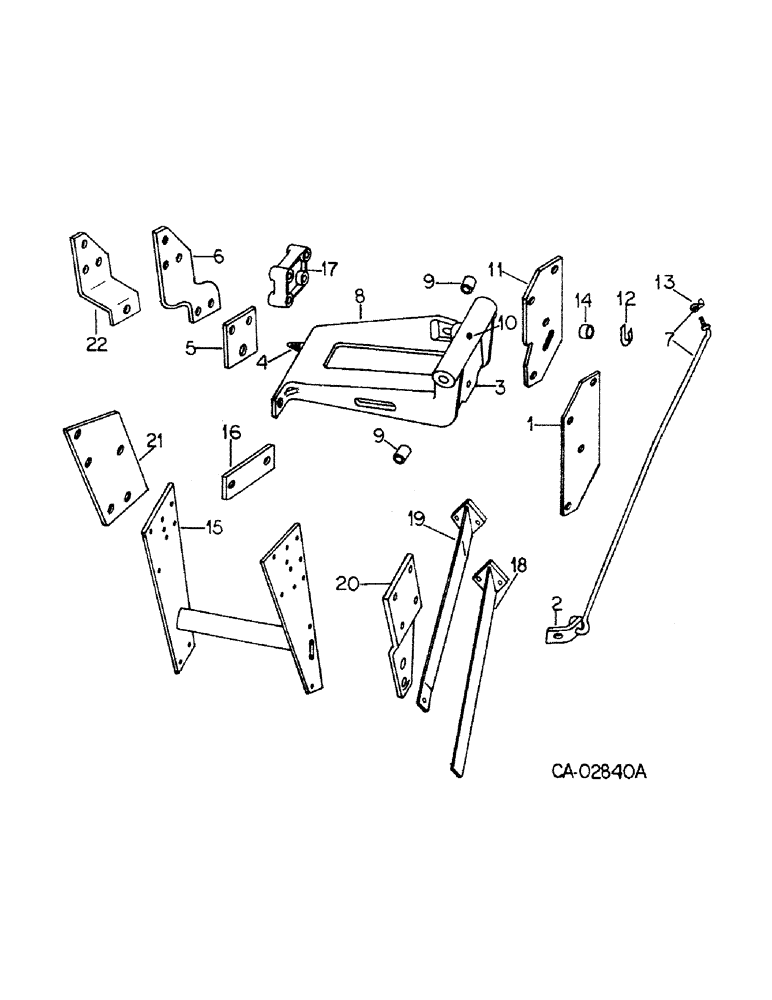

Запчасти Case IH 3110 (N-02) - MAIN FRAME, SIDE MOUNTING PLATES AND STAY ROD

1

59156C1

PLATE, RH mounting, unit C

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

BOLT, 3/4 x 3-3/4 type 5

1шт.

25548R1

WASHER

.812 x 1.500 x .219 phc hdn

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

2

469661R1

ANCHOR, stay rod, special

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

3

463323R1

PIN, right hitch

1шт.

4

463324R1

PIN, hitch left

1шт.

520177R11

PIN

ASSY, quick attachable cot.

1шт.

5

548210R1

PLATE, lead adjustment

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

6

545534R1

PLATE, mounting LH, units A and B

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

3шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, Used on 240A and 250A only

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

7

463502R92

ROD

W/CRANK, stay, for use w/o loader

1шт.

7

469660R1

ROD, stay, for use with loaders

1шт.

8

464077R11

FRAME

ASSY, main, includes Ref. nos 4, 9 and 15

1шт.

466322R1

SCREW, 3/4-16 x 2-1/2 hex-hd cap

1шт.

522473R1

WASHER

.766 x 1.75 x .125 ht

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

426099

NUT,3/4"-16, G5

3/4-NF type 5

1шт.

9

463322R1

BUSHING

frame

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

11

545535R1

PLATE, mounting RH, units A and B

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, Used on 240A and 250A only

4шт.

12

463380R1

CLIP

FASTENER, stay rod

1шт.

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 type 5, unit D

1шт.

271763

BRACKET,Hex, 3/4" - 10 x 1", Gr 5

3/4 x 1 type 5, w/o loaders

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

For 240A and 250A machines Hex, 3/4"-10 x 1 1/2", G5

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

For 240A, 250A machines Hex, 3/4"-10 x 3", G5

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

280954

NUT,3/4"-10, G5

for 240A and 250A machines 3/4"-10, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Unit D 5/8"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

13

M487

CRANK

stay rod

1шт.

14

C13576

SPACER, stay rod

1шт.

15

463528R94

PLATE, mounting, unit F

1шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8 x 2 type 5

3шт.

21793R1

WASHER

.656 x 1.250 x 1.64

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

16

61712C1

BAR, spacer, unit F when equipped with rops

1шт.

17

463386R3

SPACER

mounting, without rops

1шт.

18

464232R11

BRACE, RH mounting, unit F when equipped without rops

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 type 5

2шт.

280954

NUT,3/4"-10, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

19

101291C1

BRACE, RH mounting, unit F when equipped with rops

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

21793R1

WASHER

.656 x 1.250 x .164

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

463388R2

PLATE

RH mounting, unit E

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21

463387R3

PLATE, LH mounting, unit E

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 type 5

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

22

59155C1

PLATE, LH mounting, unit C

1шт.

21704R1

BOLT,3/4" - 10 x 3 1/2", Gr 8

3/4 x 3-1/2 type 8

1шт.

22854R1

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

3/4 x 2-3/4 type 8

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.
