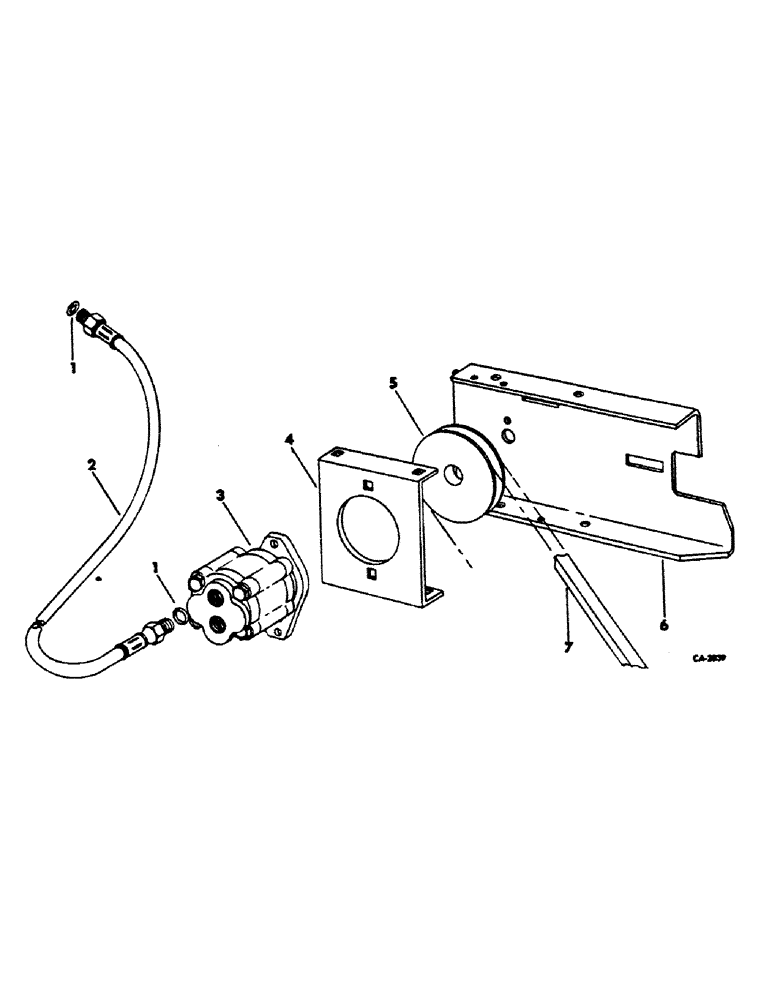

Запчасти Case IH 3110 (N-16) - HYDRAULIC DRIVE

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

2

547664R91

HOSE ASSY, motor, 27-1/2 in.

1шт.

3

547663R91

MOTOR

ASSY, hydraulic

1шт.

489041R1

KEY

pump shaft

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8 x 4-1/4 pln type 8

4шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

flat

4шт.

4

477808R1

BRACKET, motor mounting

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 crg type 1

4шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

28407K

WASHER

flat, or as required

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

5

477809R2

PULLEY

drive

1шт.

139063

SCREW, 3/8 x 5/16 pln c/pt hdl/hs set

4шт.

6

477806R31

SHIELD

front drive mounting

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 crg type 1

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

110454

1/2 x 2 pln c/pt sq/hd set

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

567947R2

V-BELT,22.33 mm W

Drive pulley 22.33 mm W

1шт.
