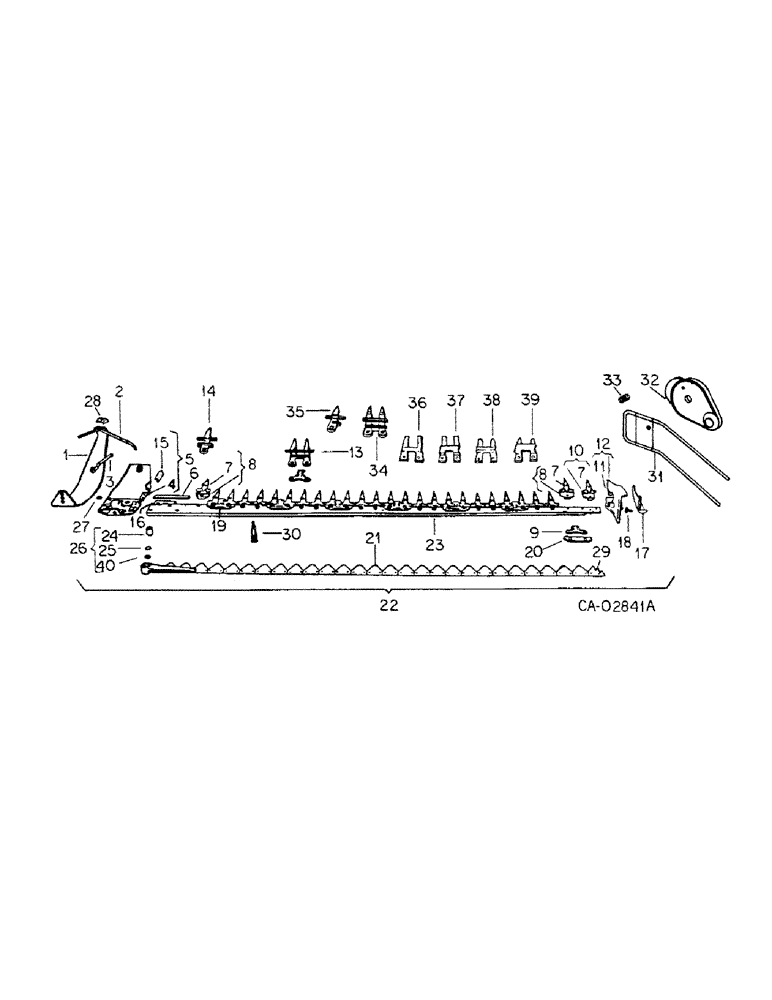

Запчасти Case IH 3110 (N-12) - CUTTER BAR

1

462743R1

SOLE

inner shoe, stub type

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

463405R1

ROD

inner shoe upper grass

1шт.

3

461281R1

ROD

inner shoe lower grass

1шт.

4

458965R1

PLATE

inner shoe ledger

1шт.

13892R1

RIVET,Csk, 3/16" x 1 1/4"

3/16 x 1-1/4 pln 54D c/hd sol

2шт.

5

486934R91

SHOE

ASSY, inner

1шт.

143868C1

BOLT,Hex, 5/8" - 11 x 2", Gr 5, Nylon Pellet

SCREW W/NYLON PELLET INSERT, 5/8-11 x 2 hex-hd cap

1шт.

27434R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 phc p/t type 8

2шт.

486707R1

WASHER

.656 x 1.25 x .104 hardened

3шт.

6

458942R1

BAR

SPACER, cutter bar, not used w/9 ft. cutter bar

1шт.

7

455634R1

PLATE

LEDGER PLATE, plain serrated, 18 for 5 ft., 24 for 7 ft. and 32 for 9 ft. long cutter bars

1шт.

7

457608R1

CUTTER BAR

LEDGER PLATE, cr-pltd serrated, 22 for 6 ft. and 24 for 7 ft. long cutter bar

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 74 deg csk-hd tubular, 1 per each plate, 1 pound package

1шт.

8

MC2041Z

GUARD

GUARD W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy, 18 for 5 ft., 24 for 2134 mm, 7 ft. and 32 for 2746 mm, 9 ft. long cutter bar

1шт.

8

457743R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy, 22 for 6 ft. and 24 for 7 ft. long cutter bars

1шт.

9

544274R1

CLIP

HOLDER, low arch knife, 4 for 5 ft., 5 for 6 ft., 6 for 7 ft., and 8 for 9 ft. long cutter bars

1шт.

10

MC2043Z

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy outer

1шт.

10

457745R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy outer

1шт.

11

MA330

LARGE PLATE

LEDGER PLATE, outer shoe serrated

1шт.

990720R91

RIVET, 3/16 x 11/16 pln 54 D c/hd sol, 1 pound package

1шт.

990717R91

RIVET, 3/16 x 1 pln 54D c/hd sol, 1 pound package

1шт.

12

MF729AX

SHOE

W/SERRATED LEDGER PLATE, outer

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, outer shoe

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

2шт.

13

483500R3

GUARD

forged steel double knife, 12 for 7 ft., and 16 for 9 ft. long cutter bars

1шт.

REF: #13 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1

1шт.

14

472717R2

GUARD

single steel stub, 2 used w/malleable guards, 3 used w/ double-forged guards and 27 used w/stub guards

1шт.

15

486708R1

SHIELD

inner shoe

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/8", G2

1шт.

Q5028

WASHER

15/32 x 1 x 11 ga

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

1шт.

16

488411R1

SHIM

spacer, or as required

4шт.

17

M259X

SOLE

W/BRACKET, outer shoe

1шт.

18

D266X

BOLT AND NUT

W/NUT, outer shoe sole

1шт.

120637

NUT, 1/2 pln type 5

1шт.

19

611759R1

KNIFE CLIP

HOLDER, high arch knife

1шт.

20

MC468

PLATE ASSY.

WEARING PLATE, 1 per each foot

1шт.

21

826723C1

KNIFE SECTION

SECTION, plain underserrated, 54 used for 7 ft. and 70 used for 9 ft. long cutter bars

1шт.

990817R91

RIVET

5-1/2 x 9/16 pln o/hd, 94 used for 7 ft. and, or as required used for 9 ft. long cutter bars, one pound package

1шт.

21

457606R2

KNIFE SECTION

SECTION, cr-pltd underserrated, 54 used for 7 ft. long cutter bar

1шт.

991059R91

RIVET

6 x 5/8 pln o/hd, two pound package

94шт.

21

826724C1

KNIFE SECTION

SECTION, smooth, heavy, 38 used for 6 ft., 46 used for 6 ft., 54 used for 7 ft. and 70 used for 9 ft. long cutter bars

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 62 used for 5 ft., 78 used for 6 ft., 94 used for 2134 mm-7 ft. and 126 used for 2743 mm-9 ft. long cutter bar, two pound package

1шт.

21

826722C1

KNIFE SECTION

SECTION, underserrated, heavy, 38 used for 5 ft., 46 used for 6 ft., 54 used for 7 ft. and 70 used for 9 ft. long cutter bars

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd used for 6 ft., 94 used for 7 ft., and 126 used for 2743 mm-9 ft. long cutter bars, two pound package

1шт.

21

457604R2

ASSEMBLY

SECTION, smooth cr-pltd, regular, 54 used for 7 ft. and 70 used for 9 ft. long cutter bars

1шт.

21

457605R2

KNIFE SECTION

SECTION, smooth heavy cr-pltd, 70 used for 9 ft. long cutter bar

1шт.

21

457607R2

KNIFE SECTION

SECTION, underserrated heavy cr-pltd, 54 used for 7 ft. and 70 used for 9 ft. long cutter bars

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 94 used for 7 ft. and 126 used for 9 ft. long cutter bars, two pound package

1шт.

22

472088R91

KNIFE ASSY

KNIFE W/SMOOTH SECTIONS, cr-pltd, 7 ft. long

1шт.

22

472089R91

KNIFE

W/SMOOTH SECTIONS, cr-pltd, 9 ft. long

1шт.

22

472090R91

KNIFE

W/SMOOTH SECTIONS, cr-pltd, heavy, 9 ft. long

1шт.

22

472091R91

KNIFE

W/UNDERSERRATED SECTIONS, cr-pltd, heavy, 9 ft. long

1шт.

22

463406R92

KNIFE

W/SMOOTH SECTIONS, heavy, 5 ft. long

1шт.

22

463408R92

KNIFE

W/UNDERSERRATED SECTIONS, heavy, 5 ft. long

1шт.

22

465111R92

KNIFE

W/SMOOTH SECTIONS, heavy, 6 ft. long

1шт.

22

465112R92

KNIFE

W/UNDERSERRATED SECTIONS, heavy, 6 ft. long

1шт.

22

467749R91

KNIFE

W/UNDERSERRATED SECTIONS, heavy, cr-pltd, 7 ft. long

1шт.

22

458968R92

KNIFE ASSY

KNIFE W/UNDERSERRATED SECTIONS, plain, 7 ft. long

1шт.

22

460937R92

KNIFE

W/UNDERSERRATED SECTIONS, cr-pltd, 7 ft. long

1шт.

22

462380R92

KNIFE ASSY

KNIFE W/UNDERSERRATED SECTIONS, heavy, 7 ft. long

1шт.

22

463159R92

KNIFE

W/UNDERSERRATED SECTIONS, heavy, 9 ft. long

1шт.

22

463381R92

KNIFE W/SMOOTH PLAIN SECTIONS, heavy, 7 ft. long

1шт.

22

463182R92

KNIFE

W/SMOOTH PLAIN SECTIONS, heavy, 9 ft. long

1шт.

22

463180R92

KNIFE

W/REGULAR UNDERSERRATED SECTIONS, 9 ft. long

1шт.

23

463410R1

BAR

cutter, 5 ft. long

1шт.

23

465113R1

BAR

cutter, 6 ft. long

1шт.

458974R1

BAR

cutter, 7 ft. long

1шт.

23

1265863C1

BAR

W/INSTRUCTIONS, cutter, 9 ft. long

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, 7/16 x 1-5/16 pln plow type 5 short guard, 9 used for 5 ft., 13 used for 7 ft. and 17 used for 9 ft. long cutter bars

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, 7/16 x 1-5/8 pln plow type 5 long guard, 2 used per foot

1шт.

NLS

NO LONGER SERVICED

7/16 pln type 5, 1 per each bolt

1шт.

24

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, knife head, also part of package 479342R94, refer to flywheel pulley and balanced heavy housing for breakdown of package list

2шт.

25

458972R1

PLUG

knife head

2шт.

26

56692C91

PITMAN

HEAD ASSY, knife, replaces 458969R11

1шт.

14768R1

RIVET, 5-1/2 x 1 pln o/hd Oval Hd, .211" x 1"

9шт.

27

458941R1

SHIM

inner shoe

1шт.

28

461383R1

CLAMP

CLIP, grass rod

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 crg type 1

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

29

467455R11

VALVE

SECTION W/RIVETS, smooth heavy triplet end, cr-pltd

2шт.

29

467456R11

KNIFE SECTION

SECTION W/RIVETS, underserrated heavy triplet end, cr-pltd

2шт.

29

467457R11

KNIFE SECTION

SECTION W/RIVETS, smooth regular triplet end, cr-pltd

2шт.

29

467458R11

KNIFE SECTION

SECTION W/RIVETS, underserrated regular triplet end, cr-pltd

2шт.

MB133

RIVET

5-1/2 x 5/8 cad o/hd, 1 pound package

4шт.

30

469975R3

GAUGE

guard lip

1шт.

31

463326R12

ROD ASSY.

ROD, outer shoe grass

1шт.

32

458979R1

CLAMP

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22942R1

PIN, 1/4 x 3/4 cot

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

33

M1015

SPRING

grass rod tension

1шт.

18942R1

BOLT,1/2" - 13 x 3", Gr 2

1/2 x 3 sq-hd mach type 1

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

231-1448

NUT,1/2"-13, GB

1/2 p/t lock type 5

1шт.

34

58600C1

GUARD ASSY.

GUARD, strut, 12 used for 7 ft., 17 used for 9 ft. cutter bars w/double forged guards

1шт.

35

486452R2

SHIELD

GUARD, inner, 9 ft. long cutter bar w/double forged guard

1шт.

36

58601C1

CLIP

low arch strut, 11 used for 7 ft. and 15 used for 9 ft. long cutter bars w/double forged guards

1шт.

37

58602C1

CLIP

high arch strut, 1 used for 7 ft and two used for 9 ft. long cutter bars w/double forged guards

1шт.

38

101831C2

CLIP

HOLDER, regular arch knife, 2134 mm-7 ft. long cutter bar

11шт.

39

101832C2

CLIP

HOLDER, high arch knife, 2134 mm-7 ft. long cutter bar

2шт.

40

544553R1

SEALING WASHER

seal

1шт.
