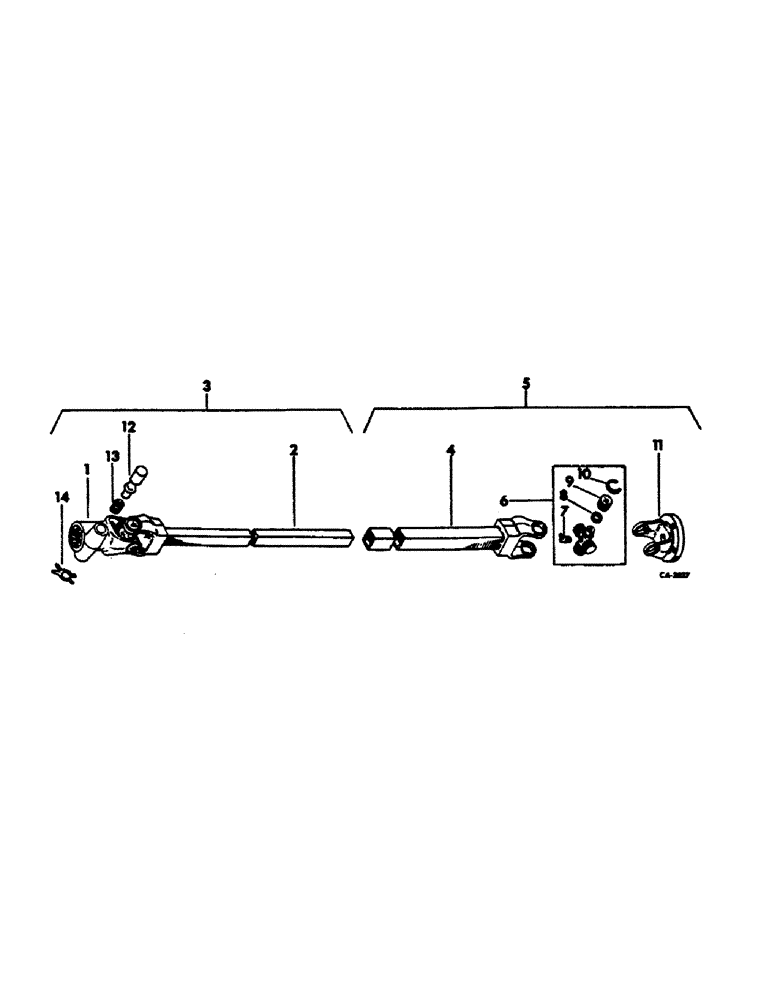

Запчасти Case IH 3110 (N-10) - FRONT POWER DRIVE EQUIPMENT, ROCKWELL STANDARD

1

473539R91

YOKE ASSY, quick

1шт.

2

545548R1

YOKE, rectangular tube

1шт.

3

545547R91

JOINT

ASSY, single universal, rear half, implement end

1шт.

4

545550R1

YOKE W/TUBE

1шт.

5

545549R91

JOINT ASSY, single universal, front half, tractor end

1шт.

6

150635R92

SPIDER

CROSS ASSY, center

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , pln Slotted, Headless, 1/8" NPT

2шт.

7

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 ptf short 65D lub

2шт.

8

357425R1

CORK SEAL

cork oil

8шт.

9

661678R91

BEARING

needle

8шт.

10

357426R1

RING

snap

8шт.

11

463356R1

YOKE

flanged

1шт.

12

631976R91

PIN

locking

1шт.

13

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

14

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

lock pin

1шт.

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 hole 65D lub

1шт.
