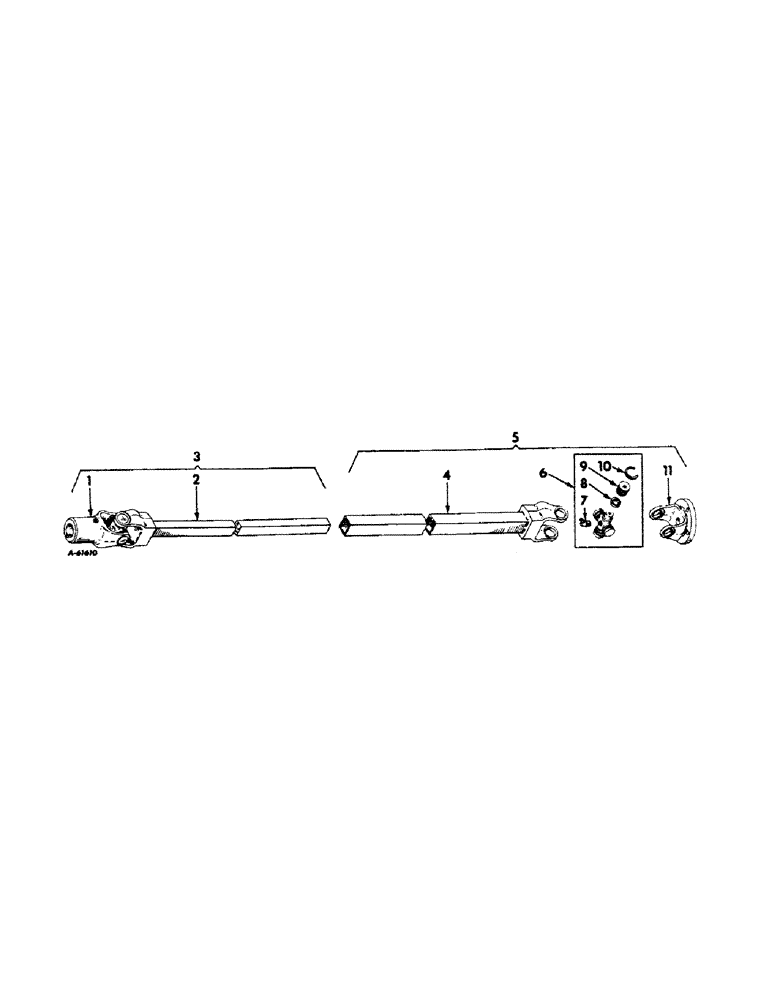

Запчасти Case IH 3110 (N-09) - POWER DRIVE EQUIPMENT, ROCKWELL STANDARD

1

463358R1

YOKE

W/KEYWAY, sprocket end

1шт.

424255

PULLEY

PIN, 5/16 x 2-3/8 pln chmf str

1шт.

2

YOKE W/SHAFT, 1/4 in. long, order joint assy, 464234R91

23шт.

2

463357R1

YOKE W/SHAFT, 3/8 in. long

39шт.

2

481057R1

YOKE W/SHAFT, 3/8 in. long

45шт.

3

464234R91

JOINT ASSEMBLY, rear half of double universal, sprocket end, 11/16 in. long

25шт.

3

481058R91

JOINT

ASSEMBLY, rear half of double universal, sprocket end, 7/8 in. long

47шт.

4

463355R1

TUBE

YOKE W/TUBE

1шт.

5

463353R91

JOINT

ASSEMBLY, front half of double universal, pulley end

1шт.

6

150635R92

SPIDER

CROSS ASSEMBLY, center

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , pln Slotted, Headless, 1/8" NPT

2шт.

7

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

2шт.

8

357425R1

CORK SEAL

cork oil

8шт.

9

661678R91

BEARING

ASSEMBLY, needle

8шт.

10

357426R1

RING

snap

8шт.

11

463356R1

YOKE

W/FLANGE, pulley end

1шт.

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 degree elbow lubrication

1шт.
