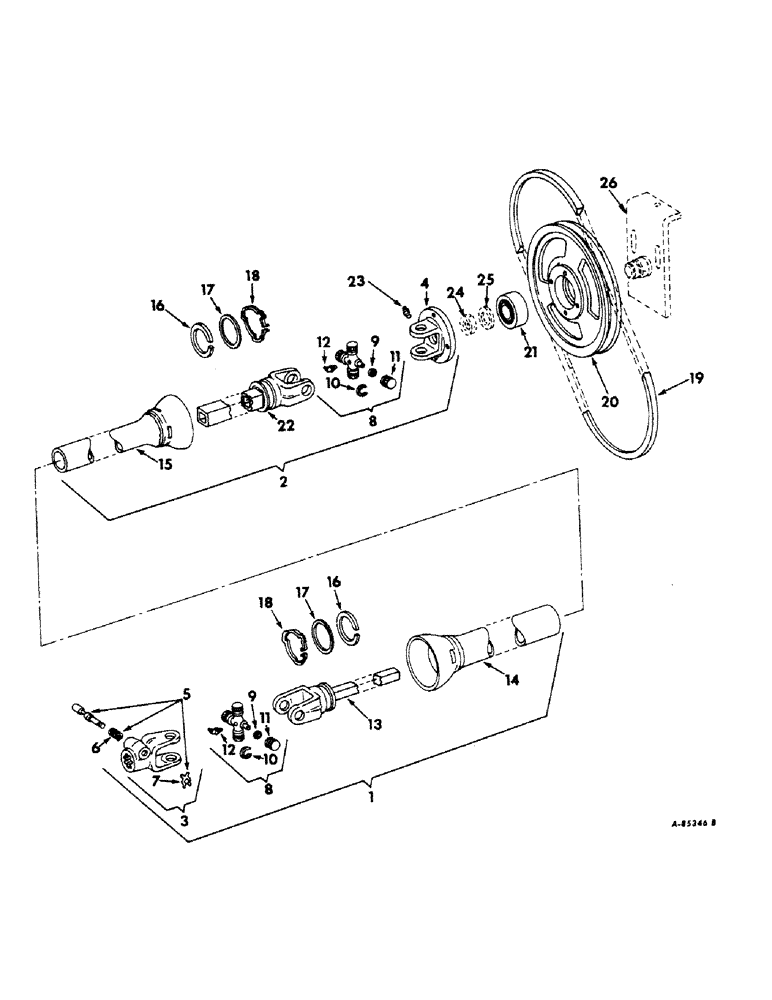

Запчасти Case IH 230 (J-09) - MOWER DRIVE AND RELATED PARTS
№
Артикул
Название
Примечание
Количество
1
481353R91
JOINT ASSY, single universal shielded, unit A, tractor half
1шт.
1
486741R91
JOINT ASSY, single universal shielded, unit B, tractor half
1шт.
2
481354R91
JOINT ASSY, single universal shielded, implement half
1шт.
3
462492R91
YOKE
ASSY, quick detachable unit A, tractor half
1шт.
3
473539R91
YOKE ASSY, quick detachable unit A, tractor half
1шт.
4
463356R1
YOKE
W/FLANGE, implement half
1шт.
5
455346R21
PIN
ASSY, lock, unit A
1шт.
5
631976R91
PIN
ASSY, lock, unit B
1шт.
6
455347R1
VALVE SPRING
SPRING, lock pin, unit A, tractor half
1шт.
6
587479R1
SPRING
lock pin, unit B, tractor half
1шт.
7
661406R1
LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk
X-WASHER, lock pin
1шт.
8
150635R92
SPIDER
KIT, center cross
2шт.
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
2шт.
9
357425R1
CORK SEAL
cork oil
8шт.
10
357426R1
RING
snap
8шт.
11
661678R91
BEARING
CUP ASSY, needle
8шт.
12
80711
LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg
FITTING, 1/8-27 ptf 65 deg angle lub
2шт.
13
481362R91
YOKE W/SHAFT, tractor half
1шт.
14
481363R1
SHIELD, outer, tractor half
1шт.
15
481365R1
SHIELD, inner, implement half
1шт.
16
463014R1
RING
BEARING, nylon
2шт.
17
463015R1
THRUST WASHER
thrust
2шт.
18
463016R1
RING
snap
2шт.
19
483878R1
V-BELT,0.88" W x 49.70" L
Pulley drive 540 RPM PTO, Unit A 0.88" W x 49.70" L
1шт.
19
459161R1
V-BELT, Pulley drive, 1000 RPM PTO, Unit B
1шт.
20
481159R1
PULLEY, drive 540 RPM PTO, unit A
1шт.
20
481370R1
PULLEY, drive 1000 RPM PTO, unit B
1шт.
18908R1
BOLT, 3/8 x 1-1/2 sq-hd mach
4шт.
472144R1
NUT
3/8-16 C-Z lock
4шт.
21
464267R91
BALL BEARING
drive pulley ball
1шт.
22
481364R91
YOKE W/TUBE, implement half
1шт.
23
219-53
LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF
FITTING, 3/16 65 deg ang drive type lub
1шт.
24
NUT, 5/8-18 esna stop LH, refer to coupling frame, pendulum housing and related parts
1шт.
25
WASHER, 21/32 x 1-1/4 x 11 ga, refer to coupling frame, pendulum housing and related parts
1шт.
26
SUPPORT ASSY, drive pulley, refer to coupling frame, pendulum housing and related parts
1шт.
Выбрано товаров: 35
