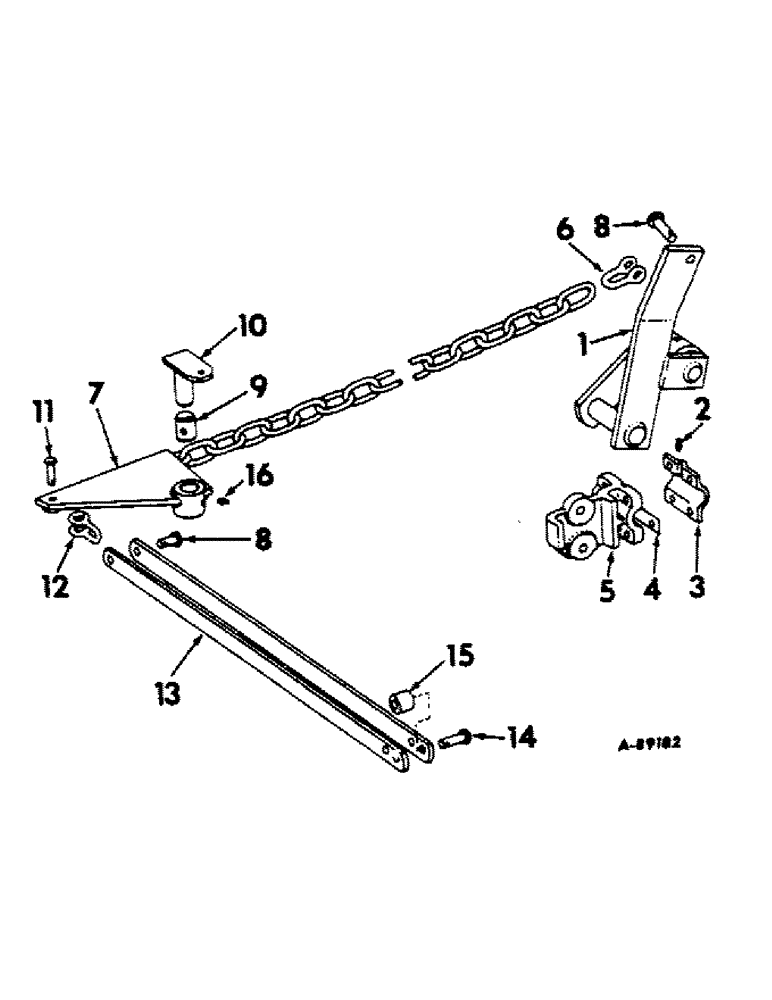

Запчасти Case IH 230 (J-05) - MECHANICAL LIFT

1

486743R1

LEVER

ASSY, lifting

1шт.

2

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 45 deg angle drive type lub

1шт.

3

462736R1

CLAMP

BLOCK

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 C-Z hex-hd mach

4шт.

12377

WASHER

NUT, 3/8-16 C-Z hex.

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

486750R1

SHIM

bracket, or as required

10шт.

5

486742R2

BRACKET

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

455369R2

CLEVIS

1шт.

7

486751R91

PIVOT ASSY, gag

1шт.

8

464624R1

HEADED PIN,1/2" x 1 15/16"

PIN, 1/2 x 1-15/16 C-Z std-hd

2шт.

16791R1

COTTER PIN

PIN, 3/16 x 1 cot.

2шт.

9

454154R1

BUSHING

1шт.

10

486754R1

PIVOT ASSY

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

2шт.

113001

SCREW, 1/2-13 x 2-1/2 C-Z sq-hd cone-pt set

1шт.

11

21380R1

PIN, 1/2 x 1-5/16 C-Z std-hd

1шт.

16791R1

COTTER PIN

PIN, 3/16 x 1 cot.

1шт.

12

487199R1

CLEVIS, mechanical lift

1шт.

13

486758R1

BAR, lift

2шт.

14

473748R1

AXLE PIN,1/2" x 2 7/16"

PIN, 1/2 x 2-7/16 C-Z std-hd

1шт.

16791R1

COTTER PIN

PIN, 3/16 x 1 cot.

1шт.

15

465986R1

BUSHING

1шт.

16

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg angle self tapping in gag pivot

1шт.
