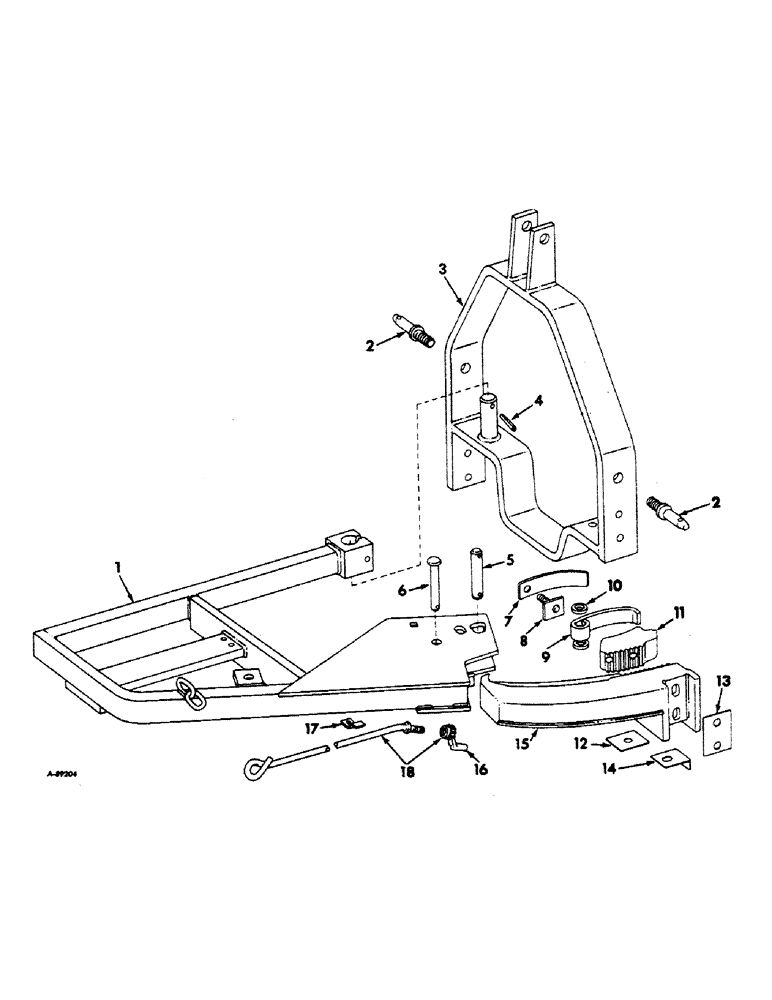

Запчасти Case IH 230 (J-03) - MAIN FRAME, HITCH AND RELATED PARTS

1

486722R1

FRAME ASSY

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2 x 3-1/2 hex-hd mach

1шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 nylon insert

1шт.

2

525921R1

STUD

PIN, link

2шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex.

2шт.

131047

WASHER,7/8"

7/8"

2шт.

3

486734R1

HITCH ASSY

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 hex-hd mach

2шт.

19606R1

NUT,5/8"-11, GB

5/8-11 nylon insert

2шт.

157497R1

WASHER, 1.531 x 2.5 x .219

1шт.

4

17086R1

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

5

486732R1

SHAFT, roller

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

522473R1

WASHER

49/64 x 1-3/4 x 11 ga

2шт.

6

W5262

HEADED PIN,3/4" x 3"

PIN, 3/4 x 3 std-hd

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

524454R1

VALVE SPRING

SPRING, spring helper lower

1шт.

8

481405R91

SCREW ASSY

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 nylon insert

1шт.

9

524356R1

SPRING

trip

1шт.

10

372465R1

WASHER

trip spring

2шт.

11

486739R1

SECTOR, lead

1шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 hex-hd mach

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z two-way hex. lock

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

12

487201R1

SHIM, hitch .030, or as required, between frame support and lift bracket

1шт.

13

487200R1

SHIM, hitch, or as required, between hitch bar & lift bracket

1шт.

14

488526R1

SHIM, breakaway - .030, or as required, between frame support and breakaway arm

1шт.

15

486760R1

ARM, breakaway

1шт.

15073R1

BOLT, 1/2 x 2 sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 hex. jam

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z two-way hex. lock

1шт.

113001

SCREW, 1/2-13 x 2-1/2 sq-hd cone-pt set

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16

M487

CRANK

stay rod

1шт.

17

M42726

SPRING, stay rod holder

1шт.

19427R1

BOLT

3/8 x 7/8 cd-pltd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

481135R11

ROD W/CRANK, stay

1шт.
