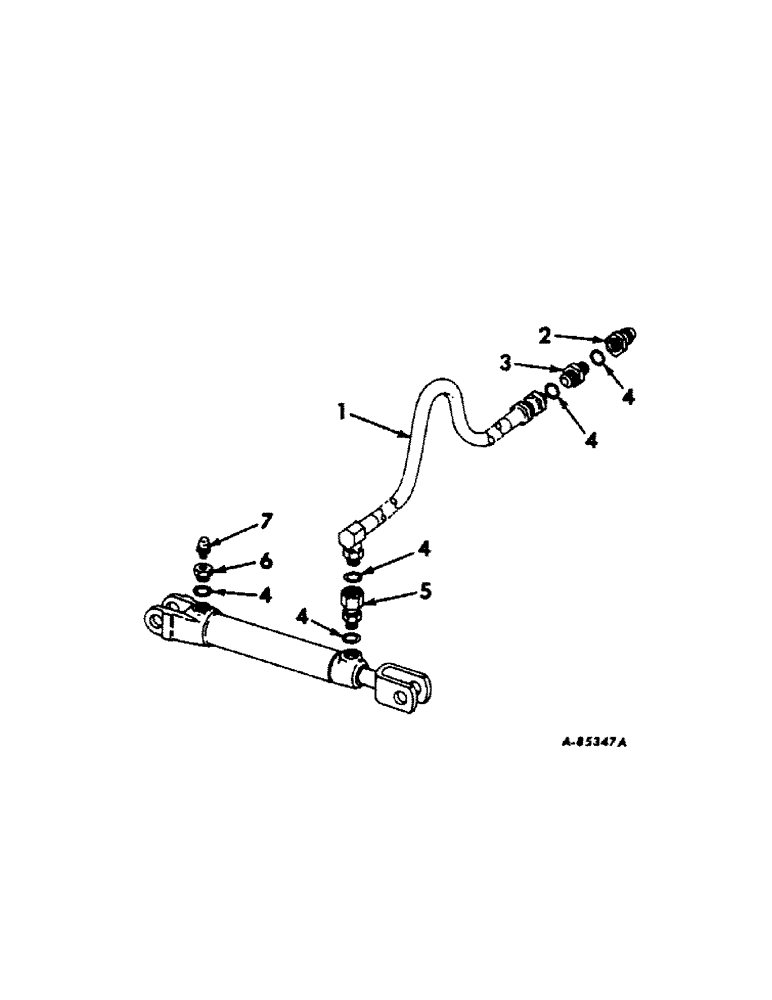

Запчасти Case IH 230 (J-13[A]) - HYDRAULIC CYLINDER AND CONNECTIONS

1

653338R91

HOSE, 1/2 ID x 76 in.

1шт.

2

395149R1

QUICK MALE COUPLING

COUPLING, 7/8-14 str self-sealing male

1шт.

3

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

hyd 37 deg flared, 7/8-14 thd steel C-Z

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

3шт.

5

526251R91

UNION

RESTRICTOR, swivel type

1шт.

6

481436R1

UNION, breather

1шт.

7

464989R1

VENT

BREATHER

1шт.
