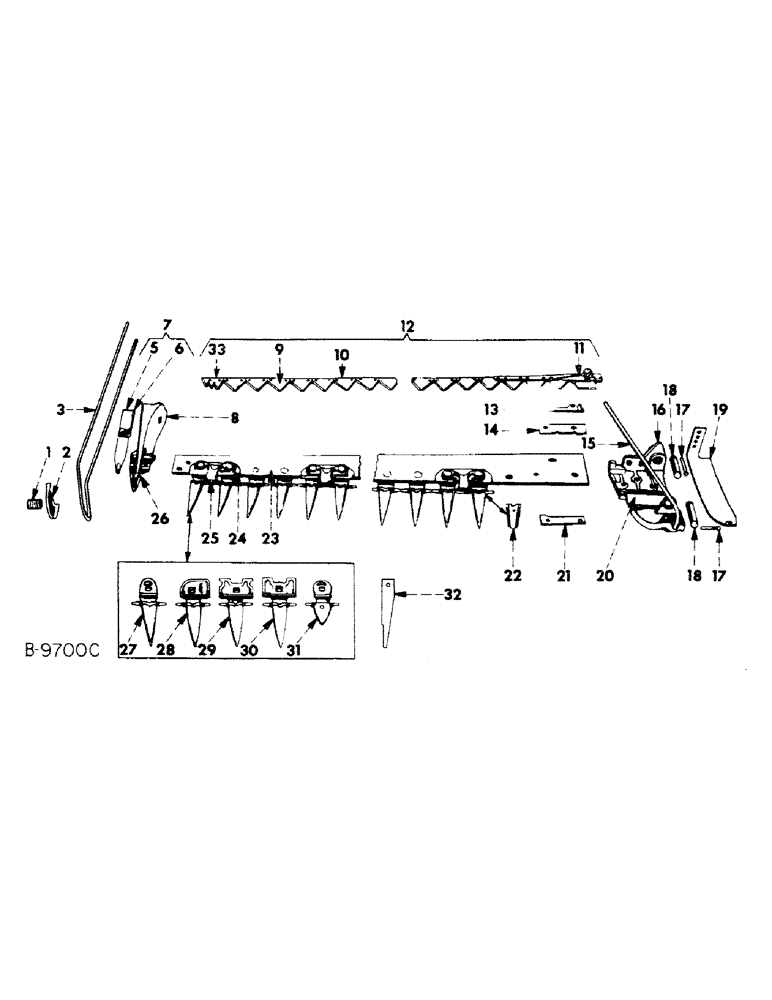

Запчасти Case IH 22 (Q-09) - GRASS ROD, INNER AND OUTER SHOES, CUTTER BARS, KNIVES AND GUARDS

LEVEL CUT BAR, 4-1/2 and 5 ft. with MD989Z or 484000R11 guards, consists of all unmarked parts and those marked unit A

1шт.

WEED BAR, 4-1/2 and 5 foot with MC2041Z guards, consists of all unmarked parts and those marked unit B

1шт.

CARDO BAR, 4-1/2 and 5 foot with ZA53Y guards, consists of all unmarked parts and those marked unit C

1шт.

WEED BAR, 4-1/2 and 5 foot with 457676R21 forged guards equipped with ledger plates, consists of all unmarked parts and those marked unit D

1шт.

WEED BAR, 4-1/2 and 5 foot with 457743R91 guard equipped with chromium plated ledger plates, consists of all unmarked parts and those marked unit E

1шт.

1

M1015

SPRING

grass rod tension

1шт.

18942R1

BOLT,1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z sq-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 cdp hex. lock

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

2

455575R1

CLAMP

outer shoe grass rod, Serial Range: 1959-1960

1шт.

2

458979R1

CLAMP

grass rod, 1960 and since

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22942R1

PIN, 1/4 x 3/4 C-Z cot.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

455574R1

FORK

ROD, outer shoe grass, Serial Range: 1959-1960

1шт.

3

463326R12

ROD ASSY.

ROD, outer shoe grass, 1960 and since

1шт.

17657R1

BOLT, 1/2-13 x 3-1/4 dld hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

4

Not used in this application

1шт.

5

SOLE, outer shoe, not serviced separately, order M259X

1шт.

6

BRACKET, outer shoe sole, not serviced separately, order M259X

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4

2шт.

7

M259X

SOLE

W/BRACKET, outer shoe

1шт.

D266X

BOLT AND NUT

W/NUT, 1/2-13 x 1-3/16 outer shoe

2шт.

102637

NUT,1/2"-13, G5

2шт.

8

455558R11

SHOE W/PLATE, outer, Serial Range: 1959-1960

1шт.

8

MF729AX

SHOE

W/PLATE, outer, 1960 and since

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, 7/16-14 x 1-5/16 no. plow outer shoe

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

826725C1

KNIFE SECTION

SECTION, smooth, replaces MB333, 18 for unti A 4-1/2 ft., 20 for unit A 5 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln ov-hd, two pound package, 29 for unit A 4-1/2 ft., 33 for unit A 5 ft.

1шт.

9

457604R2

ASSEMBLY

SECTION, smooth cr-pltd, 20 for unit A 5 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln ov-hd, 33 for unit A 5 ft., two pound package

1шт.

9

826723C1

KNIFE SECTION

SECTION, underserrated, replaces ME333, 18 for unit A 4-1/2 ft., 20 for unit A 5 ft.

1шт.

990817R91

RIVET

no. 6 x 17/32 pln o/hds, 29 for unit A 4-1/2 st., 33 for unit A 5 ft., one pound package

1шт.

9

457606R2

KNIFE SECTION

SECTION, underserrated cr-pltd, 20 for unit A 5 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln ov-hd, 33 for unit A 5 ft., two pound package

1шт.

9

826724C1

KNIFE SECTION

SECTION, smooth, replaces M3331/2, 18 for units B, C and D 4-1/2 ft., 20 for units B, C and D 5 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln ov-hd, 29 for units B, C and D 4-1/2 ft., 33 for units B, C and D 5 ft., two pound package

1шт.

9

457605R2

KNIFE SECTION

SECTION, smooth cr-pltd, 20 for units B, C and E 5 ft.

1шт.

961059R91

RIVET, no. 6 x 5/8 pln ov-hd, 33 for units B, C and E 5 ft., two pound package

1шт.

9

826722C1

KNIFE SECTION

SECTION, underserrated, replaces M22831, 18 for units B, C and D 4-1/2 ft., 20 for units B, C and D 5 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln ov-hd, 29 for units B, C and D 4-1/2, 33 for units B, C and D 5 ft., two pound package

1шт.

9

457607R2

KNIFE SECTION

SECTION, underserrated cr-pltd, 20 for units B, C and E 5 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln ov-hd, 33 for units B, C and E 5 ft., two pound package

1шт.

10

M536A

ROD

BACK, knife, 4-1/2 ft.

1шт.

10

M537A

KNIFE BACK

BACK, knife, 5 ft.

1шт.

11

MC139

HEAD

knife, unit A

1шт.

11

MA999

HEAD

knife, units B, C, D and E

1шт.

MA133M

RIVET,23.81mm OD x 139.7mm L

no. 5-1/2 x 15/16 ov-hd, one pound package

10шт.

12

KNIFE ASSY, smooth 4-1/2 ft., unit A, discontinued for service, composed of (1) back M536A, (1) head MC139, (18) section, smooth 826725C1

1шт.

12

MB332

KNIFE

ASSY, smooth, 5 ft., unit A, composed of (1) back M537A, (1) head MC139, (20) sections, smooth 826725C1

1шт.

12

459261R91

KNIFE W/SMOOTH CR-PLTD SECTIONS ASSY, 5 ft., unit A, composed of (1) back M537A, (1) head MC139, (20) section smooth 457604R2

1шт.

12

KNIFE ASSY, underserrated 4-1/2 ft., unit A, discontinued for service, componsed of (1) back M536A, (1) head MC139, (18) section, underserrated 826723C1

1шт.

12

M22668

KNIFE

ASSY, underserrated 5 ft., unit A, composed of (1) back M537A, (1) head MC139, (20) sections, underserrated 826723C1

1шт.

12

MA1079

KNIFE ASSY, smooth 4-1/2 ft., units B, C, D and E, composed of (1) back M536A, (1) head MA999, (18) section, smooth 826724C1

1шт.

12

MB1080

KNIFE

ASSY, smooth 5 ft., units B, C and D, composed of (1) back M537A, (1) head MA999, (19) section, smooth 826724C1, (1) section smooth heavy triplet end 467855R11

1шт.

12

459263R91

KNIFE W/SMOOTH CR-PLTD SECTIONS ASSY, 5 ft, units B, C and E, composed of (1) back M537A, (1) head MA999, (20) section smooth 457605R2

1шт.

12

M22834

KNIFE

ASSY, underserrated 4-1/2 ft., units B, C, D and E composed of (1) back M536A, (1) head MA999, (18) section, underserrated 826722C1

1шт.

12

MA22835

KNIFE

ASSY, underserrated 5 ft., units B, C and D, composed of (1) back M537A, (1) head MA999, (19) section underserrated hv triplet end 467456R11

1шт.

12

459262R91

KNIFE W/UNDERSERRATED CR-PLTD SECTIONS ASSY, 5 ft., units B, C and E, composed of (1) back M537A, (1) head MA999, (20) section, underserrated 457607R2

1шт.

13

ME652

SUPPORT

CAP, knife rear

1шт.

MB1136

SHIM,.0179" Thk

Knife head cap (or as required) .0179" Thk

7шт.

14

MB22863

BAR

PLATE, inner shoe wearing

1шт.

15

MA22215X

ROD ASSY.

ROD W/NUT, inner shoe fender

1шт.

16

451388R21

SHOE

W/PLATE, inner

1шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

15765R1

CARRIAGE BOLT,#4, 1/2" - 13 x 1 1/2", Gr 2

BOLT, PLOW, 1/2"-13 x 1 1/2", G2 (#4)

1шт.

15782R1

CARRIAGE BOLT,#4, 1/2" - 13 x 2", Gr 2

BOLT, PLOW, (#4) 1/2"-13 x 2", G2

2шт.

102637

NUT,1/2"-13, G5

3шт.

17

108645

COTTER PIN

PIN, 1/4 x 1-3/8 cotter

2шт.

18

451387R1

PIN

inner shoe hinge, 3/4 x 3-1/8 in. headed, used w/inner shoe 451388R11

1шт.

18

547316R1

PIN

inner shoe hinge, 3/4 x 3.44 in. headed, used w/inner shoe, 451388R21

1шт.

19

451389R1

SOLE

inner shoe

1шт.

20

MB1263

LARGE PLATE

PLATE, front knife head cap serrated wearing

1шт.

12569R1

RIVET, 3/16 x 7/8 54 deg csk-hd

4шт.

21

451396R1

SUPPORT

CAP, knife head front

1шт.

Q701X

BOLT AND NUT

BOLT W/NUT, 3/8-16 x 1-3/8 no. 10 plow

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

4шт.

22

455634R1

PLATE

guard serrated ledger, 17 for units A, B and D 4-1/2 ft., 19 for units A, B and D 5 ft.

1шт.

22

PLATE, cardo guard ledger, discontinued for service, 17 for unit C 4-1/2 ft., 19 for unit C 5 ft.

1шт.

22

457608R1

CUTTER BAR

PLATE, guard serrated ledger cr-pltd, 19 for units A, B and E 5 ft.

1шт.

14022R1

RIVET

3/16 x 1-3/8 74 deg csk-hd, 1959 to 1962, 1 per plate

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 in. 74 deg csk-hd semi tubular, 1963 and since, 1 per plate, one pound package

1шт.

23

BAR, cutter, 4-1/2, discontinued for service

1шт.

23

453908R1

BAR, cutter, 5 ft.

1шт.

24

MC468

PLATE ASSY.

PLATE, knife wearing

5шт.

25

M1000

CLAMP

CLIP, low arch knife, 4 for units A and C

1шт.

25

MA812

SUPPORT

CLIP, low arch knife, cast iron, 1959 to 1975, 4 for units B, D and E

1шт.

25

544274R1

CLIP

low arch knife, sheet metal, 1975 and since, 4 for units B, D and E

1шт.

25

MD1000

CLAMP

CLIP, high arch knife, units A and C

1шт.

25

611759R1

KNIFE CLIP

CLIP, high arch knife, units B, D and E

1шт.

26

MA330

LARGE PLATE

PLATE, outer shoe serrated ledger

1шт.

990720R91

RIVET, 3/16 x 11/16 54 deg csk-hd, one pound package

1шт.

990717R91

RIVET, 3/16 x 1 in. 54 deg csk-hd, one pound package

1шт.

27

484000R11

GUARD

W/SERRATED LEDGER PLATE, 455634R1 assy, replaces MD22999, 17 for unit A 4-1/2 ft., 19 for unit A 5 ft.

1шт.

A200AX

BOLT W/NUT, 7-16-14 x 1-3/16 guard, 7 for unit A 4-1/2 ft., 9 for unit A 5 ft.

1шт.

M806

PLOW BOLT

BOLT, 7/16-14 x 1-9/16 no. 3 plow guard, 10 for unit A

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex., 1 per bolt

1шт.

28

MC2043Z

GUARD

W/SERRATED LEDGER PLATE, 455634R1 assy, outer, unit B

1шт.

28

457745R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1 assy, outer, unit E

1шт.

28

458793R21

GUARD W/SERRATED LEDGER PLATE, 455634R1 assy, forged outer, unit D

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, 7/16-14 x 1-21/32 no. 3 plow guard

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

29

MC2041Z

GUARD

GUARD W/SERRATED LEDTER PLATE, 455634R1 assy, 15 for unit B 4-1/2, 17 for unit B 5 ft.

1шт.

29

457743R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1 assy, 15 for unit E 4-1/2 ft., 17 for unit E 5 ft.

1шт.

29

457676R21

GUARD

W/SERRATED LEDGER PLATE, 455634R1 assy, forged, 15 for unit D 4-1/2 ft., 17 for unit D 5 ft.

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, 7/16-14 x 1-5/16 no. 3 plow guard, 6 for units B, D and E 4-1/2 ft., 8 fot units B, D and E 5 ft.

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, 7/16-14 x 1-21/32 no. 3 plow guard, 9 for units B, D and E

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex., 1 per bolt

1шт.

30

MC2042Z

GUARD

W/SERRATED LEDGER PLATE, 455634R1 assy, inner, units B and E

1шт.

30

458792R21

GUARD W/SERRATED LEDTER PLATE, 455634R1 assy, forged inner, unit D

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, 7/16-14 x 1-5/16 no. 3 plow guard

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

31

ZA53Y

GUARD W/LEDGER PLATE, cardo, 17 for unit C 4-1/2 ft., 19 for unit C 5 ft.

1шт.

A200AX

BOLT W/NUT, 7/16-14 x 1-3/16 guard short, 7 for unit C 4-1/2 ft., 9 for unit C 5 ft.

1шт.

M806

PLOW BOLT

BOLT, 7/16-14 x 1-9/16 no. 3 plow guard long, 10 for unit C

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex., 1 per bolt

1шт.

32

469975R3

GAUGE

ledger plate, for aligning guards and ledger plates with cutter bar

1шт.

33

467455R11

VALVE

SECTION W/RIVETS, smooth heavy triplet end cr-pltd, units B, C and D

1шт.

33

467456R11

KNIFE SECTION

SECTION W/RIVETS, underserrated heavy triplet end cr-pltd, units B, C and D

1шт.

MB133

RIVET

5-1/2 x 5/8 cdp oval-hd, one pound package

2шт.
