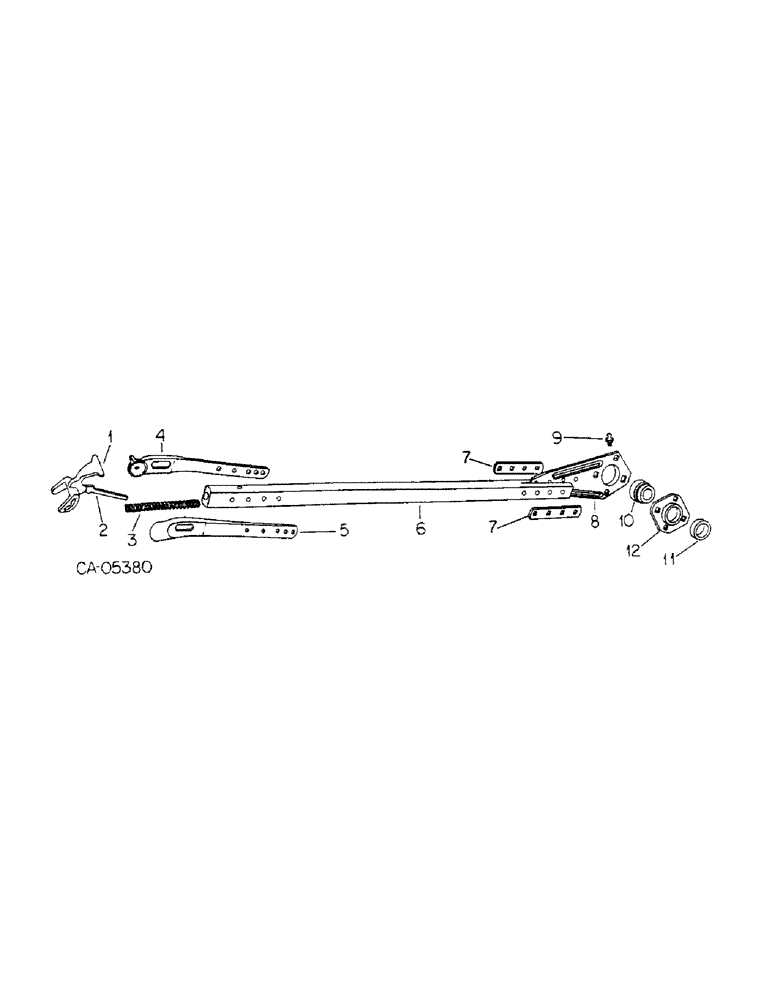

Запчасти Case IH 22 (Q-08) - BALL BEARING PITMAN, 1972 AND SINCE

57196C91

PITMAN ASSY, ball bearing composed of the following

1шт.

1

MC1579X

LATCH

FORK ASSY, pitman latch, composed of (1) fork MC1579, (1) pin Q3785, (1) plunger MA1573

1шт.

2

MA1573

PLUNGER

pitman spring

1шт.

Q3785

RIVET

PIN, 3/16 x 17/32 spec-hd

1шт.

3

MA1574

SPRING

pitman plunger, 24 coils

1шт.

4

M1578

STRAP

pitman rear

1шт.

180087

SPRING

SCREW, 5/16-18 x 2 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

5

MA1577

STRAP

pitman front

1шт.

6

57197C1

PITMAN

1шт.

7

481170R1

BAR

STRAP, pitman

2шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16-18 x 1-3/4 znd sq-nk crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

8

481169R1

FLANGE

pitman bearing

1шт.

9

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

10

939475R92

BEARING ASSY

pitman ball

1шт.

11

557115R11

COLLAR

COLLAR W/SET SCREW, pitman bearing

1шт.

12

462305R1

FLANGE

pitman bearing

1шт.

22475R1

BOLT, 3/8-16 x 5/8 znd sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.
