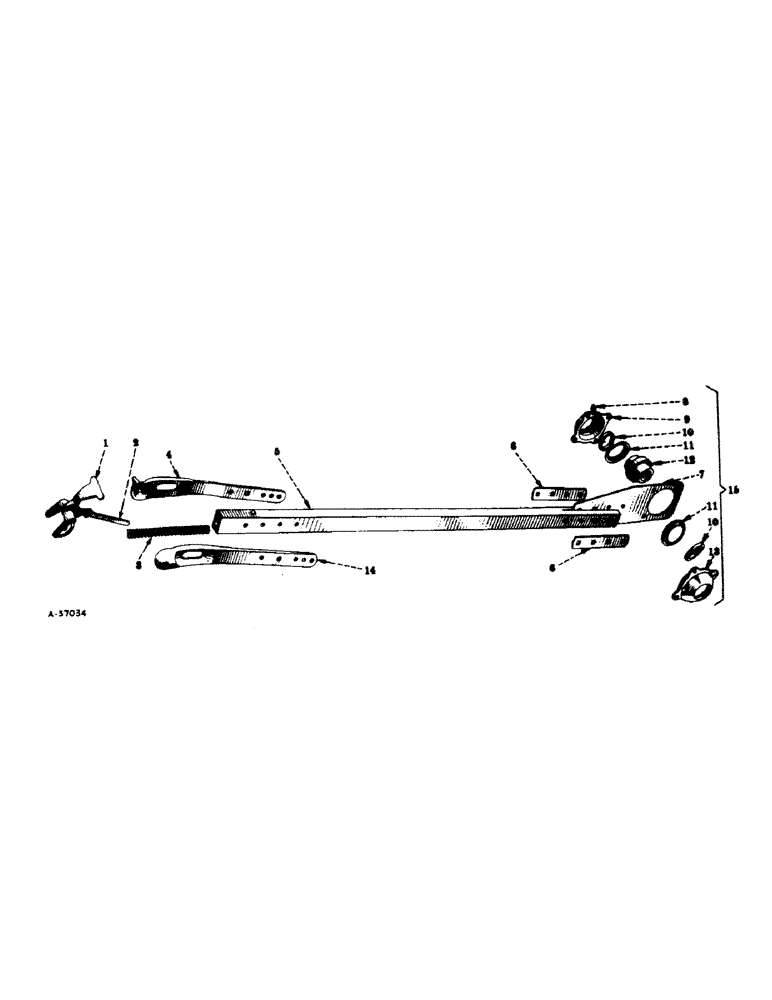

Запчасти Case IH 22 (Q-07) - BALL BEARING PITMAN, 1959 TO 1972

1

MC1579X

LATCH

FORK ASSY, pitman latch, composed of (1) fork MC1579 (NSS), (1) pin Q3785, (1) plunger MA1573

1шт.

2

MA1573

PLUNGER

pitman spring

1шт.

Q3785

RIVET

PIN, 3/16 x 17/32 spec-hd

1шт.

3

MA1574

SPRING

pitman plunger, 24 coils

1шт.

4

M1578

STRAP

pitman rear

1шт.

5

451392R1

WOOD PITMAN

PITMAN

1шт.

5

453467R94

PITMAN ASSY, ball bearing, composed of (1) box 455312R91, (1) fitting 109461, (1) fork MC1579, (1) pitman 451392R1, (1) plunger MA1573, (1) spring M1574, (1) strap front MA1577, (1) strap rear MA1578, (2) washer MA1581

1шт.

6

MA1581

STRIP

PLATE, Pitman washer

2шт.

22883R1

BOLT, 5/16 x 1-5/8 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

7

455311R1

SUPPORT

CONNECTION, pitman box

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

9

455310R1

CAP

pitman bearing

1шт.

10

M32933

WASHER

1-39/64 ID x 2 OD x 1/4 thick felt

2шт.

11

M32779

RETAINER

felt washer

2шт.

12

ST313

BALL BEARING,25.4mm ID x 62mm OD x 52.39mm W

BEARING, ball

1шт.

13

455309R1

HOUSING

pitman bearing

1шт.

22883R1

BOLT, 5/16 x 1-5/8 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

MA1577

STRAP

pitman front

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

SCREW, 5/16-18 x 2 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

15

455312R91

BOX

ASSY, pitman

1шт.
