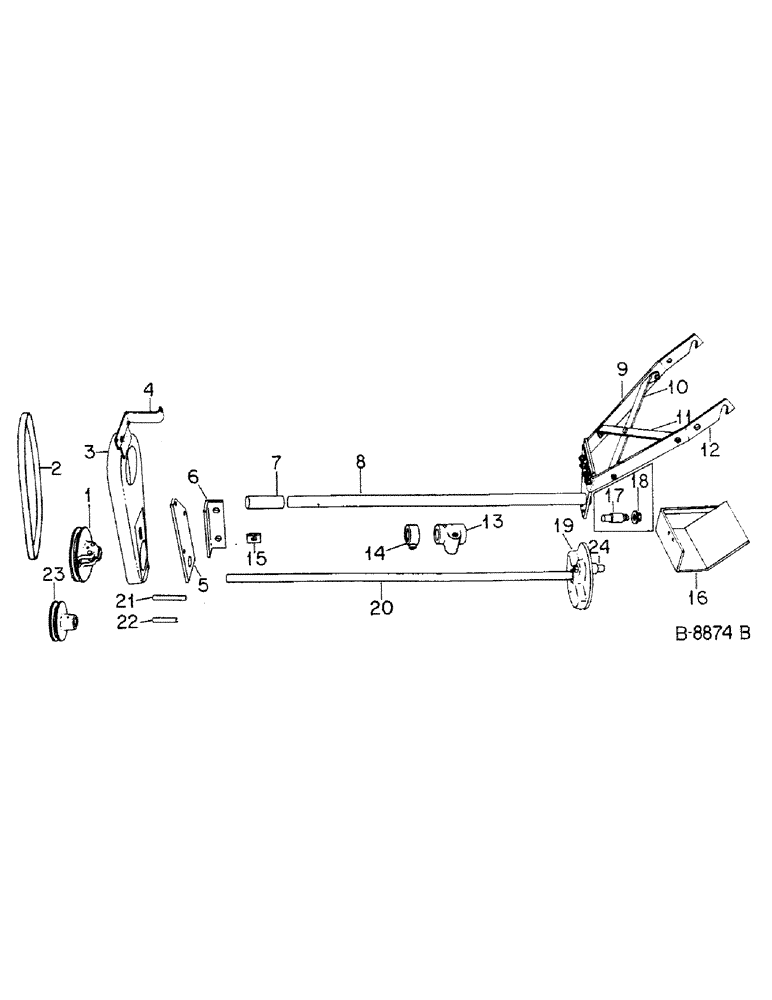

Запчасти Case IH 22 (Q-02) - FLYWHEEL, FLYWHEEL SHAFT, PULLEYS AND DRIVE SHIELDS

1

455999R1

PULLEY

power-take-off drive

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

455992R1

BELT,0.66" W

Drive 0.66" W

1шт.

3

455993R11

SHIELD W/PRODUCT GRAPHIC, 56630C1, PTO drive

1шт.

19677R1

BOLT, 3/8 x 4-1/4 C-Z hex-hd mach

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

M42506

ADAPTER, drive shield, to be used when tractor does not have belt take off

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

22886R1

BOLT, 7/16 x 8-3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

5

455996R11

PLATE ASSY, belt drive adjusting

1шт.

6

455995R1

ANGLE

BRACKET, belt drive adjusting

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap, one used on regular drawbar and two used on fast hitch

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z, used on fast-hitch drawbar only

2шт.

7

453183R1

BUSHING,28.68mm ID x 33.55mm OD x 88.9mm L

flywheel shaft

2шт.

8

456002R91

TUBE ASSEMBLY, flywheel shaft

1шт.

9

456004R2

SUPPORT TUBE

BRACKET, flywheel shaft tube support LH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z two-way lock

2шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

456007R1

BRACE, front support bottom

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

11

456006R1

BRACE, top front support

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

2шт.

12

456005R2

SUPPORT TUBE

BRACKET, flywheel shaft tube support RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z two-way lock

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/4 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

451370R2

COUPLING

HINGE, coupling bar

1шт.

14

451374R1

COLLAR, coupling bar hinge retainer

1шт.

21407R1

SCREW

3/8-16 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

15

614119C1

SPACER, belt drive adjusting bracket

1шт.

16

451371R92

SHIELD

ASSY, flywheel

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 C-Z hex. lock

2шт.

17

80072C1

NUT, wrist pin

1шт.

18

M90MX

STUD

PIN ASSY, wrist, 1959 to 1972, used w/flywheel, 456102R91

1шт.

19

57194C91

FLYWHEEL ASSY, replaces 456102R91 on machines built 1959 to 1972 by also ordering pitman assy, 57196C91

1шт.

20

456001R1

SHAFT, flywheel

1шт.

Q488

KEY

9/32 x 3/8 x 1-7/16 str

1шт.

Q3714

KEY, 5/16 x 5/16 x 1-1/4 tapered Gib, 5/16" Sq x 1 1/4" Tap

1шт.

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga C-Z, or as required

6шт.

21

M42518

SPACER, drive shield adapter, to be used when tractor does not have belt take-off

1шт.

22

455997R1

SPACER, belt drive shield

1шт.

23

456000R1

PULLEY, flywheel shaft

1шт.

22969R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

1шт.

24

57195C1

PIN, wrist, 1972 and since, used w/flywheel, 57194C91

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , For hinge, 451370R2 1/8"-27 x .66 lg

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS taper str lub, for tube 456002R91

2шт.
