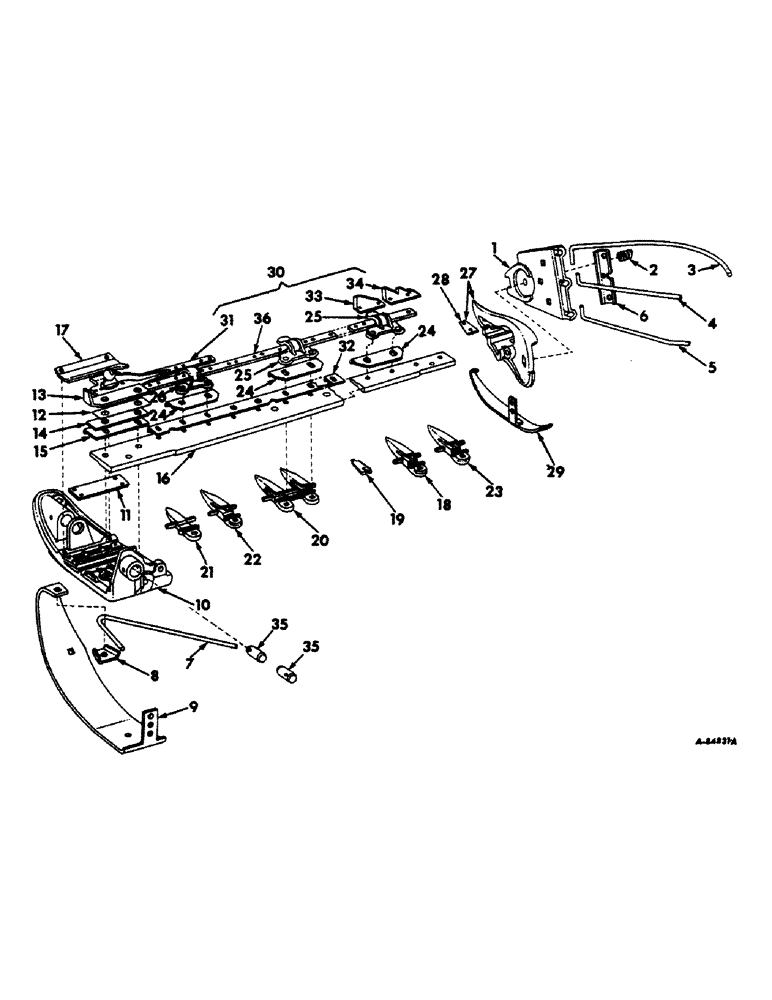

Запчасти Case IH 200 (F-11) - CUTTER BAR, KNIVES AND RELATED PARTS

1

471475R1

BRACKET

CLAMP, outer shoe grass rod

1шт.

2

M1015

SPRING

grass rod tension

1шт.

13416R1

BOLT

1/2 x 3 sq-hd mach

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

455388R1

NUT

1/2-13 hex. lock

1шт.

3

471476R1

ROD

outer shoe grass upper

1шт.

4

471477R1

ROD

outer shoe grass center

1шт.

5

471478R1

ROD

outer shoe grass lower

1шт.

6

471479R1

CHANNEL

CLIP, outer shoe grass rod

1шт.

381141R1

BOLT, 7/16 x 1-1/2 long sq-nk crg

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

2шт.

7

463405R1

ROD

inner shoe grass

1шт.

8

461383R1

CLAMP

CLIP, inner shoe grass rod

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2 x 1-1/2 sq-nk crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

102637

NUT,1/2"-13, G5

1шт.

9

481190R1

SHOE

SOLE, inner shoe

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2 x 1-1/2 sq-nk crg

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 sq-nk crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

16038R1

WASHER

17/32 x 1 x 11 ga

1шт.

102637

NUT,1/2"-13, G5

3шт.

10

481195R11

SHOE W/WEARING PLATE, inner

1шт.

Q701

PLOW BOLT

BOLT, 3/8-16 x 1-3/8 t-hd plow

2шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. MC-Lean-Fogg lock

2шт.

15783R1

CARRIAGE BOLT,#4, 5/8" - 11 x 2", Gr 2

BOLT, 5/8-11 x 2 no. 4 plow

1шт.

15796R1

CARRIAGE BOLT,#4, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8-11 x 2-1/2 no. 4 plow

2шт.

667927R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. MC-Lean-Fogg lock

3шт.

11

MB1263

LARGE PLATE

PLATE, knife head cap front wearing

1шт.

990717R91

RIVET, 3/16 S x 1 54 deg csk-hd, one pound package

4шт.

12

MB1136

SHIM,.0179" Thk

Knife head cap (or as required) .0179" Thk

4шт.

13

M22161

BAR

CAP, knife head rear upper

1шт.

14

M22162

BAR

CAP, knife head rear lower

1шт.

15

MB22863

BAR

PLATE, knife head cap rear wearing

1шт.

16

MA42359

BAR, cutter

1шт.

M805

BOLT, 7/16-14 x 1-5/16 no. 3 plow guard, short guard

13шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

13шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, 7/16-14 x 1-21/32 no. 3 plow guard, long guard

14шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

14шт.

17

MA1239

PLATE

CAP, knife head front

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

4шт.

18

MC2041Z

GUARD

GUARD W/LEDGER PLATE, heavy

24шт.

19

455634R1

PLATE

LEDGER PLATE, 1 per guard, 2 for double pointed guard

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 74 deg csk-hd tubular, 2 per ledger plate, one pound package

1шт.

14022R1

RIVET

3/16 x 1-3/8 74 deg csk-hd

1шт.

20

483500R3

GUARD

double steel Windrower

12шт.

REF: #20 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

21

472717R2

GUARD

plain, used w/double pointed guard, 2 used with MC2041Z & 484000R11

3шт.

22

MC2042Z

GUARD

W/PLAIN SERR. LEDGER PLATE, inner, used w/guard MC2041Z

1шт.

22

484000R11

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, knife, for cutter bar w/3 in. row spacing

1шт.

23

MC2043Z

GUARD

W/LEDGER PLATE, outer, used w/guard, MC2041Z

1шт.

24

MC468

PLATE ASSY.

PLATE, wearing

7шт.

25

MA812

SUPPORT

HOLDER, low arch knife

6шт.

26

MB812

CLAMP

HOLDER, high arch knife

1шт.

27

MF729X

SHOE

W/LEDGER PLATE, outer

1шт.

M805

BOLT, 7/16-14 x 1-5/16 no. 3 plow

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

28

MA330

LARGE PLATE

LEDGER PLATE, outer shoe serrated

1шт.

990720R91

RIVET, 3/16 x 11/16 54 deg csk-hd, one pound package

1шт.

990717R91

RIVET, 3/16 x 54 deg csk-hd, one pound package

1шт.

29

M259X

SOLE

W/BRACKET, outer shoe

1шт.

D266

BOLT (SPREADER)

BOLT, 1/2-13 x 1-3/16 special sq-hd

1шт.

102637

NUT,1/2"-13, G5

1шт.

30

MB1082

KNIFE

W/HEAVY SMOOTH SECTION

1шт.

30

MA22837

KNIFE

W/HEAVY UNDERSERRATED SECTION

1шт.

30

MA22670

KNIFE ASSY

KNIFE W/HEAVY UNDERSERRATED SECTION

1шт.

31

MA999

HEAD

knife, for knives w/heavy sections

1шт.

31

MC139

HEAD

knife, for knives w/regular sections

1шт.

12712R1

RIVET

no. 5-1/2 x 15/16 small ov-hd

10шт.

32

455754R1

PLATE, 2 ft. knife wearing

2шт.

32

455755R1

PLATE, 3 ft. knife wearing

1шт.

33

826724C1

KNIFE SECTION

SECTION, heavy smooth knive, replaces M3331/2

27шт.

33

826722C1

KNIFE SECTION

SECTION, heavy underserrated knife, replaces M22831

27шт.

33

826723C1

KNIFE SECTION

SECTION, underserrated knive, replaces ME333

27шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 2 per section, two pound package

1шт.

34

467455R11

VALVE

SECTION W/RIVETS, smooth heavy triplet end cr-pltd

1шт.

34

467456R11

KNIFE SECTION

SECTION W/RIVETS, underserrated heavy triplet end cr-pltd

1шт.

34

467458R11

KNIFE SECTION

SECTION W/RIVETS, regular underserrated triplet end cr-pltd

1шт.

MB133

RIVET

no. 5-1/2 x 5/8 small ov-hd cd-pltd, one pound package

2шт.

35

451492R2

PIN

sector outer

2шт.

657196R1

PIN

1/4 x 2 slt spring

2шт.

36

M537C

BAR

BACK, 7 foot knive

1шт.

472036R91

FLARING TOOL ASSY

1шт.

472038R1

ANVIL, rivet

1шт.

472039R1

TOOL, flaring

1шт.

469975R3

GAUGE

ledger plate

1шт.
