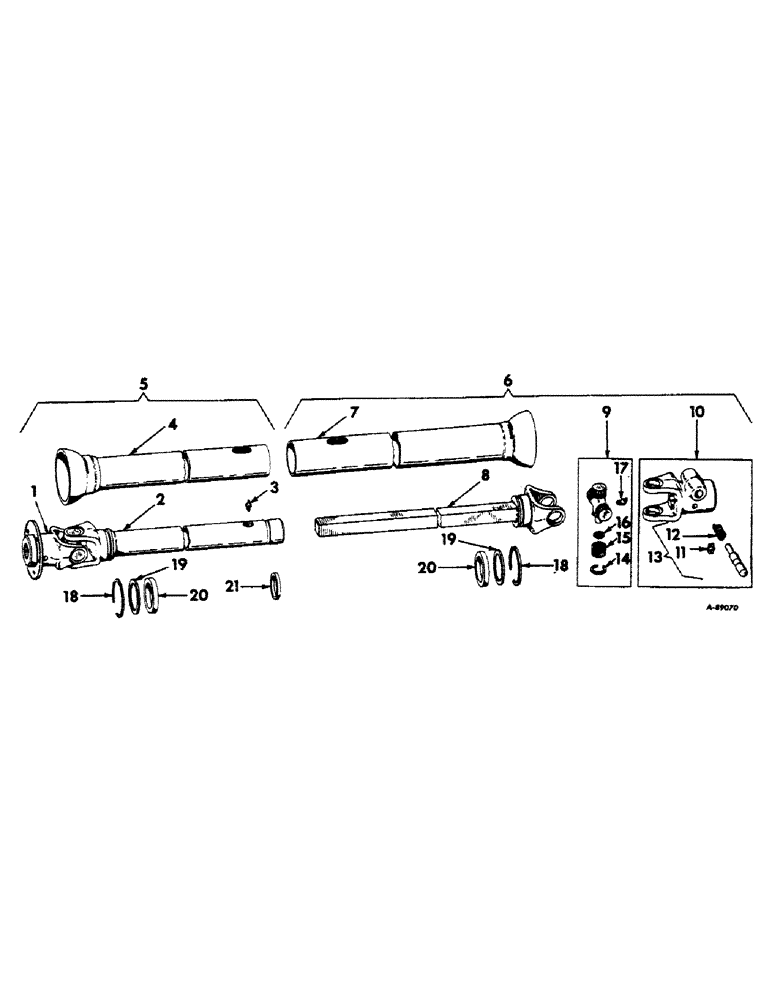

Запчасти Case IH 200 (F-09) - POWER DRIVE ATTACHMENT, FOR USE W/HAY CONDITIONERS

Service parts for tractors w/2-pt fast hitch & 540 RPM/PTO used w/hay conditioners other than Farmall 200, 230, 240, 504, 706 & 806 tractors, also for tractors w/fixed drawbars, other than Farmall 504, 706, 806 & International 504, 606, 706 & 806 tractors, consists of all parts not marked by unit designation & those marked unit A

1шт.

Service parts for Farmall 200, 230, 240, 504, 706 and 806 and International 240, 300, 350, 706 and 806 tractors w/two-point fast hitch and Farmall 504, 706, 806 and International 504, 606, 706 and 806 tractors w/fixed drawbar and IH or competitive PTO tractors with catagory 1 or 2 three point hitch w/two side stabilizers adjustable rub plates for lower links with 540 RPM PTO used w/hay conditioner, consist of all parts not marked by unit designation & those marked unit B

1шт.

1

485756R1

YOKE, flange

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 sq-hd cone-pt set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

2

465266R1

YOKE W/SLEEVE ASSY, tube, unit A

1шт.

2

470265R1

TUBE

YOKE W/SLEEVE ASSY, tube, unit B

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 str lub

1шт.

4

465267R1

SHIELD, inner, unit A

1шт.

4

470266R2

SHIELD

inner, unit B

1шт.

5

485735R91

JOINT ASSEMBLY, rear half, unit A, implement end

1шт.

5

485738R91

JOINT ASSEMBLY, rear half, unit B, implement end

1шт.

6

470261R92

JOINT

ASSEMBLY, front half, unit B, tractor end

1шт.

6

465263R91

JOINT ASSEMBLY, front half, unit A, tractor end

1шт.

7

465268R1

SHIELD, outer, unit A

1шт.

7

470264R2

SHIELD

outer, unit B

1шт.

8

465265R1

YOKE W/SHAFT, unit A

1шт.

8

470263R2

YOKE

W/SHAFT, unit B

1шт.

9

659262R91

U-JOINT SPIDER

CENTER CROSS ASSEMBLY, Rockwell-std

1шт.

9

480486R91

CROSS

CENTER CROSS ASSEMBLY, chain belt

1шт.

10

459463R91

YOKE

ASSEMBLY, quick detachable

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

13

455346R21

PIN

ASSEMBLY, lock pin

1шт.

14

661657R1

RING

SNAP RING, Rockwell-std

8шт.

14

606177R1

SNAP RING

SNAP RING, chain belt

8шт.

15

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

CUP ASSEMBLY, needle bearing, Rockwell-std

8шт.

15

480492R91

BEARING ASSY,0.8145" ID x 1.065" OD x 0.64"

CUP ASSEMBLY, needle bearing, chain belt

8шт.

16

661656R1

SEAL, cork oil, Rockwell-std

8шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 degree angle

2шт.

18

613436R1

CLAMP

RING, shield retaining

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

21

613439R1

BRACKET

SUPPORT, nylon

1шт.
