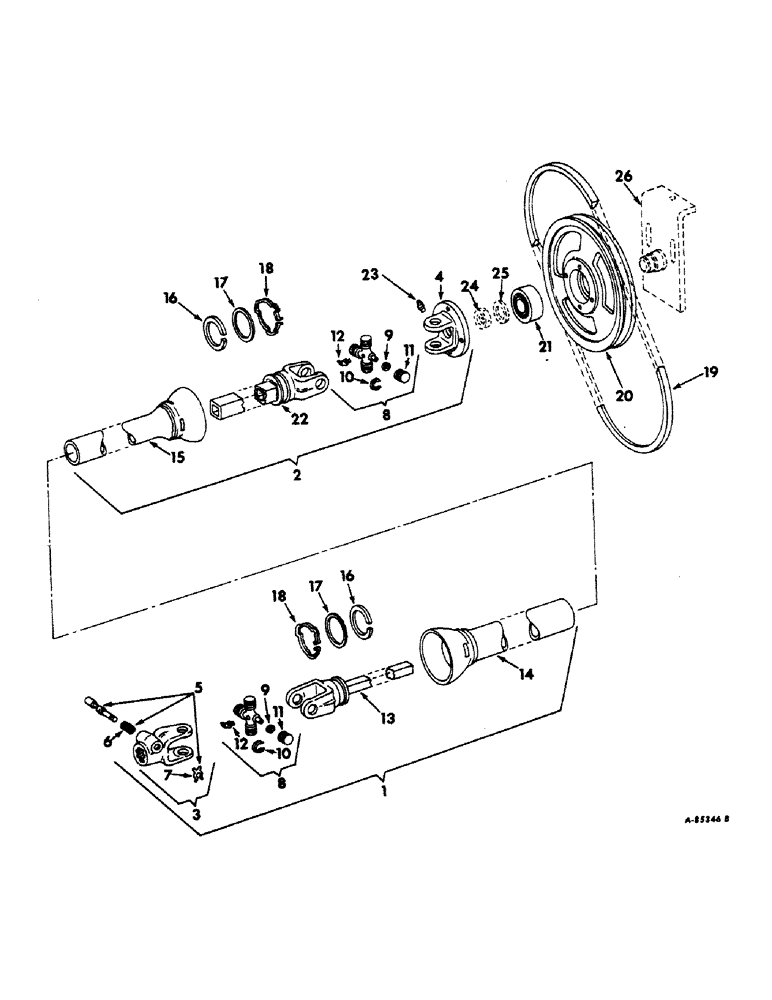

Запчасти Case IH 200 (F-07) - MOWER DRIVE AND RELATED PARTS, NOT FOR USE W/HAY CONDITIONERS

Service parts for all tractors w/540 RPM-PTO & two point hitch or fixed drawbar except Farmall 200, 230, 240, 504, 656, 706, 806 & International 240, 300, 350, 706 & 806 tractors, consists of all parts not marked by unit designation and those marked unit A

1шт.

Service parts for Farmall 200, 230, 240, 504, 656, 706, 806 & International 240, 300, 350, 706 & 806 tractors w/540 RPM-PTO & two point hitch or fixed drawbar or IH & competitive tractors with catagory I and II three point hitch w/side stabilizers, adjustable rub plates for lower links & 540 RPM-PTO, consist of all parts not marked by unit designation & those marked unit B

1шт.

Service parts for F & I-656, 706, 806 & competitive tractors w/ 1000 RPM independent PTO & two point hitch or fixed drawbar or catagory I or II three point hitch with side stabilizers or adjustable rub plates for lower links, consist of all parts not marked by unit designation & those marked unit C

1шт.

1

481353R91

JOINT ASSY, single universal shielded, unit A, tractor half

1шт.

1

481355R91

JOINT ASSY, single universal shielded, unit b, tractor half

1шт.

1

481357R91

JOINT ASSY, single universal shielded, unit C, tractor half

1шт.

2

481354R91

JOINT ASSY, single universal shielded, unit A, implement half

1шт.

2

481356R91

JOINT ASSY, single universal shielded, units B and C, implement half

1шт.

3

462492R91

YOKE

ASSY, quick detachable, units A & B, tractor half

1шт.

3

473539R91

YOKE ASSY, quick detachable, unit C, tractor half

1шт.

4

463356R1

YOKE

W/FLANGE, implement half

1шт.

5

455346R21

PIN

ASSY, lock

1шт.

6

631976R91

PIN

ASSEMBLY, lock, unit C

1шт.

6

455347R1

VALVE SPRING

SPRING, lock pin, unit A & B, tractor half

1шт.

6

587479R1

SPRING

lock pin, unit C, tractor half

1шт.

7

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock pin

1шт.

8

150635R92

SPIDER

KIT, center cross

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

2шт.

9

357425R1

CORK SEAL

cork oil

8шт.

10

357426R1

RING

snap

8шт.

11

661678R91

BEARING

CUP ASSY, needle

8шт.

12

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 pft 65 deg angle lub

2шт.

13

481362R91

YOKE W/SHAFT, unit A

1шт.

13

481366R91

YOKE W/SHAFT, unit B & C, tractor half

1шт.

14

481363R1

SHIELD, outer, unit A

1шт.

14

481367R1

SHIELD, outer, units B & C, tractor half

1шт.

15

481365R1

SHIELD, inner, unit A

1шт.

15

481369R1

SHIELD, inner, units B & C, implement half

1шт.

16

463014R1

RING

BEARING, nylon

2шт.

17

463015R1

THRUST WASHER

thrust

2шт.

18

463016R1

RING

snap

2шт.

19

483878R1

V-BELT,0.88" W x 49.70" L

Pulley drive 540 RPM PTO, Units A & B 0.88" W x 49.70" L

1шт.

19

459161R1

V-BELT, Pulley drive, 1000 RPM PTO, Unit C

1шт.

20

481159R1

PULLEY, drive 540 RPM PTO, units A & B

1шт.

20

481370R1

PULLEY, drive 1000 RPM PTO, unit C

1шт.

13291R1

BOLT, 3/8 x 1-1/2 sq-hd mach

4шт.

421144R1

NUT, 3/8-16 C-Z 2-way lock

4шт.

21

464267R91

BALL BEARING

drive pulley ball

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

321295R1

NUT, 5/8-18 esna stop LH

1шт.

22

481364R91

YOKE W/TUBE, unit A

1шт.

22

481368R91

YOKE W/TUBE, units B & C, implement half

1шт.

23

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg ang drive type lub

1шт.

24

NUT, 5/8-18 esna stop LH, refer to coupling frame, pendulum housing and related parts

1шт.

25

WASHER, 21/32 x 1-1/4 x 11 ga, refer to coupling frame, pendulum housing and related parts

1шт.

26

SUPPORT ASSY, drive pulley, refer to coupling frame, pendulum housing and related parts

1шт.
