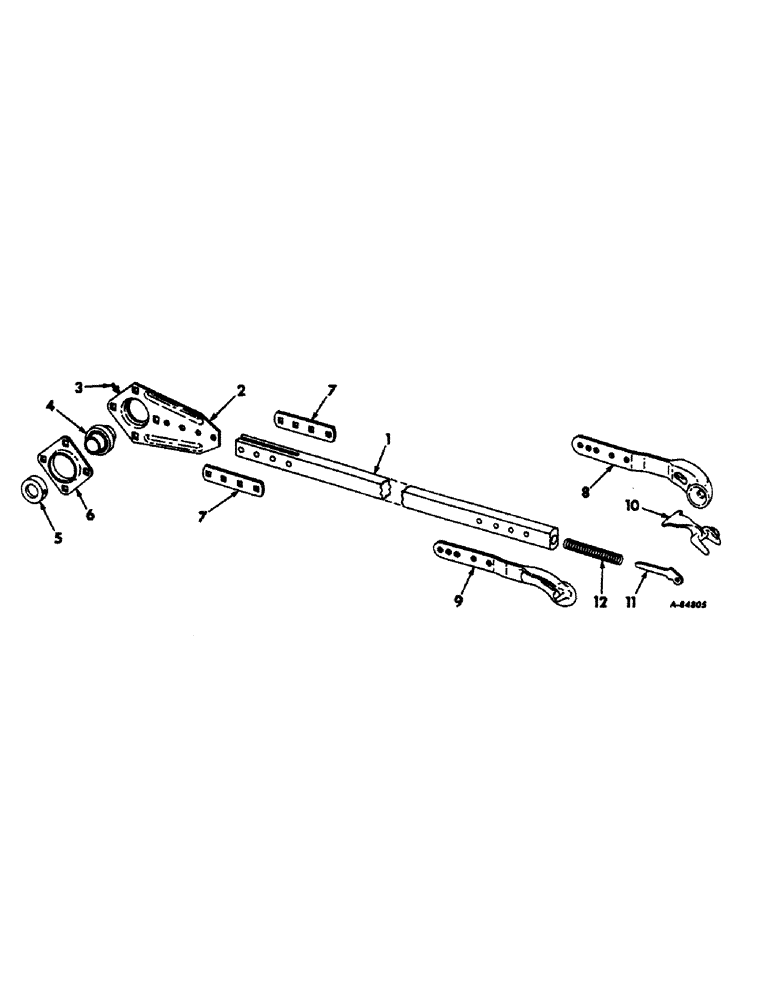

Запчасти Case IH 200 (F-06) - DRIVE, PITMAN

481167R91

PITMAN

ASSY

1шт.

1

481168R1

PITMAN

1шт.

2

481169R1

FLANGE

brg

1шт.

3

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self tapping

1шт.

4

670373R91

BALL BEARING,1.1255" ID x 62 mm OD x 1.4375"

ASSY, ball

1шт.

5

557115R11

COLLAR

COLLAR W/SET SCREW, brg

1шт.

6

462305R1

FLANGE

brg

1шт.

14991R1

BOLT

3/8 x 5/8 sq-nk crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

7

481170R1

BAR

STAP

2шт.

15053R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 sq-nk crg

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

17495R1

BOLT, 5/16 x 1-3/4 hex-hd mach

1шт.

8

MA1577

STRAP

front

1шт.

9

M1578

STRAP

rear

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

10

MC1579X

LATCH

FORK ASSY, latch

1шт.

Q3785

RIVET

latch fork

1шт.

11

MA1573

PLUNGER

spring

1шт.

12

MA1574

SPRING

plunger

1шт.
