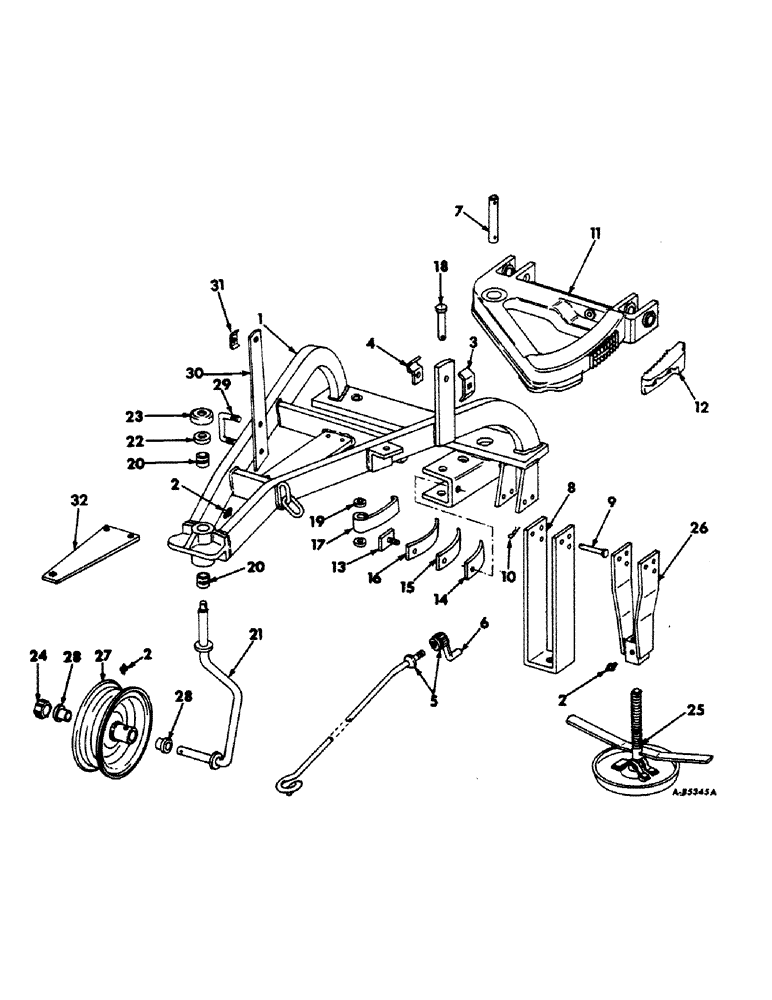

Запчасти Case IH 200 (F-02) - MAIN FRAME AND RELATED PARTS

1

481119R91

FRAME ASSY, main

1шт.

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 hex-hd cap

1шт.

586811R1

WASHER, 21/32 x 1-3/4 x 3 ga

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 1 ga

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 esna stop

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str lub

3шт.

3

481133R1

SUPPORT

CLAMP, hyd hose

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 C-Z sq-nk crg

1шт.

472144R1

NUT

3/8-16 C-Z 2-way lock

1шт.

4

M42726

SPRING, stay rod holder

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

1шт.

5

481135R11

ROD W/CRANK, stay

1шт.

6

M487

CRANK

stay rod

1шт.

7

481138R1

SHAFT, roller

1шт.

522473R1

WASHER

49/64 x 1-3/4 x 11 ga

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

8

481139R1

STAND, bracket

1шт.

17705R1

BOLT, 5/8 x 3-3/4 dld hex-hd mach

1шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11 slt hex.

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

9

453180R1

PIN, 5/8 x 3-7/16 std-hd

1шт.

10

520175R1

CLIP

PIN, quick attachable cot.

1шт.

11

481140R1

ARM, breakaway

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap

3шт.

137639

SCREW, 1/2-13 x 2-1/4 sq-hd cup-pt set

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

12

481141R1

SECTOR, lead

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 3/4 sq-nk crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x 11 ga

2шт.

13

481405R91

SCREW ASSY, adjustment

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 esna stop

1шт.

14

524452R1

VALVE SPRING

SPRING, helper upper

1шт.

15

524453R1

VALVE SPRING

SPRING, helper middle

1шт.

16

524454R1

VALVE SPRING

SPRING, helper lower

1шт.

17

524356R1

SPRING

trip

1шт.

18

W5262

HEADED PIN,3/4" x 3"

PIN, 3/4 x 3 std-hd

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

19

522904R1

WASHER, spring trip flat

2шт.

20

454154R1

BUSHING

caster wheel

2шт.

21

481187R11

AXLE ASSY, caster wheel

1шт.

69442D

NUT

3/4-10 slt jam hex.

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4 x 1-1/4 slotted spring

1шт.

482013R1

WASHER

1.141 x 1.56 x .12, on axle between coiled spring and wheel

1шт.

Q162

WASHER

1-5/32 x 1-3/4 x 16 ga, on axle between spacer and wheel, on axle between spacer and frame bracket

2шт.

575814R1

WASHER

25/32 x 2 x 11 ga, on axle between frame bracket and cupped washer

1шт.

22

465232R1

RUBBER WASHER

rubber

1шт.

23

465231R1

CUP WASHER

cupped axle

1шт.

24

481189R1

CAP

wheel hub

1шт.

25

465238R91

BASE

ASSY, swivel jack

1шт.

26

481197R91

STAND ASSY, swivel jack

1шт.

27

481891R91

WHEEL

W/BUSHINGS, 4.80 x 4.00-8 tires

1шт.

28

481892R1

BUSHING

BEARING, caster wheel

2шт.

29

651811R1

BOLT,U, 1/2" - 13 x 2 1/4"

-U, hose support

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

30

485732R1

BAR, hose support

1шт.

31

481133R1

SUPPORT

CLAMP, strap

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 sq-nk crg

1шт.

472144R1

NUT

3/8-16 C-Z 2-way lock

1шт.

32

485725R1

PLATE, caster wheel drawbar, for use w/hay conditioner

1шт.

17526R1

BOLT, 3/4 x 2 hex-hd mach

2шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert

2шт.
