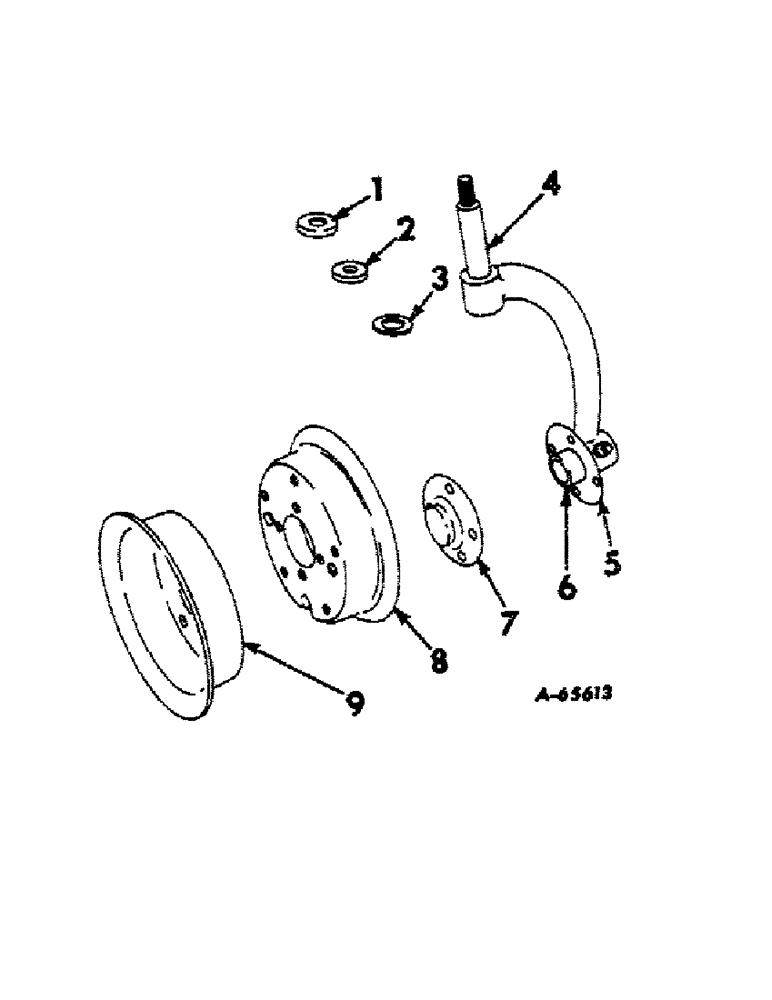

Запчасти Case IH 200 (F-14) - CASTER WHEEL, FOR USE W/HAY CONDITIONER

1

465231R1

CUP WASHER

cupped axle

1шт.

2

465232R1

RUBBER WASHER

rubber axle

1шт.

3

575814R1

WASHER

25/32 x 2 x 11 ga

1шт.

4

465228R91

AXLE

ASSEMBLY, caster wheel

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

69442D

NUT

slt hex. jam

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

102455

SWITCH

SCREW, 3/8-16 x 7/8 sq-hd ov-pt set

1шт.

551660R1

WASHER

1-5/8 x 2 x 16 ga

1шт.

5

465235R1

RETAINER

HOUSING, open bearing

1шт.

6

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

1шт.

7

465236R1

COVER

HOUSING, closed bearing

1шт.

102635

NUT,3/8"-16, G5

5шт.

NLS

NO LONGER SERVICED

5шт.

465466R1

WASHER, external tooth lock

10шт.

8

465233R1

WHEEL

DISK, w/out valve hole, wheel

1шт.

9

465234R1

WHEEL

DISK, with valve hole, wheel

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

TIRE, smooth tread implement, 4.00-8, 4 ply

1шт.

TUBE, pneumatic inner, 4.00-8 w/TR13CW valve

1шт.
