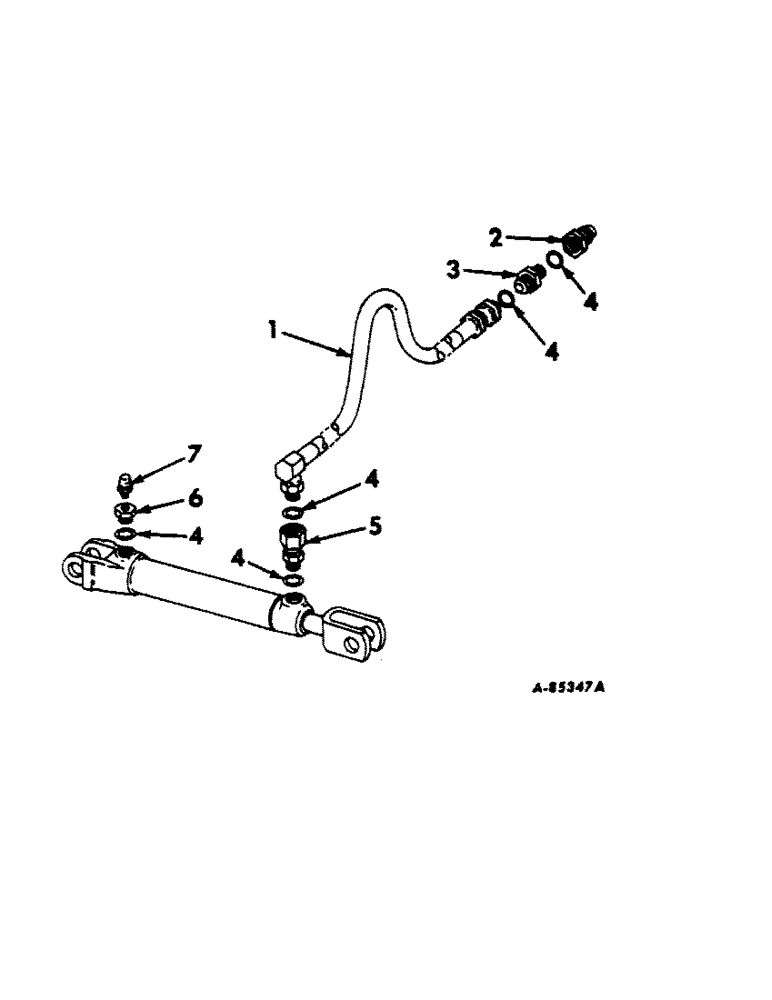

Запчасти Case IH 200 (F-13) - HYDRAULIC CYLINDER AND CONNECTIONS

381833R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. double acting hydraulic, for components see list of parts under details of hydraulic cylinder in section P

1шт.

371291R95

CYLINDER

ASSY, 2-1/2 x 8 in. double acting hydraulic, order cylinder assy, 145353C91, two adapters, 1252129C1 and two o-rings, 570828R1, for components see list of parts under details of hydraulic cylinders in section P

1шт.

381854R93

CYLINDER

ASSY, 3 x 8 in. double acting hydraulic, for components see list of parts under details of hydraulic cylinder in section P

1шт.

1

653338R91

HOSE, 1/2 ID x 76 in.

1шт.

2

395149R1

QUICK MALE COUPLING

COUPLING, 7/8-14 str self-sealing male

1шт.

3

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

hyd 37 deg flared, 7/8-14 thd steel C-Z

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

3шт.

5

526251R91

UNION

RESTRICTOR, swivel type

1шт.

5

484723R1

LOCK VALVE

RESTRICTOR, non swivel type

1шт.

6

481436R1

UNION, breather

1шт.

7

464989R1

VENT

BREATHER

1шт.

486024R91

OUTER SHOE WHEEL

1шт.
