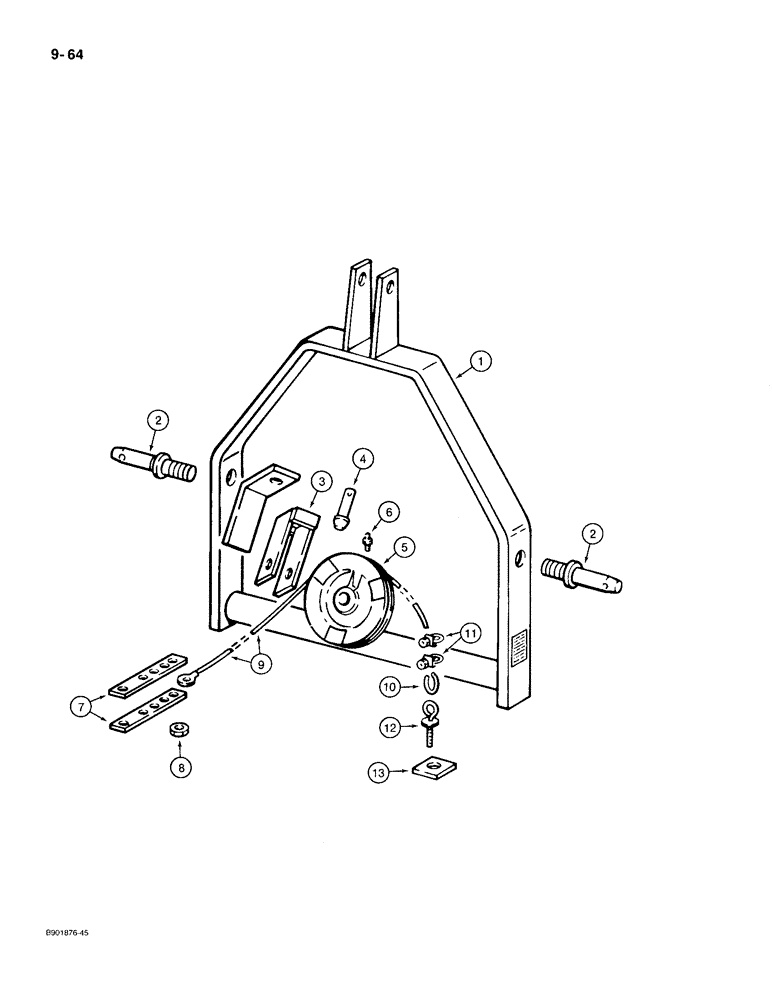

Запчасти Case IH 1300 (9-64) - THREE POINT HITCH WITH PULLEY, 1300 MOWER (09) - CHASSIS/ATTACHMENTS

1

101213C2

TRAILER HITCH

HITCH - three point

1шт.

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

This is bracket showing next to Ref. 3 that does not have a Ref number is NSS the weldment is P/N 101210c1 Can send a print to the dealer on this. This is a weldment of Ref. 1 P/N 101213c2.

1шт.

2

525921R1

STUD

PIN - link

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

425-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

3

135205C1

BRACKET

- lift

1шт.

4

101216C2

BOLT

- special

1шт.

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

1шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT - hex slotted, 1/2 inch NC

1шт.

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

5

101217C1

PULLEY

- cable

1шт.

22929R1

HEADED PIN,19.05mm OD x 66.67mm L

PIN, HEADED, 3/4" x 2 5/8"

1шт.

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

7

61704C1

BAR

- cable retaining

2шт.

21955R1

HEADED PIN,1/2" x 1 5/8"

PIN - clevis, 1/2 x 1-5/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

8

9413967

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

9

61705C1

CABLE

- three point hitch

1шт.

10

61706C1

CUP

RING - cable end

1шт.

11

552230R91

CLAMP

- 5/16 inch, includes nuts

2шт.

12

101211C1

BOLT

- eye, special

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

13

959047R1

SPACER

- square

1шт.
