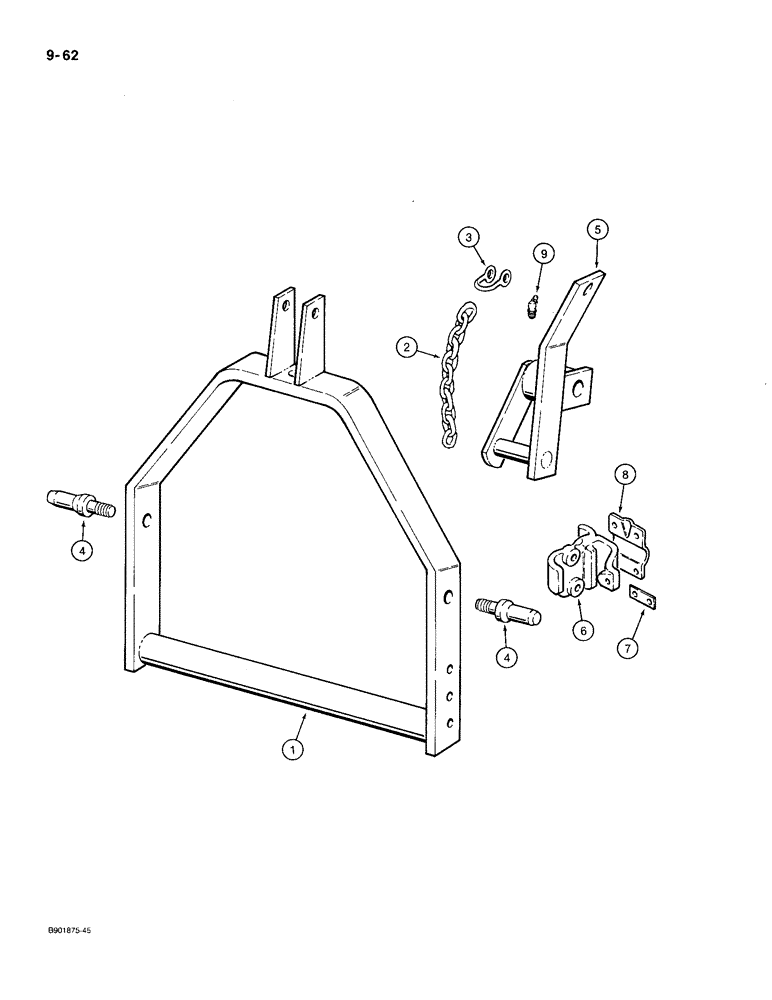

Запчасти Case IH 1300 (9-62) - THREE POINT HITCH WITH 15 LINK CHAIN, 1300 MOWER (09) - CHASSIS/ATTACHMENTS

1

489502R1

HITCH - three-point

1шт.

2

460890R1

CHAIN - 15 links

1шт.

3

455369R2

CLEVIS

- lift chain

2шт.

21931R1

PIN

- clevis, 1/2 x 1-7/8 inch

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN - clevis, 1/2 x 2 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

4

525921R1

STUD

PIN - link

2шт.

192-29

LOCK WASHER,7/8"

7/8"

2шт.

425-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

5

486743R1

LEVER

- lifting

1шт.

6

486742R2

BRACKET

- lever

1шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

- hex, 1/2 NC x 1-1/8 inch

1шт.

7

486750R1

SHIM

- .010 inch, bracket

1шт.

8

462736R1

CLAMP

- bracket

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

9

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease, 65 degree, 1/4 inch

1шт.
