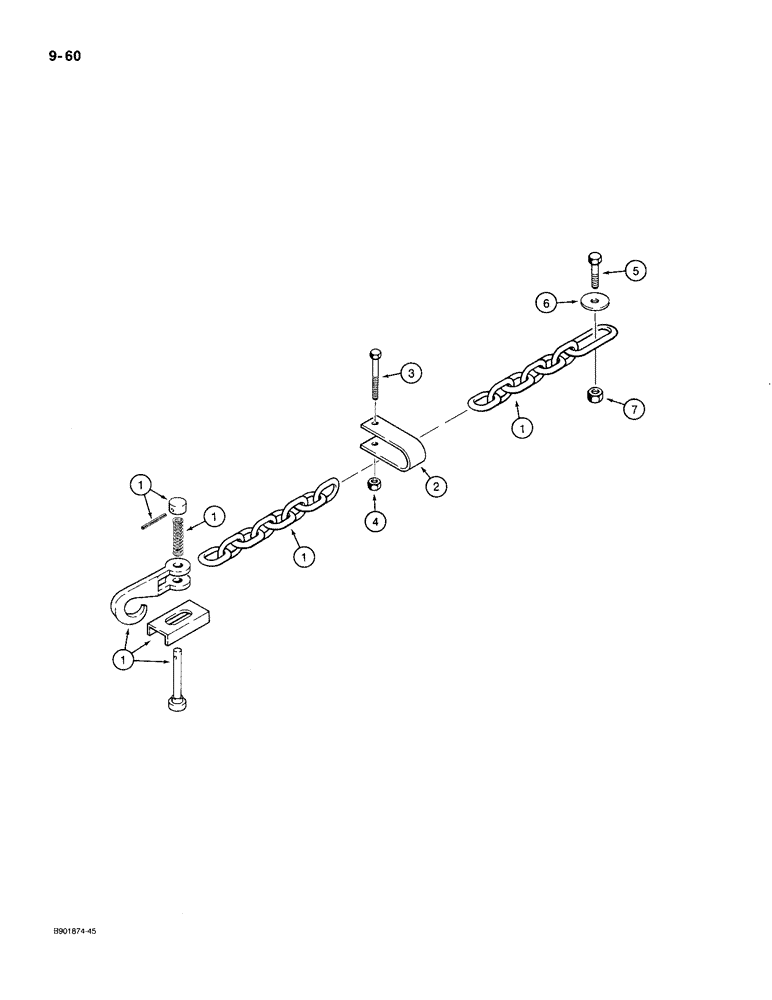

Запчасти Case IH 1300 (9-60) - SAFETY CHAIN (09) - CHASSIS/ATTACHMENTS

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety, 5/16 link x 59-1/4 inch

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - safety, includes hook, spring, and hook mounting parts

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, safety chain

1шт.

2

148558C1

CLEVIS

- safety chain

1шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

4

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

1шт.

5

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

6

195-2203

WASHER,21/32" x 2" x .238"

- flat, 21/32 x 2 x 1/4 inch

1шт.

7

22244R1

LOCK NUT

- hex lock, 3/4 inch NC

1шт.
