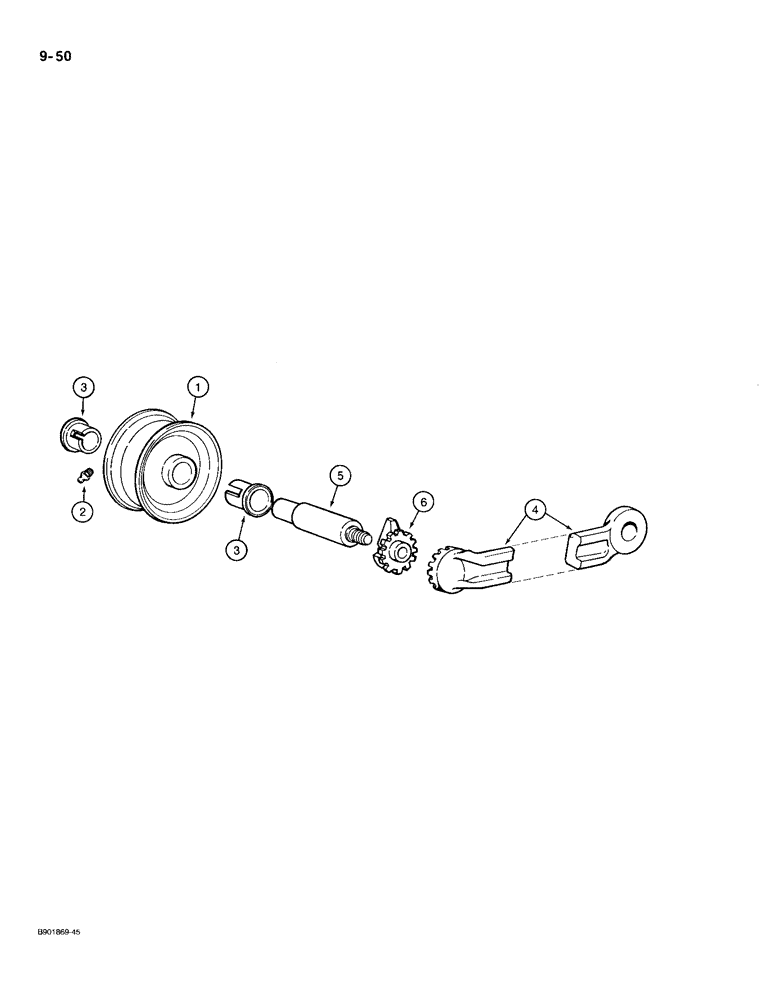

Запчасти Case IH 1300 (9-50) - OUTER SHOE WHEEL (09) - CHASSIS/ATTACHMENTS

486024R91

WHEEL ASSEMBLY - outer shoe

1шт.

453124R93

WHEEL ASSEMBLY - semi-pneumatic tire

1шт.

1

NSS

NOT SOLD SEPARAT

WHEEL - outer shoe

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

3

481892R1

BUSHING

BEARING - wheel

2шт.

4

M2452X

ARM - outer shoe wheel

1шт.

Q584

BOLT - special, 1/2 NC x 1-7/8 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

5

M32048

STUD

- wheel

1шт.

M153M

NUT

- 5/8 inch NC

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

6

Z852

ADJUSTER

- wheel

1шт.

53324H

WASHER

- flat, 21/32 x 1-5/8 x 1/8 inch

1шт.

495-81189

WASHER,1.16" ID x 1.75" OD x 0.03" Thk

- flat, 1-5/32 x 1-3/4 x 1/32 inch

1шт.
