(9-46) - NINE FOOT KNIVES AND SECTIONS, KNIVES WITH HEAVY UNDERSERRATED SECTIONS

Запчасти Case IH 1300 (9-46) - NINE FOOT KNIVES AND SECTIONS, KNIVES WITH HEAVY UNDERSERRATED SECTIONS (09) - CHASSIS/ATTACHMENTS

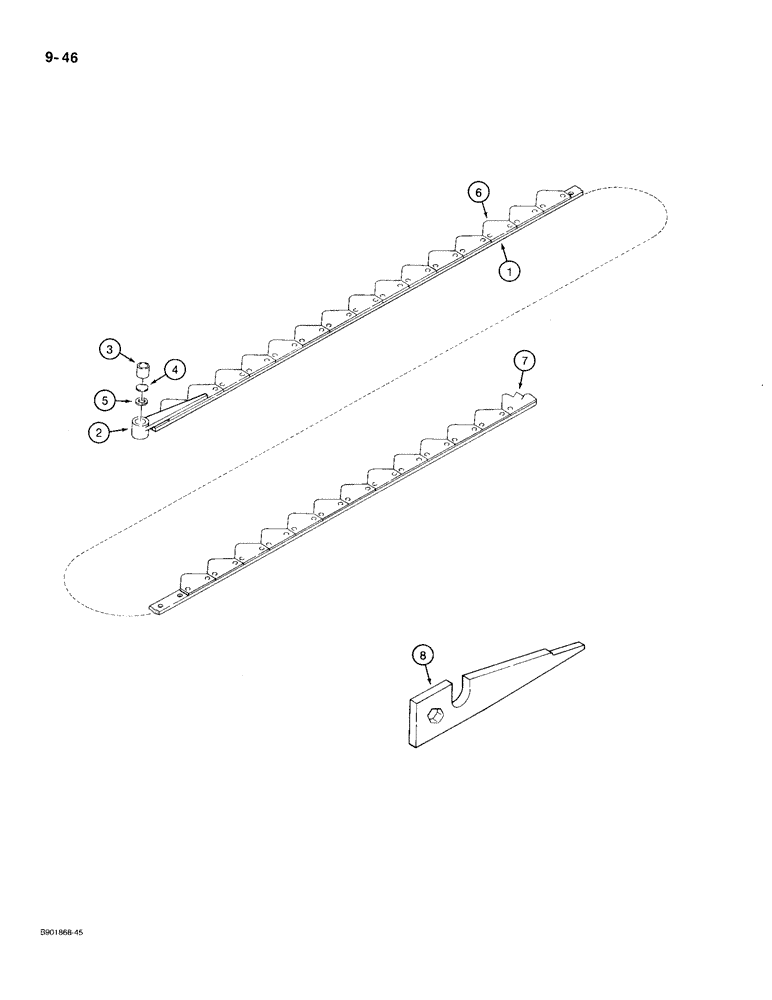

Схема запчастей Case IH 1300 - (9-46) - NINE FOOT KNIVES AND SECTIONS, KNIVES WITH HEAVY UNDERSERRATED SECTIONS (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

463159R93

KNIFE

ASSEMBLY - with heavy underserrated sections

1шт.

1

NSS

NOT SOLD SEPARAT

KNIFE - 9 foot

1шт.

2

56692C91

PITMAN

HEAD ASSEMBLY - knife

1шт.

3

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING - knife head

1шт.

4

458972R1

PLUG

- knife head

1шт.

5

544553R1

SEALING WASHER

- seal

1шт.

6

826722C1

KNIFE SECTION

SECTION - heavy underserrated

35шт.

7

467456R11

KNIFE SECTION

SECTION - end, regular underserrated triplet, chrome plated, includes rivets

1шт.

14768R1

RIVET - oval head, No. 5-1/2 x 1 inch Oval Hd, .211" x 1"

1шт.

1980897C1

RIVET

- oval head, No. 5-1/2 x 5/8 inch

1шт.

MB133

RIVET

- oval head, No. 5-1/2 x 5/8 inch, chrome plated

1шт.

991059R91

RIVET

- oval head, No. 6 x 5/8 inch, if used

1шт.

1281291C92

KNIFE

ASSEMBLY - with heavy overserrated sections

1шт.

1

NSS

NOT SOLD SEPARAT

KNIFE - 9 foot, with heavy overserrated sections

1шт.

2

56692C91

PITMAN

HEAD ASSEMBLY - knife, with heavy overserrated sections

1шт.

3

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING - knife head, with heavy overserrated sections

1шт.

4

458972R1

PLUG

- knife head, with heavy overserrated sections

1шт.

5

544553R1

SEALING WASHER

- seal, knives with heavy overserrated sections

1шт.

6

826720C2

KNIFE SECTION

SECTION - heavy overserrated, knives

35шт.

7

467455R1

KNIFE SECTION

SECTION - end, smooth heavy triplet, chrome plated includes rivets, knives

1шт.

14768R1

RIVET - oval head, No. 5-1/2 x 1 inch, knives w/ heavy overserrated sections Oval Hd, .211" x 1"

1шт.

1980897C1

RIVET

- oval head, No. 5-1/2 x 5/8 inch, knives with heavy overserrated sections

1шт.

MB133

RIVET

- oval head, No. 5-1/2 x 5/8 inch, chrome plated, knives w/ heavy overserrated sections

1шт.

991059R91

RIVET

- oval head, No. 6 x 5/8 inch, if used, knives with heavy overserrated sections

1шт.

8

469975R3

GAUGE

- guard lip and knife pin, chromium plated

1шт.
