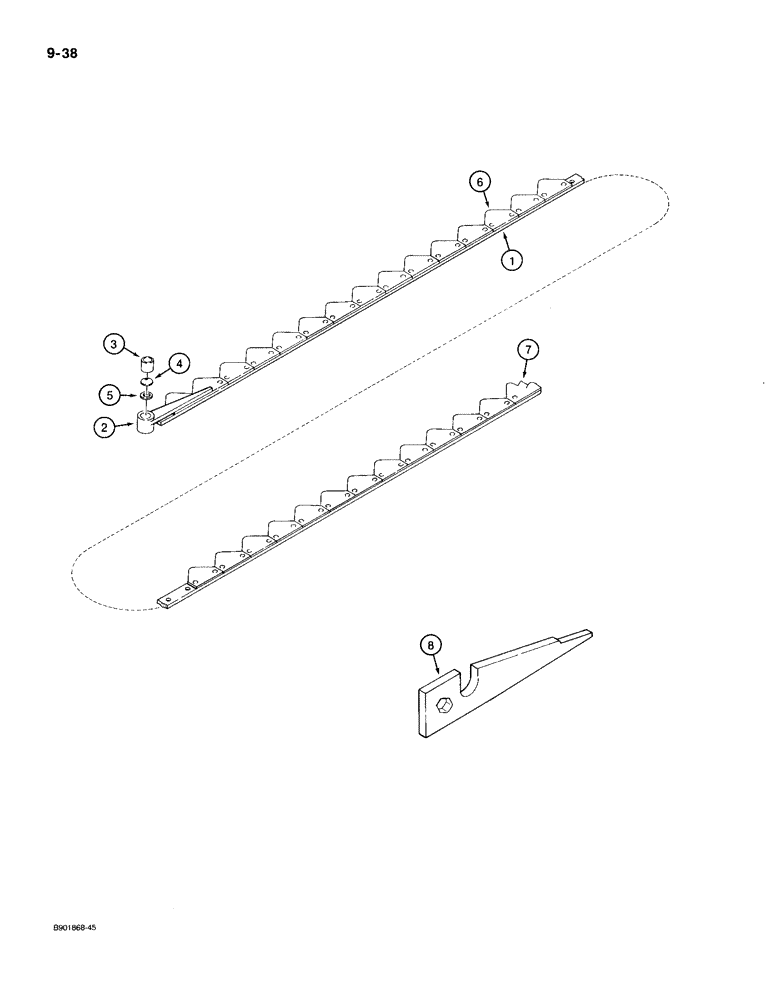

Запчасти Case IH 1300 (9-38) - SEVEN FOOT KNIVES AND SECTIONS, KNIVES WITH UNDERSERRATED SECTIONS (09) - CHASSIS/ATTACHMENTS

458968R93

KNIFE

ASSEMBLY - with underserrated sections

1шт.

1

NSS

NOT SOLD SEPARAT

KNIFE - 7 foot

1шт.

2

56692C91

PITMAN

HEAD ASSEMBLY - knife

1шт.

3

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING - knife head

1шт.

4

458972R1

PLUG

- knife head

1шт.

5

544553R1

SEALING WASHER

- seal

1шт.

6

826723C1

KNIFE SECTION

SECTION - regular underserrated

27шт.

7

467458R1

X

SECTION - end, regular underserrated triplet, chrome plated includes rivets

1шт.

14768R1

RIVET - oval head, No. 5-1/2 x 1 inch Oval Hd, .211" x 1"

1шт.

990817R91

RIVET

- oval head, No. 5-1/2 x 9/16 inch, pkg of 130

1шт.

1980897C1

RIVET

- oval head, No. 5-1/2 x 5/8 inch

1шт.

991059R91

RIVET

- oval head, No. 6 x 5/8 inch

1шт.

462381R93

KNIFE

ASSEMBLY - with heavy smooth sections

1шт.

1

NSS

NOT SOLD SEPARAT

KNIFE - 7 foot, with heavy smooth sections

1шт.

2

56692C91

PITMAN

HEAD ASSEMBLY - knife - with heavy smooth sections

1шт.

3

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING - knife head, with heavy smooth sections

1шт.

4

458972R1

PLUG

- knife head, with heavy smooth sections

1шт.

5

544553R1

SEALING WASHER

- seal, knives with heavy smooth sections

1шт.

6

826724C1

KNIFE SECTION

SECTION - smooth heavy, knives

27шт.

7

467455R1

KNIFE SECTION

SECTION - end, smooth heavy knives, triplet, chrome plated includes rivets

1шт.

14768R1

RIVET - oval head, No. 5-1/2 x 1 inch, knives w/ smooth heavy sections Oval Hd, .211" x 1"

1шт.

1980897C1

RIVET

- oval head, No. 5-1/2 x 5/8 inch, knives w/ heavy smooth sections

1шт.

MB133

RIVET

- oval head, No. 5-1/2 x 5/8 inch, chrome plated, knives w/ heavy smooth sections

1шт.

991059R91

RIVET

- oval head, No. 6 x 5/8 inch, knives w/ heavy smooth sections

1шт.

8

469975R3

GAUGE

- guard lip and knife pin, chromium plated

1шт.
