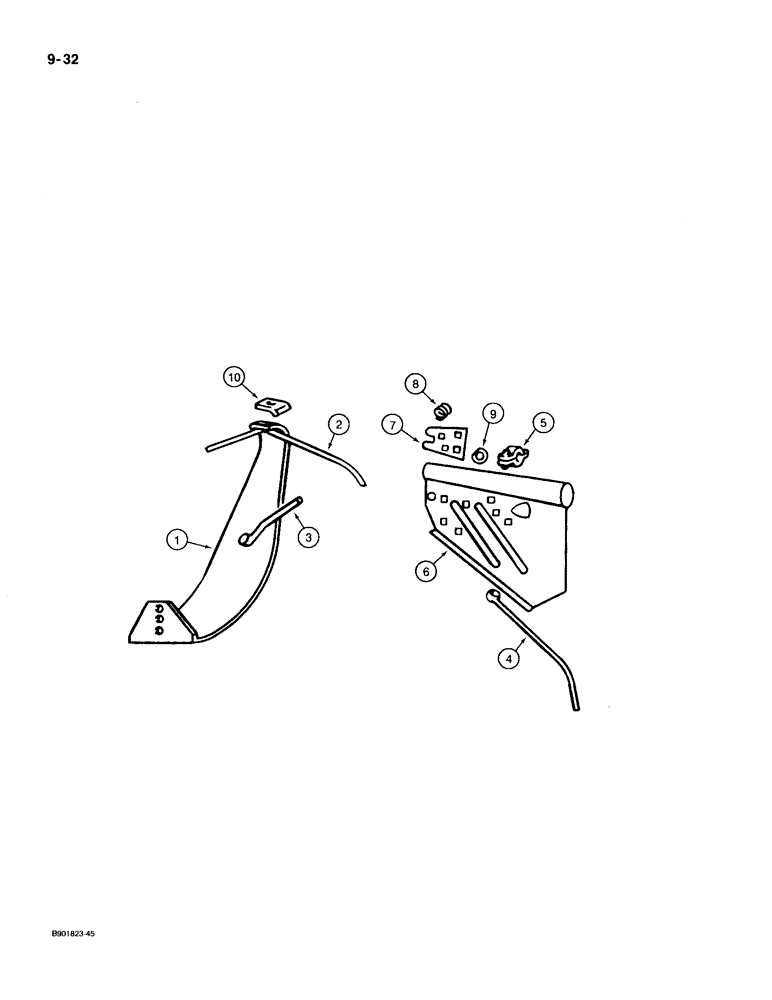

Запчасти Case IH 1300 (9-32) - INNER SHOE SOLE AND GRASS DEFLECTOR (09) - CHASSIS/ATTACHMENTS

1

458966R1

SOLE

- inner shoe, divider type, 1100 mower

1шт.

If dealer is looking for a formed board 18" long bolted to Ref. 1 - someone has added this years ago we used this the number is mb1051. We strongly recommend using the metal one shown in the catalog.

1шт.

1

462743R1

SOLE

- inner shoe, stub type, 1300 mower

1шт.

If dealer is looking for a formed board 18" long bolted to Ref. 1 - someone has added this years ago we used this the number is mb1051. We strongly recommend using the metal one shown in the catalog.

1шт.

412-820

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/4", Gr 2

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 2, 1100 mower, prior to SN 030001, if used, and 1300 mower, prior to SN 030401, if used

1шт.

412-824

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 2

BOLT - carriage, 1/2 NC x 1-1/2 inch, grade 2, 1100 mower, prior to SN 030001, if used, and 1300 mower, prior to SN 030401, if used

1шт.

411-828

BOLT - carriage, 1/2 NC x 1-3/4 inch, grade 2, 1100 mower, SN 030001 through SN 030570; 1300 mower, SN 030401 and after

1шт.

412-832

BOLT - carriage, 1/2 NC x 2 inch, grade 2, 1100 mower, SN 030571 and after

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

2

458967R1

ROD

- inner shoe, upper grass, 1100 mower

1шт.

2

462744R1

ROD

- inner shoe, upper grass, stub type, 1300 mower

1шт.

3

461281R1

ROD

- inner shoe lower grass

1шт.

4

489536R1

ROD

- grass deflector

1шт.

143245R1

BOLT - carriage, 3/8 NC x 1-1/2 inch

1шт.

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

5

489537R1

CLAMP

- grass rod

1шт.

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch, grade 2

1шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

6

489535R1

DEFLECTOR

- grass

1шт.

7

489538R1

SUPPORT

- grass deflector

1шт.

605449R1

BOLT

- carriage, 3/8 NC x 3/4 inch

4шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

8

M1015

SPRING

- grass rod tension

1шт.

18942R1

BOLT,1/2" - 13 x 3", Gr 2

- square head, 1/2 NC x 3 inch

1шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

1шт.

231-1448

NUT,1/2"-13, GB

- 1/2 inch NC, with nylon insert

1шт.

9

489486R1

STRIP

DAMPENER - grass rod

1шт.

10

461383R1

CLAMP

CLIP - grass rod

1шт.
