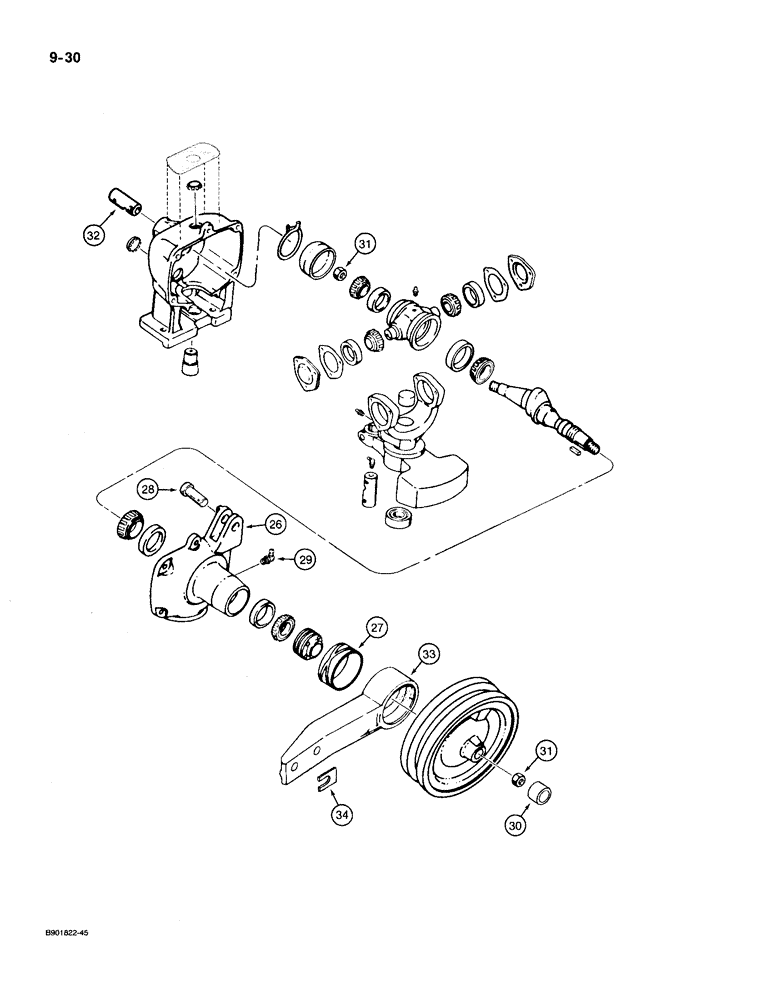

Запчасти Case IH 1300 (9-30) - BALANCE HEAD ACTUATOR AND FLYWHEEL PULLEY (09) - CHASSIS/ATTACHMENTS

26

478797R91

HOUSING

ASSEMBLY - shaft, wrist action

1шт.

27

467215R1

BUSHING,82.44mm ID x 87.15mm OD x 41.15mm L

- rear shaft housing

1шт.

28

519416R1

HEADED PIN,3/4" x 2 5/16"

PIN - 3/4 x 2-5/16 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

29

461252R1

FITTING

- grease, 30 degree, 1/8-27 PT

1шт.

30

222689C1

HOSE

- balanced head drive shaft shield

1шт.

31

254771R1

NUT

- hex, 3/4 inch NF, wrist action shaft

2шт.

Part of service wrist action shaft, kit P/N 479342R94 (1) each of 458971R1 bushing, 425-117 and 254485R1 nuts, 14-736 bolt, and 585556R1 washer, (2) 462799R1 washers and instructions

1шт.

32

487051R1

SHAFT

- front hinge

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

432-2036

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.

33

467216R1

ARM

HINGE - rear

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

34

ZA521035

SHIM

- rear hinge

1шт.

2750687R3

DECAL

- Important, grease information, shown on page 9-77, item 4

1шт.

479342R94

KIT

- service, wrist action shaft, Includes Ref. 31 on page 9-29 and this page, along with (1) each of 458971R1 bushing, 425-117 and 254485R1 nuts, 14-736 bolt, and 585556R1 washer, (2) 462799R1 washers and instructions

1шт.

461851R1

BLOCK

KIT - test, runout check block

1шт.
