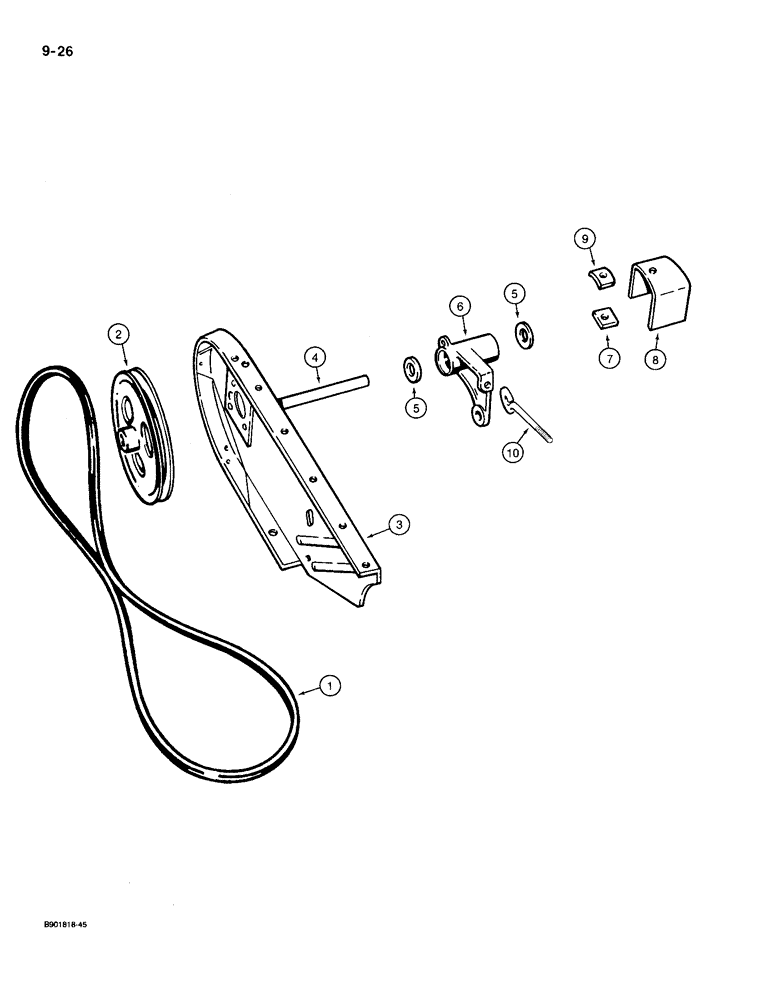

Запчасти Case IH 1300 (9-26) - DRIVE SHAFT HOUSING, PULLEY, V-BELT AND SHIELDS (09) - CHASSIS/ATTACHMENTS

1

558141R1

V-BELT,0.88" W x 105.20" L

Knife drive 0.88" W x 105.20" L

1шт.

2

ZA521099

PULLEY

- drive

1шт.

22963R1

HEADED PIN,5/16" x 2 1/4"

PIN - clevis, 5/16 x 2-1/4 inch

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

3

REF

INSTRUCTION

SHIELD - drive, see page 9-21, item 3

1шт.

4

456571R3

SHAFT

- drive pulley

1шт.

Q1444

KEY,1/4" Sq x 7/8", Par

- square, parallel, 1/4 x 1/4 x 7/8 inch

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

5шт.

495-81072

WASHER,1 1/32" x 1 3/4" x .030"

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

19712R1

PIN,3/16" x 2 1/4", Coiled

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

shear 5/16" x 2 1/4", Coiled

1шт.

5

ST208B

BALL BEARING,25mm ID x 52mm OD x 15mm W

BEARING - ball, shaft

2шт.

6

458908R3

HOUSING

- drive shaft

1шт.

219-30

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

7

489494R1

STRIP

BAR - PTO shield dampener

1шт.

8

489493R1

SHIELD

- PTO

1шт.

9

489495R1

SUPPORT

- shield

1шт.

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch, grade 2

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

10

10400F

BOLT

EYEBOLT - belt adjusting

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
