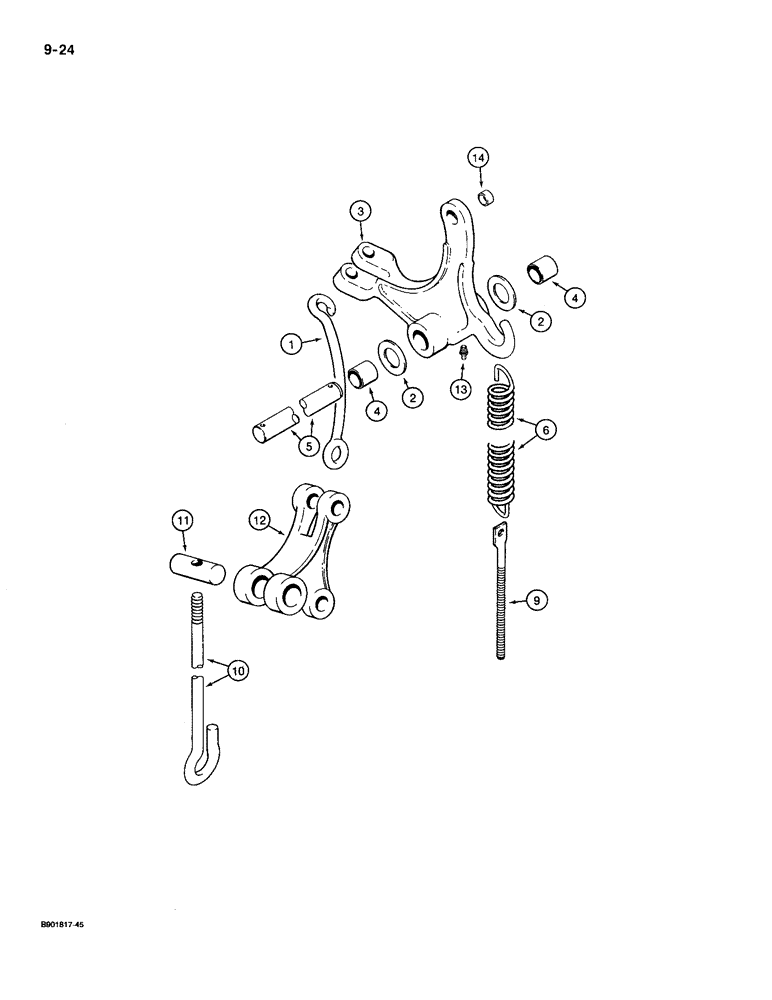

Запчасти Case IH 1300 (9-24) - BELLCRANK, GAG AND LIFT LEVER, AND BALANCING SPRING (09) - CHASSIS/ATTACHMENTS

1

458912R2

ROD

- bellcrank lift

1шт.

2

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch

2шт.

465245R11

LEVER

BELLCRANK ASSEMBLY - includes bushing

1шт.

3

NSS

NOT SOLD SEPARAT

BELLCRANK - mower

1шт.

4

454154R1

BUSHING

- bellcrank, shaft end

2шт.

22093R1

PIN - clevis, 3/4 x 2-11/16 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

5

458911R1

PIN,28.57mm OD x 219.07mm L

SHAFT - bellcrank

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

432-2428

COTTER PIN,3/8" x 1 3/4"

Pin, Split (Cotter), 3/8" x 1 3/4"

1шт.

6

59323C1

SPRING

- cutter bar balancing, 49-1/2 coils, replaces MA22110 spring and M1425 plug by also ordering 59324C1 bolt and attaching hardware, see below

1шт.

9

59324C1

BOLT,Eye, 1/2" - 13 x 4.8"

- special, square head, 1/2 NC x 6 inch, replaces Q822, spring adjuster

1шт.

1253645C1

SQUARE NUT

- square, 1/2 inch NC, special

2шт.

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

- flat, 17/32 x 1-3/4 x 11/64 inch

1шт.

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch

1шт.

10

458915R1

BOLT

ROD - gag

1шт.

425-1010

NUT,5/8"-11, G5

2шт.

11

458914R1

PIN

PIVOT - gag rod

1шт.

12

458913R1

LEVER

- gag and lift

1шт.

21947R1

HEADED PIN,3/4" x 2 5/8"

PIN - clevis, 3/4 x 2-5/8 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

14

465986R1

BUSHING

- bellcrank

1шт.
