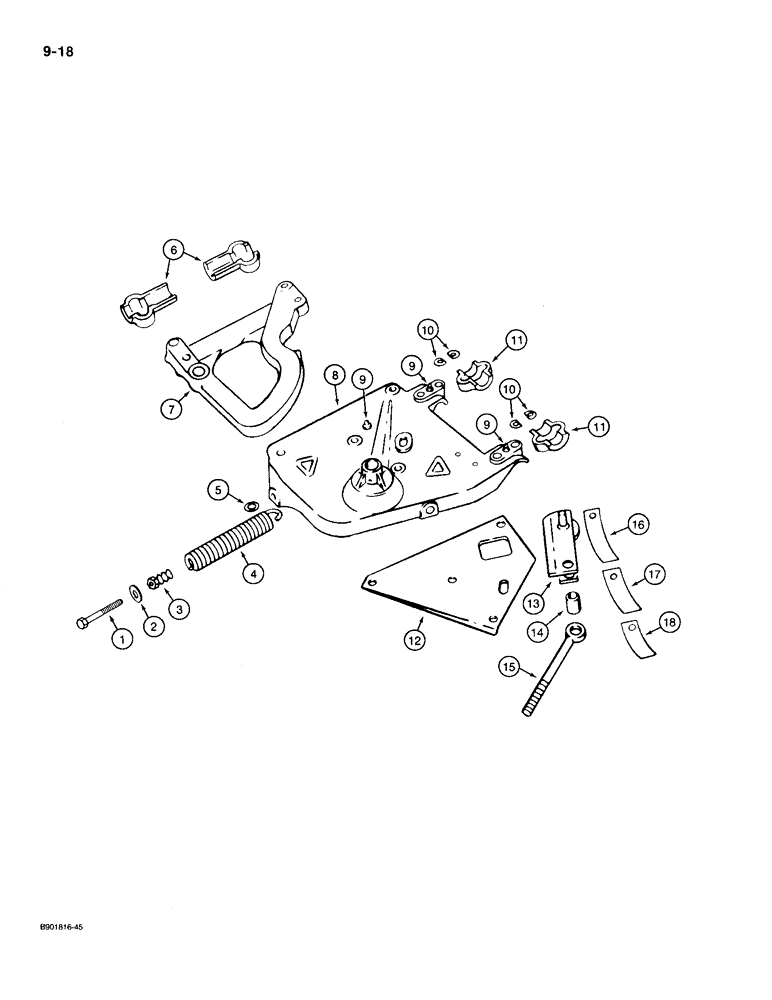

Запчасти Case IH 1300 (9-18) - PIVOT FRAME, BREAKAWAY ARM AND LATCH SUPPORT PLATE (09) - CHASSIS/ATTACHMENTS

1

570640R1

BOLT (SPREADER),Adj, Hex, 1/2" - 13 x 4", Full Thd

BOLT - hex, 1/2 NC x 4 inch, special, spring adjusting

2шт.

1253645C1

SQUARE NUT

- square, 1/2 inch NC, special

1шт.

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch

1шт.

2

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.

3

M1425

PLUG

- spring

2шт.

4

PO199A

SPRING

- breakaway latch, 25 coils

1шт.

5

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch

2шт.

6

489480R1

CAP

- breakaway arm

2шт.

413-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

- hex, 5/8 NC x 5-1/4 inch

4шт.

20033R1

LOCK NUT

NUT - hex, self-locking, 5/8 inch NC

4шт.

7

458891R2

ARM

- breakaway

1шт.

8

458888R2

FRAME

- pivot

1шт.

424-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 2

- hex, 5/8 NC x 3 inch, grade 2

4шт.

424-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 2

- hex, 5/8 NC x 3-1/4 inch, grade 2

1шт.

425-1010

NUT,5/8"-11, G5

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

3шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

3шт.

10

458890R1

SHIM

- pivot frame

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- hex, 5/8 NC x 4-1/4 inch, (2) used on models with hay conditioner, (4) used on models without hay conditioner

2-4шт.

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch, use on models with hay conditioner only

2шт.

20033R1

LOCK NUT

NUT - hex, self-locking, 5/8 inch NC

4шт.

11

458889R1

CAP

- pivot frame

2шт.

12

458906R2

PLATE

- latch support

1шт.

13

462764R93

PULLEY

ROLLER - breakaway latch

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

14

459396R2

BUSHING

- latch strap pivot

1шт.

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 3/32 inch

2шт.

15

458907R1

BOLT

EYEBOLT - lead adjustment

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

16

490529R1

SPRING

- front leaf

1шт.

17

524453R1

VALVE SPRING

SPRING - middle helper

1шт.

18

524452R1

VALVE SPRING

SPRING - rear helper

1шт.

414-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- hex, 1/2 NF x 2 inch

1шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- hardened

1шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

1шт.

144421H

LOCK NUT,1/2" - 20, GB

NUT - hex, self-locking, 1/2 inch NF

1шт.
