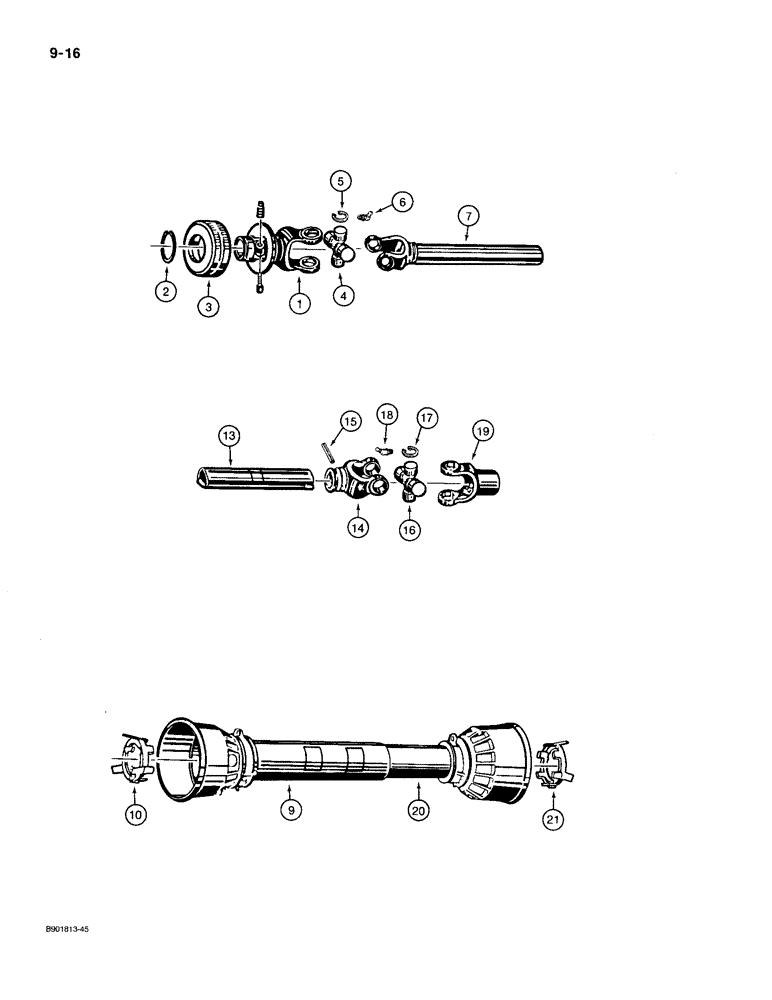

Запчасти Case IH 1300 (9-16) - POWER DRIVE EQUIPMENT, 1300 MOWER, SERIAL NUMBER 031905 AND AFTER, P.I.N. CCB0005501 AND AFTER (09) - CHASSIS/ATTACHMENTS

ZA522590

JOINT ASSY.

SHAFT ASSEMBLY - drive, P.T.O., shielded, front half

1шт.

ZA522537

YOKE

ASSEMBLY - outer

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE - outer

1шт.

2

1960446C1

RING

- retaining

1шт.

3

1960445C1

COLLAR

- twist

1шт.

ZA522534

KIT

- universal joint, journal and bearing

1шт.

4

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

5

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

6

ZA210343

NIPPLE, LUBE

FITTING - grease

1шт.

7

ZA522551

TUBE

SHAFT - front drive, outer

1шт.

8

1326528C1

DECAL

- Danger, drive shaft, shown on page 9-77, item 12

1шт.

ZA522588

SHIELD

ASSEMBLY - front half, drive shaft

1шт.

9

NSS

NOT SOLD SEPARAT

SHIELD - front half

1шт.

10

ZA522542

BEARING

- shield

1шт.

11

700707960

DECAL

- Danger, shield, shown on page 9-77, item 11

1шт.

12

96335C1

PRODUCT GRAPHIC

DECAL - Warning, shield, shown on page 9-77, item 2

1шт.

ZA522587

JOINT ASSY.

SHAFT ASSEMBLY - drive, P.T.O., shielded, rear half

1шт.

13

ZA522552

TUBE

SHAFT - drive, rear half

1шт.

14

ZA522540

YOKE

- pinned, inner

1шт.

15

ZA522539

PIN

- roll, inner yoke

1шт.

ZA522534

KIT

- universal joint, journal and bearing

1шт.

16

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

17

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

18

ZA210343

NIPPLE, LUBE

FITTING - grease

1шт.

19

ZA522553

YOKE

- spline, outer

1шт.

ZA522592

SHIELD

ASSEMBLY - rear half

1шт.

20

NSS

NOT SOLD SEPARAT

SHIELD - rear half

1шт.

21

ZA522543

BEARING WASHER

BEARING - rear shield

1шт.
